Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
MDL3500W

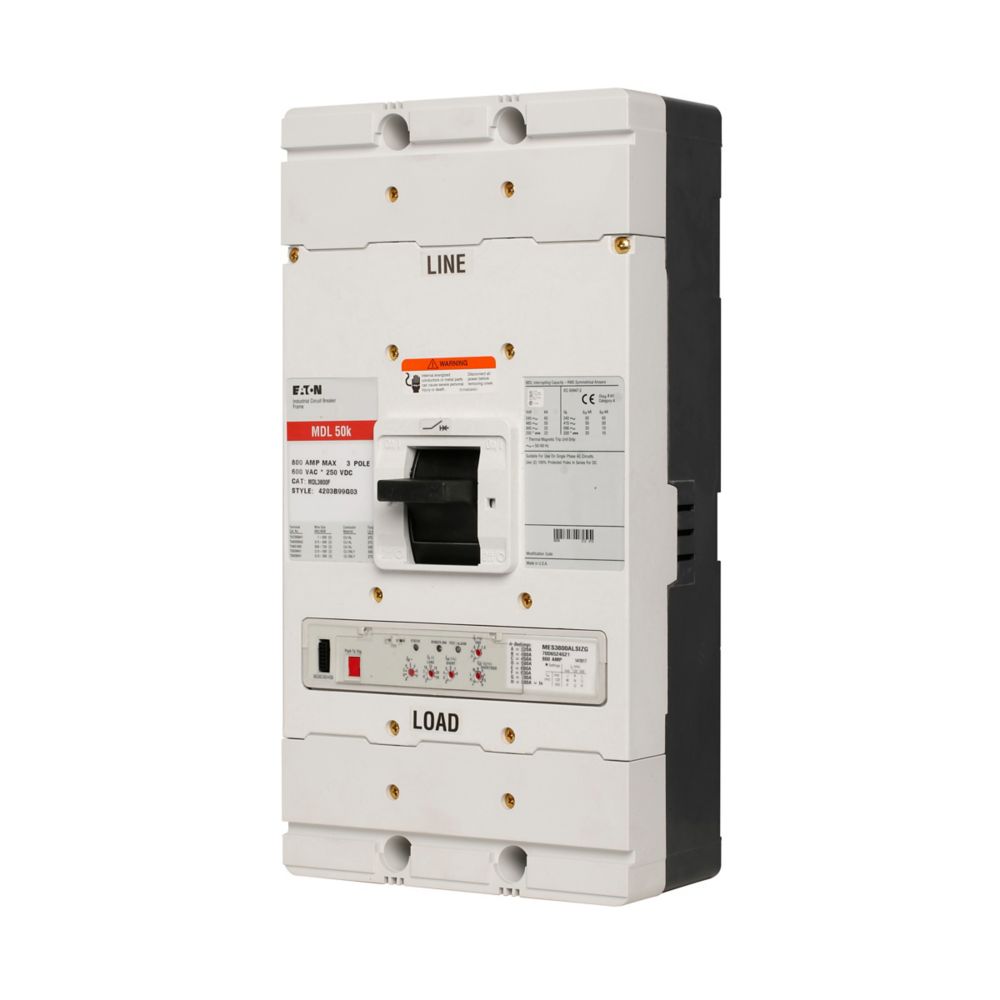

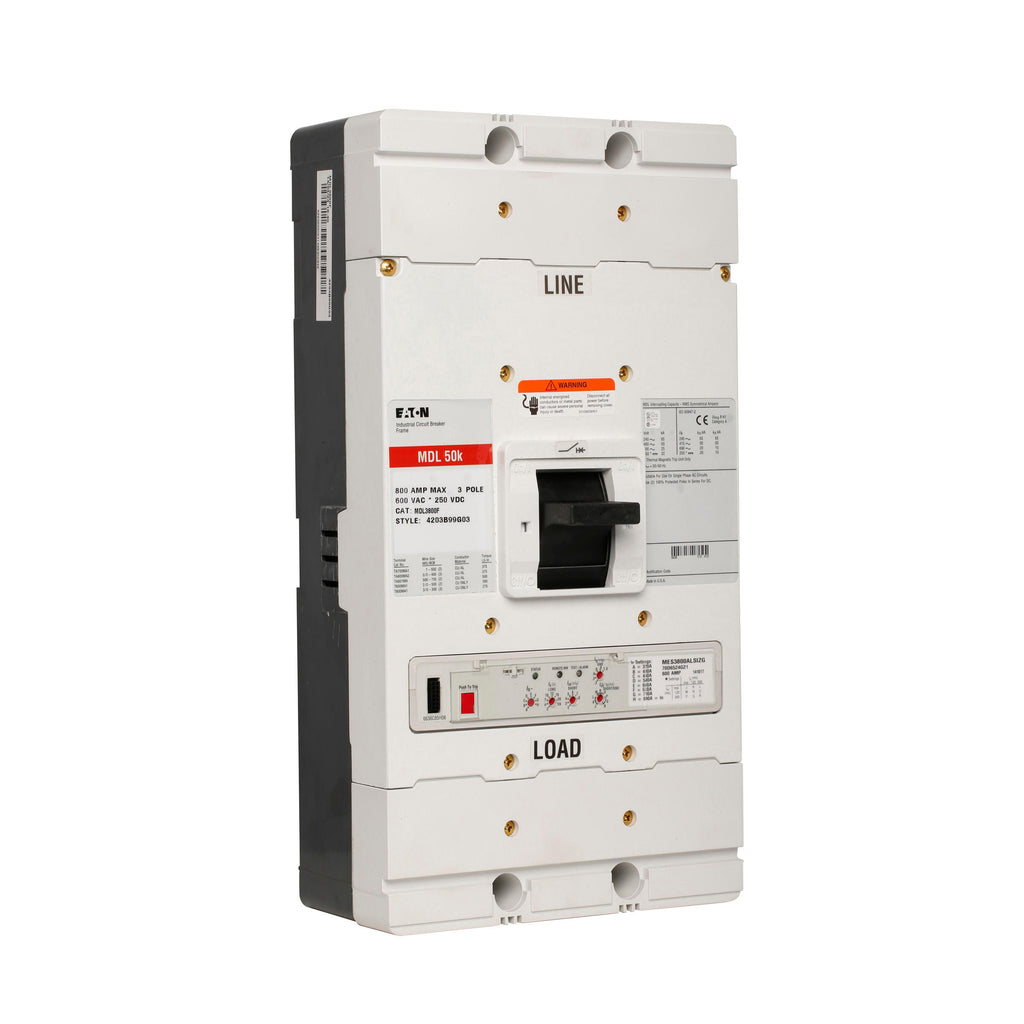

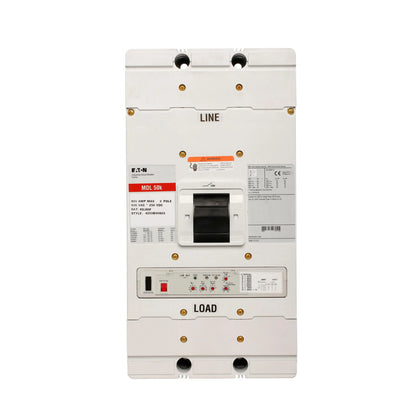

MDL3500W is a 500 Amp, 600 Vac, 3-pole molded case circuit breaker from Eaton's Series C MDL frame lineup.This Eaton MDL3500W circuit breaker features a fixed thermal and fixed magnetic trip type (T186) designed for reliable protection in low voltage distribution systems. It supports 50/60 Hz frequency and has an interrupt rating of 65 kAIC at 240 Vac and 50 kAIC at 480 Vac. The breaker is UL Listed and suitable for both AC and DC applications up to 250 Vdc.
- Key Specifications
- Amperage Rating: 500 A
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: Three-pole
- Frame Type: MDL
- Series: Series C
- Trip Type: Fixed thermal, fixed magnetic (T186)
- Interrupt Rating: 65 kAIC at 240 Vac, 50 kAIC at 480 Vac
- Frequency: 50 to 60 Hz
- Certifications: UL Listed
- Part Number: MDL3500W
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : MDL
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
- Weight : 33
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
