Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
MDL3400

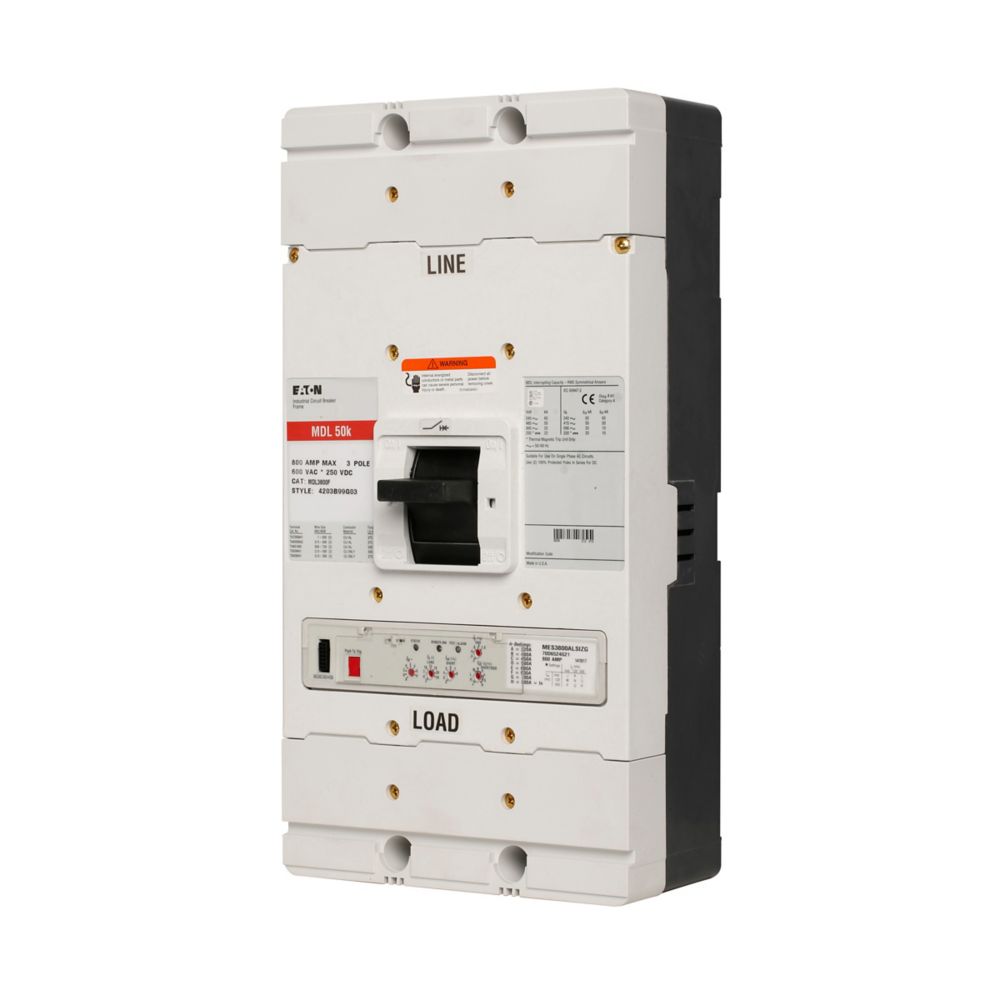

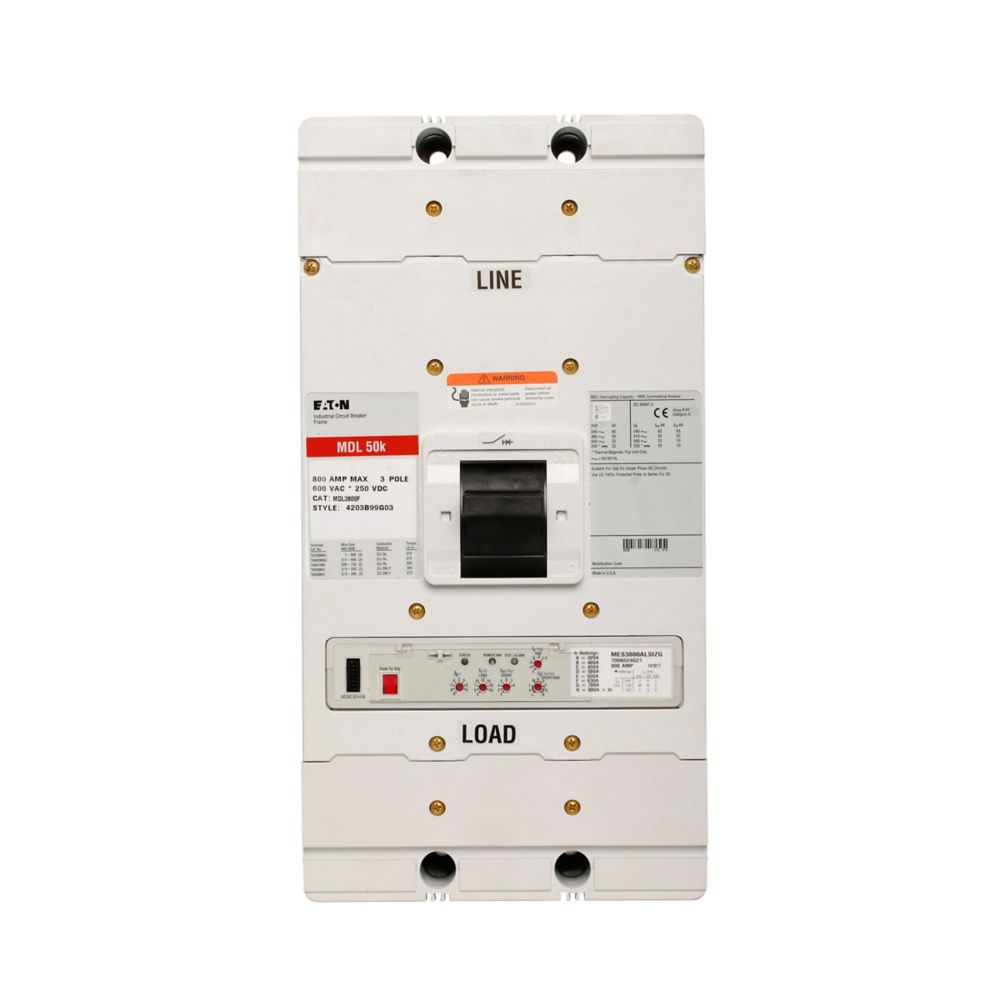

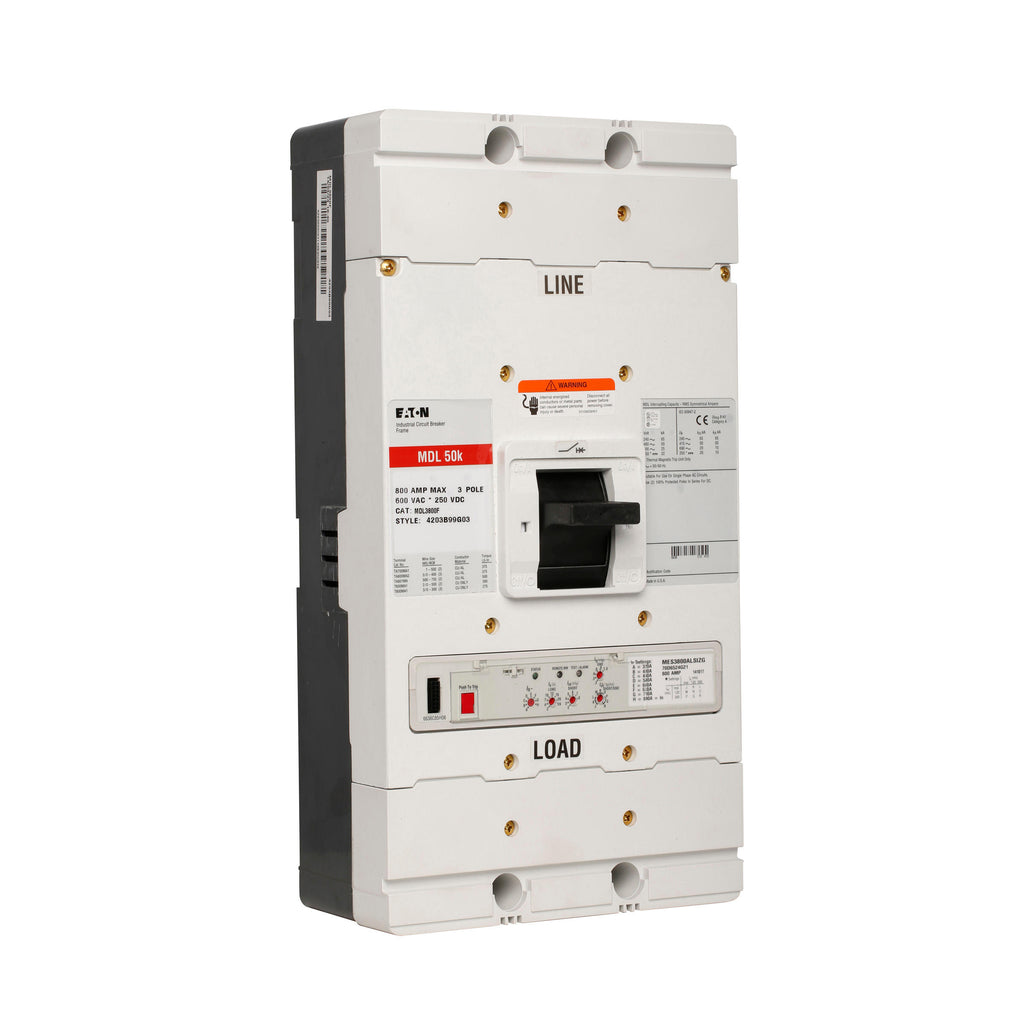

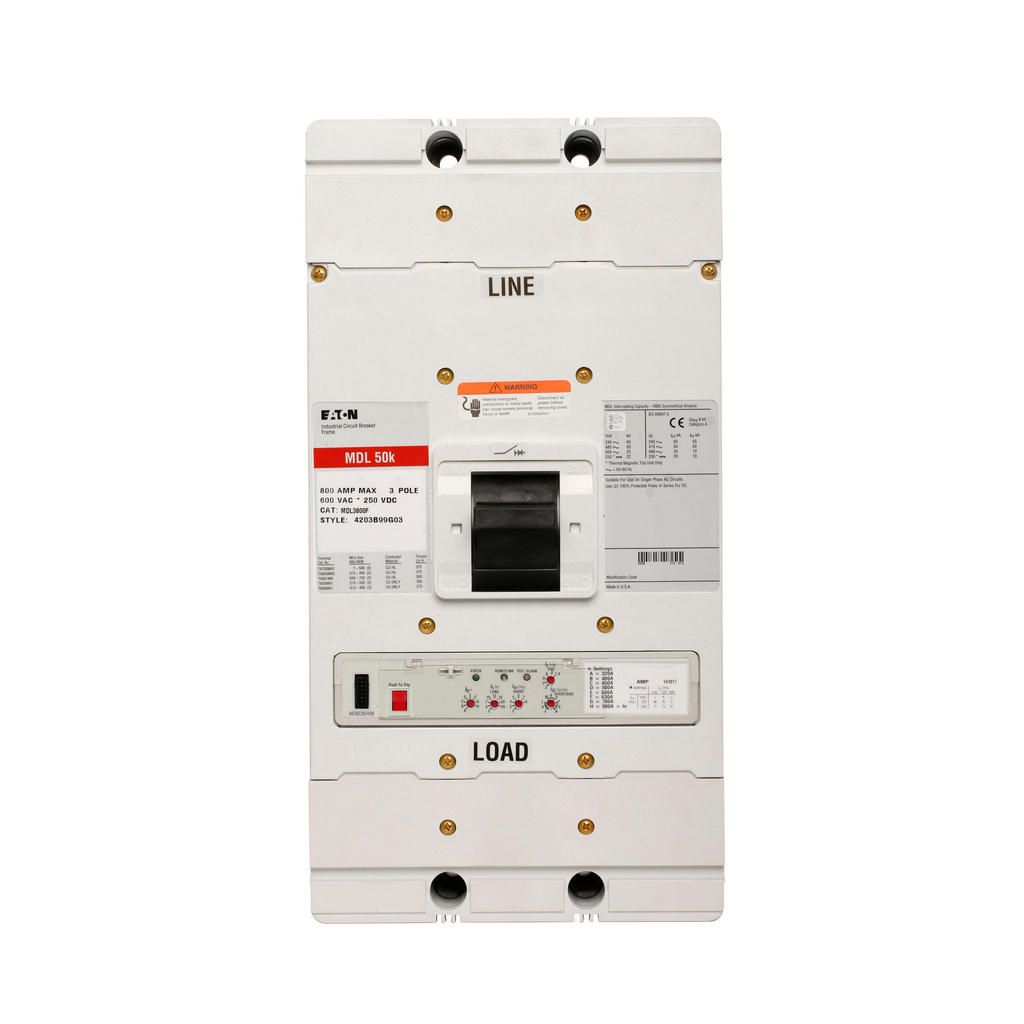

MDL3400 is a 3-pole, 400 amp molded case circuit breaker from Eaton's Series C MDL-frame lineup designed for reliable power distribution protection.This Eaton MDL3400 circuit breaker features a 600VAC voltage rating, thermal-magnetic trip unit, and a 50 kA interrupt rating at 480VAC. It is panel mountable with a feed-thru frame type and complies with industry certifications for safety and performance.
- Amperage: 400A
- Voltage Rating: 600VAC, 250VDC
- Poles: 3
- Frame Type: MDL-frame, Series C
- Interrupt Rating: 50 kA at 480VAC, 65 kA at 240VAC
- Trip Unit: Thermal Magnetic
- Mounting Type: Panel mount
- Frequency: 50-60 Hz
- Type: Molded Case Circuit Breaker
- Feed-Thru Frame
- Certifications: Industry standard safety certifications
Specifications
- Part Number: MDL3400
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : MDL
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782114585955
- GTIN : 00782114585955
- Country of Origin : United States
- Dimensions : 22.86 cm x 12.7 cm x 12.7 cm (Length/Depth x Height x Width)
- Weight : 2.9213
- Certification : UL Listed
