Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

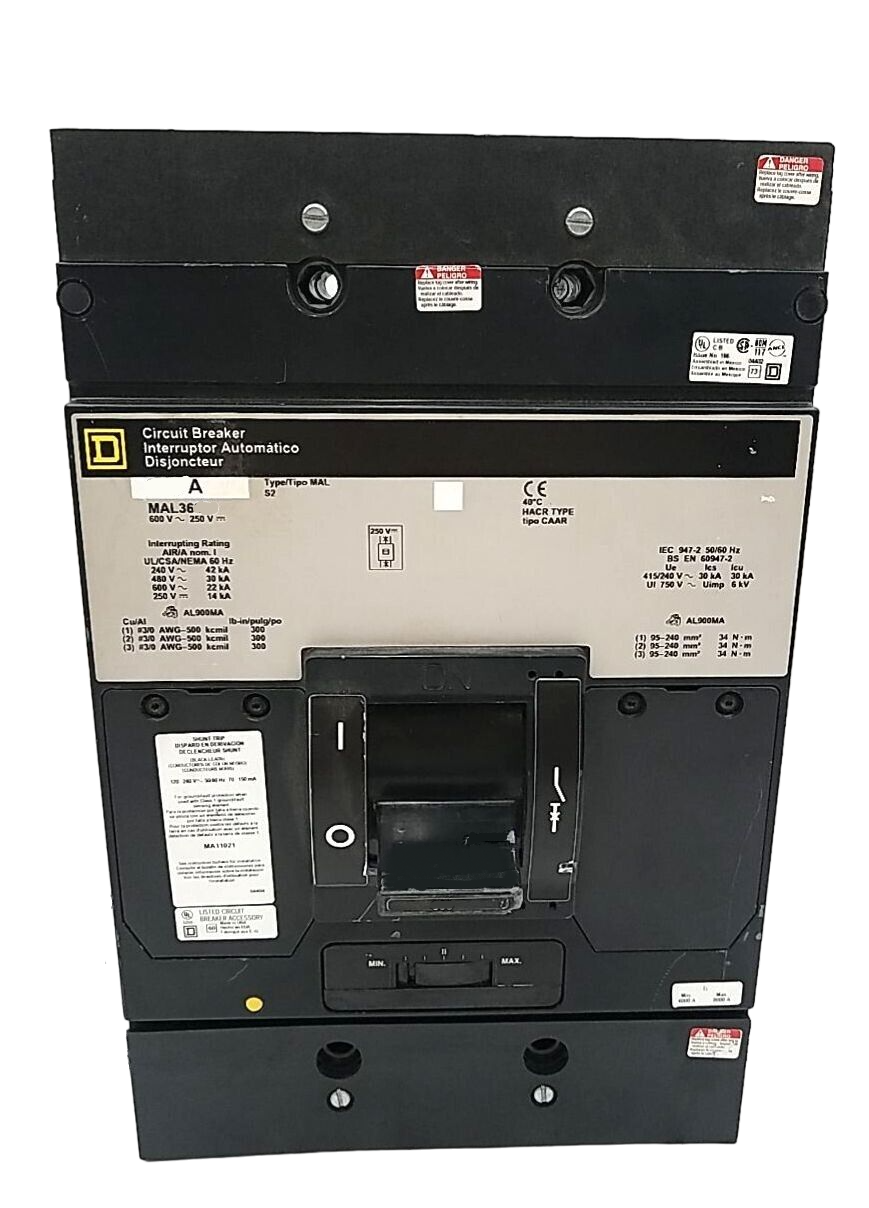

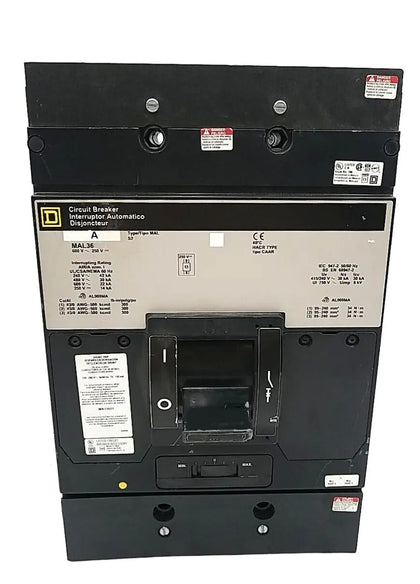

MAL3660040M
MAL3660040M is a 3-pole molded case circuit breaker rated for 600 amperes at 600 volts AC, designed for motor circuit protection and industrial power distribution applications.
This Square D MAL frame breaker features magnetic-only trip technology with an adjustable instantaneous trip setting range of 2500 to 5000 amperes. The unit is rated for 600 VAC at 50/60 Hz and 250 VDC, with a short circuit interrupt capacity of 30kA at 480V. It includes line and load lugs on both ends for feed-through installation and is equipped with MAG-GARD protection technology for enhanced reliability in demanding environments.
- Amperage: 600A
- Voltage: 600 VAC (50/60 Hz), 250 VDC
- Poles: 3
- Frame Size: M
- Trip Unit: Magnetic Only (Instantaneous)
- Interrupt Rating: 30kA @ 480V
- Trip Setting: 2500-5000A Adjustable
- Mounting: Feed-Through with Line and Load Lugs
- Protection Type: Motor Circuit Protector
- Technology: MAG-GARD
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MAL3660040M
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MAL Series
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Protection : Magnetic Only
Product Data
- Weight : 40
