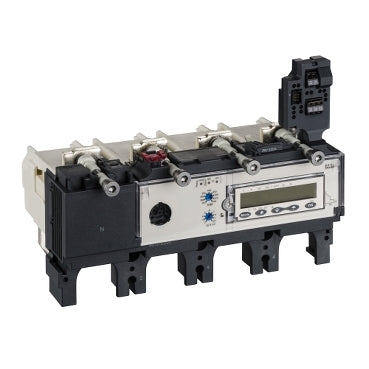

LV432105 - Schneider Electric Micrologic 6.3 A Electronic Trip Unit 630A 4 Poles 4d for Compact NSX 630 Circuit Breakers

LV432105

LV432105 is a Micrologic 6.3 A electronic trip unit designed for Compact NSX 630 circuit breakers with a 630A rating and 4 poles 4d configuration.LV432105 features advanced electronic trip technology providing LSIG (long-time, short-time, instantaneous, and ground fault) protection functions. It is compatible with Compact NSX 630 molded case circuit breakers and supports 690V AC 50/60 Hz operation.

• Manufacturer: Schneider Electric
• Trip Unit Type: Micrologic 6.3 A electronic
• Rated Current: 630 A
• Poles: 4 poles 4d
• Compatible with Compact NSX 630 circuit breakers
• Protection Functions: LSIG (long-time, short-time, instantaneous, ground fault)
• Voltage Rating: 690V AC 50/60 Hz
• Mounting Type: For Compact NSX 630 frame

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432105
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 630
• Amperage Minimum : 630
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.3 A

Product Data

• GTIN : 03606480018626
• Dimensions : Depth 32.99 in (83.8 cm) Width 14.02 in (35.6 cm) Height 59.02 in (149.9 cm)
• Weight : 4.2
• Standards : EN/IEC 60947-2, UL 508
