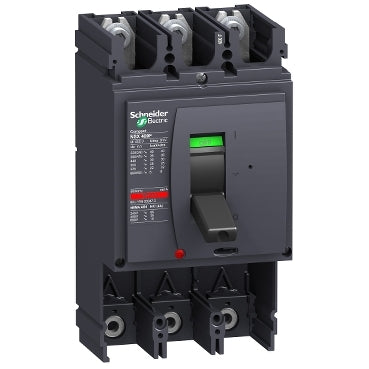

LV432404 - Schneider Electric 400A 3-Pole Compact NSX400H Circuit Breaker Basic Frame 70kA 415VAC Without Trip Unit

LV432404

LV432404 is a Schneider Electric Compact NSX400H circuit breaker basic frame designed for 400A applications without a trip unit.

This molded case circuit breaker features a 3-pole configuration and a high interrupt rating of 70kA at 415VAC, 50/60 Hz. It complies with IEC 60947-2 standards and carries CCC, EAC, and marine certifications. The breaker has a rated insulation voltage of 800V AC and is categorized as Category A. It is discontinued and not normally stocked but remains a reliable choice for industrial power distribution.

• Amperage: 400A
• Voltage: 415VAC, 50/60 Hz
• Poles: 3
• Interrupt Rating: 70kA at 415VAC
• Rated Insulation Voltage: 800V AC
• Series/Frame: Compact NSX400H
• Trip Unit: Without trip unit
• Standards: IEC 60947-2, UL 508
• Certifications: CCC, EAC, Marine
• Category: A
• Dimensions: 140mm x 255mm x 110mm

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.

Specifications

• Part Number: LV432404
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Compact NSX
• Type : LV4
• Voltage : 690
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 70kA@415V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 785901085683
• GTIN : 03606480006913
• Country of Origin : Italy
• Dimensions : Depth 19.69 in (500 mm) Width 51.18 in (1300 mm) Height 82.68 in (2100 mm)
• Weight : 9.806
• Standards : EN/IEC 60947-2, UL 508
