LV432080 - Schneider Electric MicroLogic 2.3 Trip Unit 630A 3 Poles for ComPact NSX 630 Circuit Breakers

Save $1,653.22
SKU: LV432080-New
Condition: New
Price:
$1,094.48 $2,747.70
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

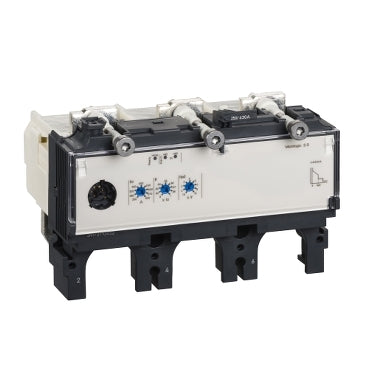

LV432080 Schneider Electric Circuit Breaker Trip Unit Compact - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LV432080 Schneider Electric Circuit Breaker Trip Unit Compact - Essential Electric Supply

Description

LV432080


LV432080 is an electronic MicroLogic 2.3 trip unit designed for Schneider Electric ComPact NSX 630 circuit breakers, providing reliable protection and control.LV432080 features a 630 ampere rating with 3 poles and 3d configuration, suitable for use in 690V applications. It incorporates solid-state protection technology with advanced trip functions including L, S, and oI protection. This trip unit supports network frequencies of 50/60 Hz and includes LED indicators for operational status and overload conditions.
  • Trip Unit Type: MicroLogic 2.3 electronic
  • Rated Current: 630 A
  • Poles: 3 poles, 3d
  • Voltage Rating: Up to 690 V
  • Protection Technology: Solid State
  • Compatible with: ComPact NSX 630 circuit breakers
  • Network Frequency: 50/60 Hz
  • Local Signalling: LED indicators for ready, overload, and warning
  • Trip Functions: L (long-time), S (short-time), oI (overcurrent instantaneous)
  • Mounting Type: Panel mount (via ComPact NSX breaker)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: LV432080
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Trip Units & Programmers
  • Family : Compact
  • Type : LV4
  • Voltage : 690
  • Poles : 3
  • Functions : LSI - Long-Time, Short-Time and Instantaneous
  • Amperage Maximum : 630
  • Amperage Minimum : 630
  • Protection : Solid State
  • Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
  • Trip Type : MicroLogic 2.3

Product Data

  • UPC : 785901755951
  • GTIN : 03606480016318
  • Country of Origin : United States
  • Dimensions : Depth 27.01 in (68.6 cm) Width 24.02 in (61 cm) Height 52.01 in (132.1 cm)
  • Weight : 3.102
  • Standards : UL 508, EN/IEC 60947-2
