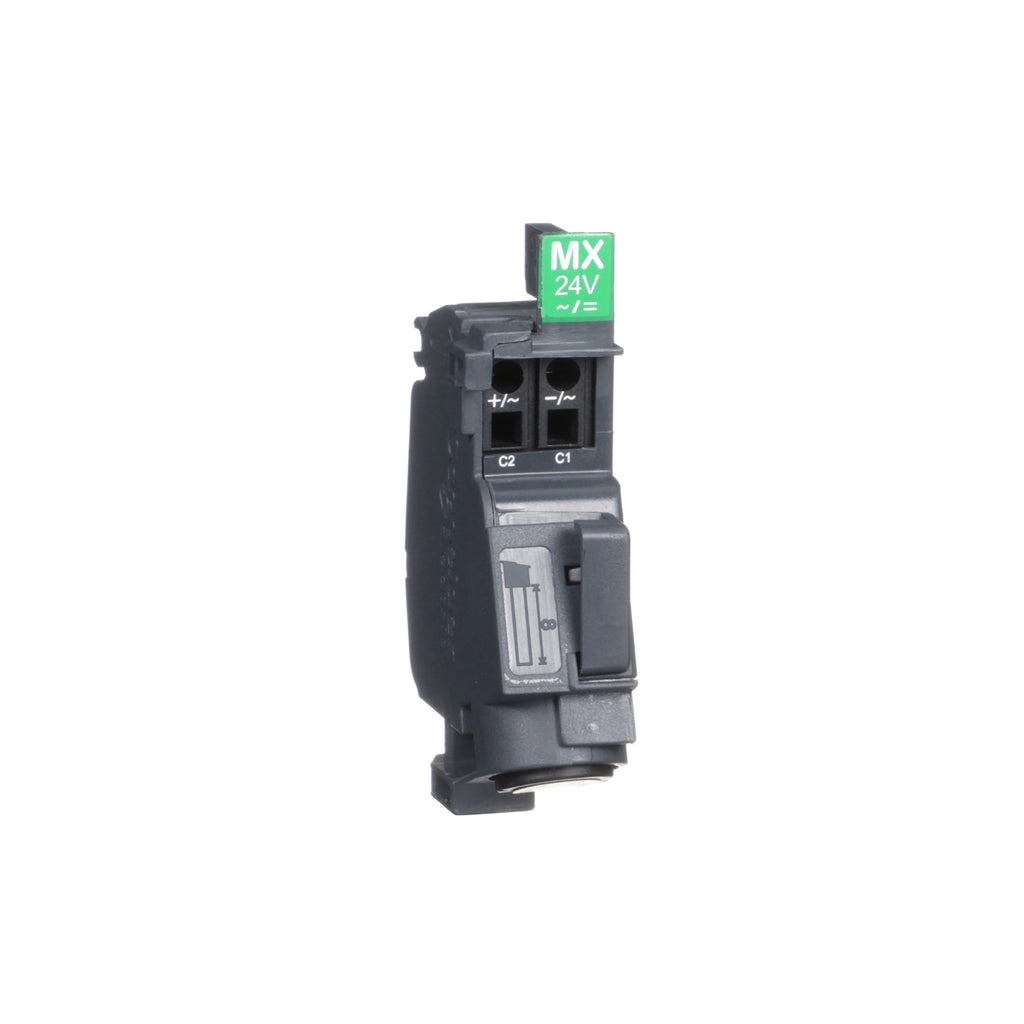

LV426841 - Square D 24V AC/DC Shunt Trip for PowerPact B and Compact NSXm Circuit Breakers

LV426841

LV426841 is a Square D shunt trip accessory designed for PowerPact B and Compact NSXm circuit breakers, operating at 24V AC/DC control voltage.This shunt trip features a B frame type with clip-on mounting and spring terminal connections. It is suitable for industrial control panels, commercial OEM, and electrical distribution applications. The device operates within a temperature range of -13 to 158 °F and complies with UL, CSA, NOM, IEC, CCC, CE, and RoHS standards.

• Manufacturer: Square D
• Part Number: LV426841
• Control Voltage: 24V AC/DC
• Frame Type: B
• Mounting Type: Clip-On
• Terminal Connection: Spring
• Compatible With: PowerPact B and Compact NSXm Circuit Breakers
• Operating Temperature: -13 to 158 °F
• Certifications: UL, CSA, NOM, IEC, CCC, CE, RoHS
• Control Type: Standard Voltage Release (Shunt Trip)
• Impulse Duration: ≤ 20 ms
• Response Time: < 50 ms

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV426841
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Shunt Trip
• Family : Powerpact
• Type : LV4
• Voltage : 24VAC/VDC
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : 1A/1B
• Control Voltage Minimum : 24
• Compatible Frames : B
• Control Voltate Maximum : 24

Product Data

• UPC : 3606485413044
• Country of Origin : France
• Weight : 0.133
• Standards : RoHS
• Certification : UL, CSA, NOM, IEC, CCC, CE
