LRD16 - Schneider Electric TeSys Deca Thermal Overload Relay 9-13A 3 Pole Class 10A Screw Clamp
Hover to zoom
LRD16 - Schneider Electric TeSys Deca Thermal Overload Relay 9-13A 3 Pole Class 10A Screw Clamp

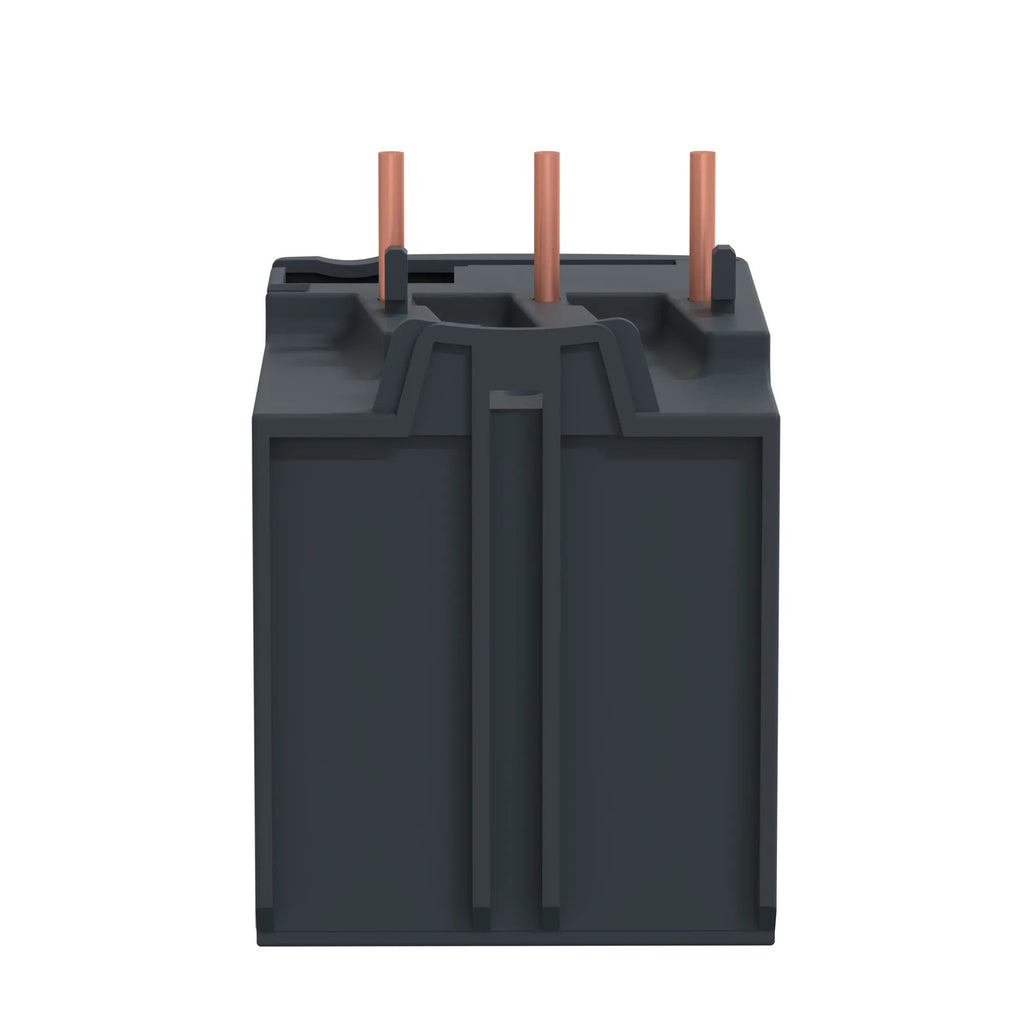

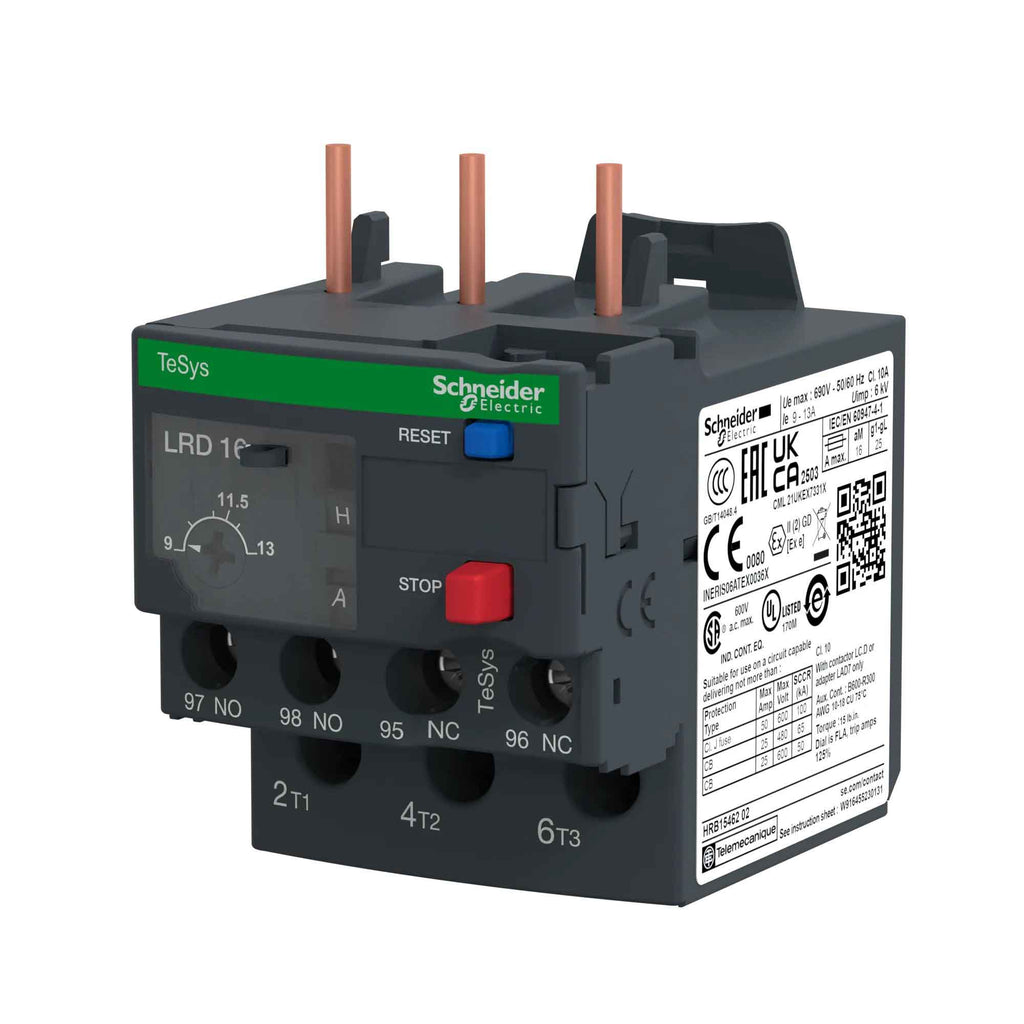

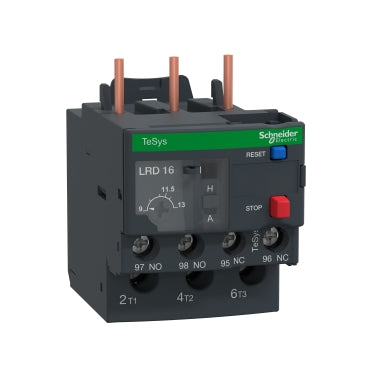

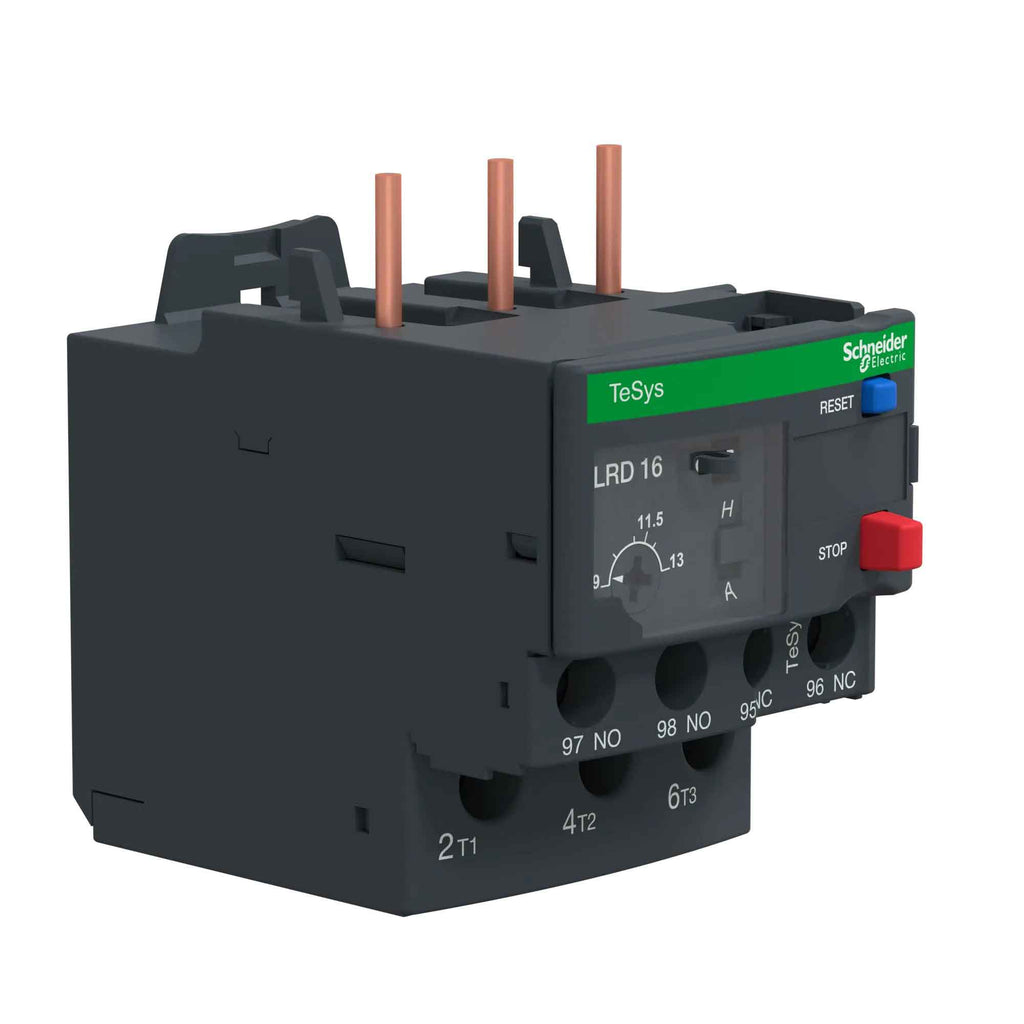

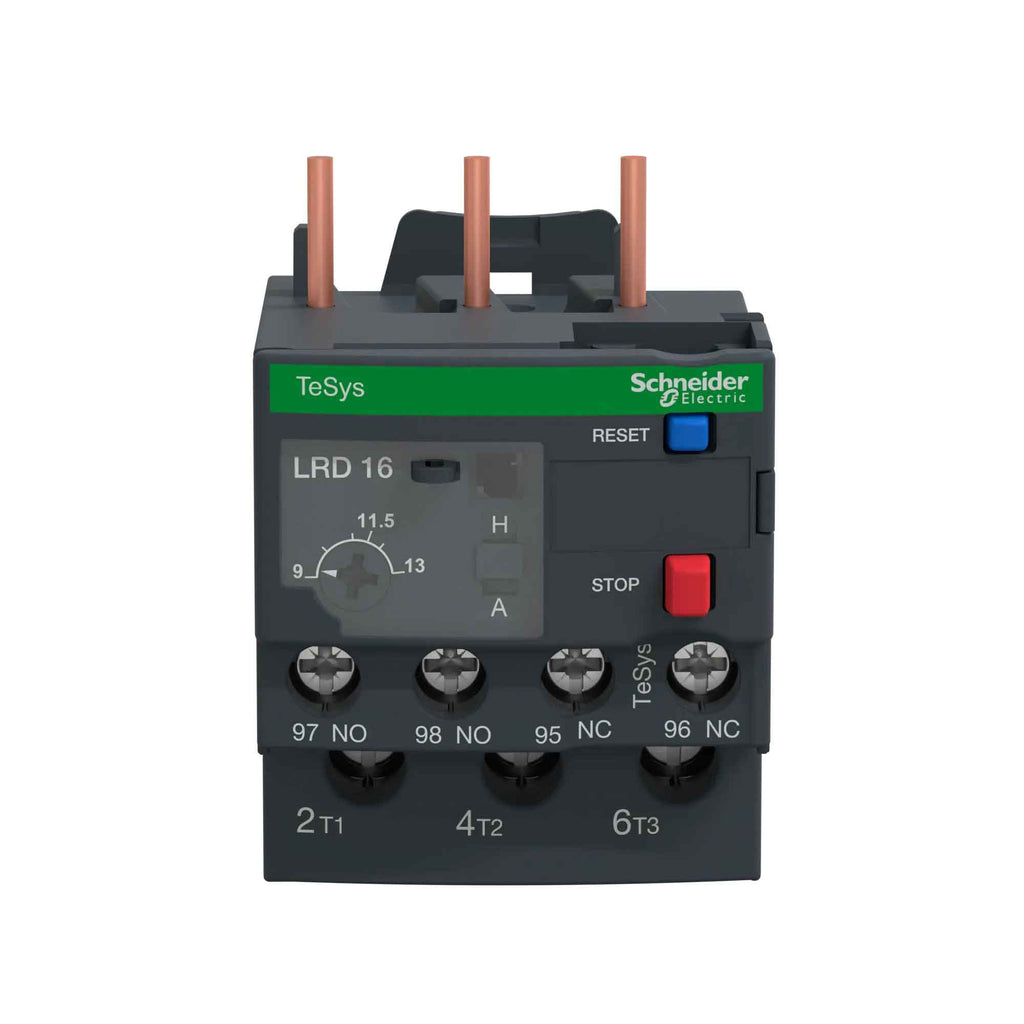

Reference images. Contact us for photos of the available unit.


Schneider Electric

LRD16

Schneider Electric TeSys Deca Thermal Overload Relay 9-13A 3 Pole Class 10A Screw Clamp

Poles: 3Voltage: 600/690VAC
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$42.50 $96.23
Save $53.73
100+ in stock, ready to be shipped
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Schneider Electric
Sub-Category
Overload Relay
Series
TeSys D
Frame
LRD
Max current rating
13
Voltage
600/690VAC
Poles
3
Phases
3
Auxiliary contacts
1NO/1NC
Country of origin
France
Temp Rating
28°F to 158°F (-20°C to 60°C)
Relay Style
Thermal
Amperage Maximum
13
Amperage Minimum
9
Show all specifications (6 more)
Compatible Frames
WPS08, WPF08, WPH08, WPX08, WPS16, WPF16, WPH16, WPS20
UPC
785901206781
GTIN
03389110346824
Dimensions
2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
Weight
0.309
Certification
EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
Product description & additional details

LRD16


LRD16 is a Schneider Electric TeSys Deca thermal overload relay designed for motor protection with adjustable current settings from 9 to 13 amps.The LRD16 features a 3-pole design with Class 10A tripping characteristics, suitable for AC circuits up to 690 V and frequencies from 0 to 400 Hz. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact, screw clamp terminals for easy installation, and phase loss sensitivity. The relay supports manual or automatic reset and mounts directly to TeSys contactors LC1D09 through LC1D32.
  • Amperage range: 9-13 A adjustable
  • Voltage rating: up to 690 V AC
  • Poles: 3
  • Trip class: 10A
  • Mounting type: Direct mount to TeSys contactors
  • Auxiliary contacts: 1 NO + 1 NC
  • Reset: Manual or automatic
  • Terminals: Screw clamp
  • Frequency range: 0-400 Hz
  • Certifications: Multiple international standards compliant
  • Environmental: RoHS compliant, recyclable packaging
At Essential Parts, we offer fast shipping, lowest price(more...)

Specifications

  • Part Number: LRD16
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : TeSys D
  • Type : LRD
  • Voltage : 600/690VAC
  • Phase : 3
  • Poles : 3
  • Temp Rating : 28°F to 158°F (-20°C to 60°C)
  • Relay Style : Thermal
  • Aux Contacts : 1NO/1NC
  • Amperage Maximum : 13
  • Amperage Minimum : 9
  • Compatible Frames : WPS08, WPF08, WPH08, WPX08, WPS16, WPF16, WPH16, WPS20

Product Data

  • UPC : 785901206781
  • GTIN : 03389110346824
  • Country of Origin : France
  • Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
  • Weight : 0.309
  • Temp Rating : 28°F to 158°F (-20°C to 60°C)
  • Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA

Technical Documents
Product Datasheet
Return eligibility: what to know before ordering

Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.

Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.

Read the complete return and warranty policy ↗

Warranty supplied by Essential Electric

Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.

Review coverage, exclusions, and the claim process ↗
