RT12M General Electric RT1 Thermal Overload Relay, 5.5-8.5A, Class 20

SKU: RT12M-New
Condition: New
Price:
$103.25
Stock:
Low inventory, please call (866) 790-5296 for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

RT12M - General Electric 5.5-8.5A Thermal Overload Relay 3 Pole Manual/Auto Reset IEC Style - Essential Electric Supply
RT12M - General Electric 5.5-8.5A Thermal Overload Relay 3 Pole Manual/Auto Reset IEC Style - Essential Electric Supply
RT12M - General Electric 5.5-8.5A Thermal Overload Relay 3 Pole Manual/Auto Reset IEC Style - Essential Electric Supply

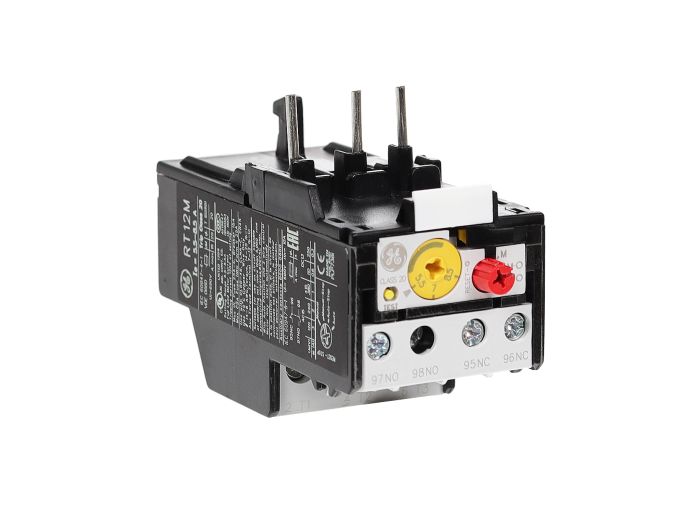

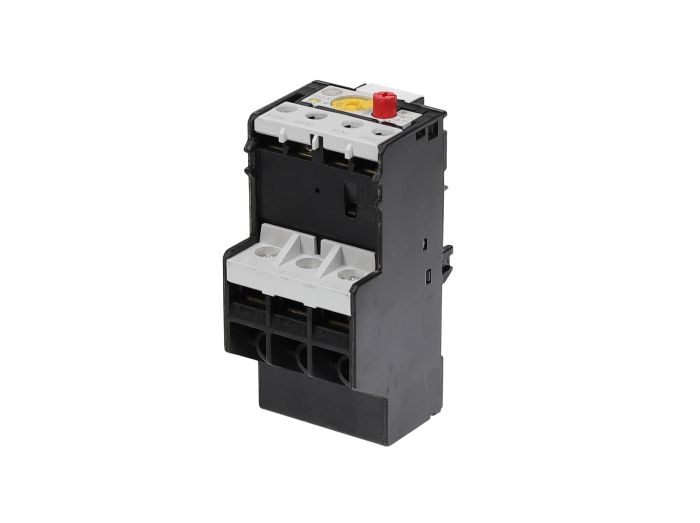

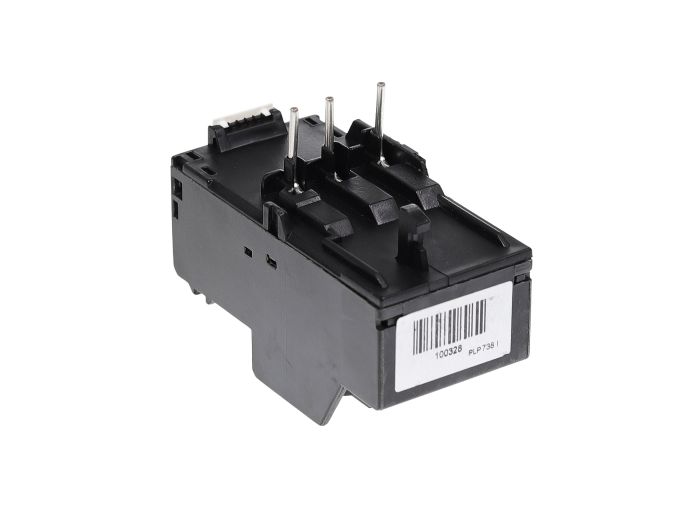

Roll over image to zoom in Click on image to zoom Images are for reference only
RT12M - General Electric 5.5-8.5A Thermal Overload Relay 3 Pole Manual/Auto Reset IEC Style - Essential Electric Supply
RT12M - General Electric 5.5-8.5A Thermal Overload Relay 3 Pole Manual/Auto Reset IEC Style - Essential Electric Supply
RT12M - General Electric 5.5-8.5A Thermal Overload Relay 3 Pole Manual/Auto Reset IEC Style - Essential Electric Supply

Description

RT12M


RT12M General Electric RT1 Thermal Overload Relay, 5.5-8.5A, Class 20

General Electric RT12M is an RT1 direct-mount thermal overload relay for motor-control assemblies. Its verified adjustable range is 5.5-8.5 A, with Class 20 trip performance and selectable manual or automatic reset with or without a stop function.

The GE selection table assigns RT12M to CL00, CL01, CL02, CL25, CL04, and CL45 contactors. For a panel-mounted installation, the same table directs the user to the RTXP base adapter.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

  • Direct-mount overload protection for supported GE CL-series contactors
  • Panel-mounted overload relay installations using the RTXP base adapter
  • Class 20 selection for the compact CL45A310MJ starter application

Key Features

  • Adjustable current setting: 5.5-8.5 A verified range.
  • Trip class: Class 20 model in the GE RT1 table.
  • Reset control: Manual or automatic reset, with or without stop.
  • Auxiliary contacts: One normally open and one normally closed contact.
  • Connection: Three-pole design with screw terminals.

Specifications

  • Current range: 5.5-8.5 A
  • Trip class: Class 20
  • Reset type: Manual/Auto with or without stop
  • Poles: 3
  • Output contacts: 1NO and 1NC
  • Terminal type: Screw
  • Ambient temperature: -25 to 60 deg C
  • Direct-mount contactors: CL00, CL01, CL02, CL25, CL04, CL45
  • Panel-mount adapter: RTXP
  • Selection-table maximum fuse rating: 25 A
  • Selection-table maximum circuit breaker rating: 15 A

Product Identification

  • Catalog number: RT12M
  • Legacy brand: General Electric
  • Current catalog publisher: ABB
  • Family: RT1 direct-mount thermal overload relay

FAQ

What is General Electric RT12M?

RT12M is a thermal overload relay selected for a 5.5-8.5 A motor current range and Class 20 response.

Which contactors accept RT12M directly?

The manufacturer table names CL00, CL01, CL02, CL25, CL04, and CL45 contactors for direct mounting.

Can RT12M be panel mounted?

Yes. The GE catalog specifies the RTXP base adapter when this RT1 relay is mounted on a panel.

How can the relay be reset?

The RT12M reset mechanism can be set for manual or automatic operation, with or without the stop function.


Specifications

  • Part Number: RT12M
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : Series RT
  • Amperage Minimum : 5.5

Product Data

  • UPC : 17018136423
  • Dimensions : 2.80 × 1.80 × 3.80 inches
  • Weight : 0.41 lb
