Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Allen-Bradley
- Sub-Category
- Overload Relay
- Compatible Frames
- MA
- UPC
- 662074728213
- Weight
- 0.15
Product description & additional details

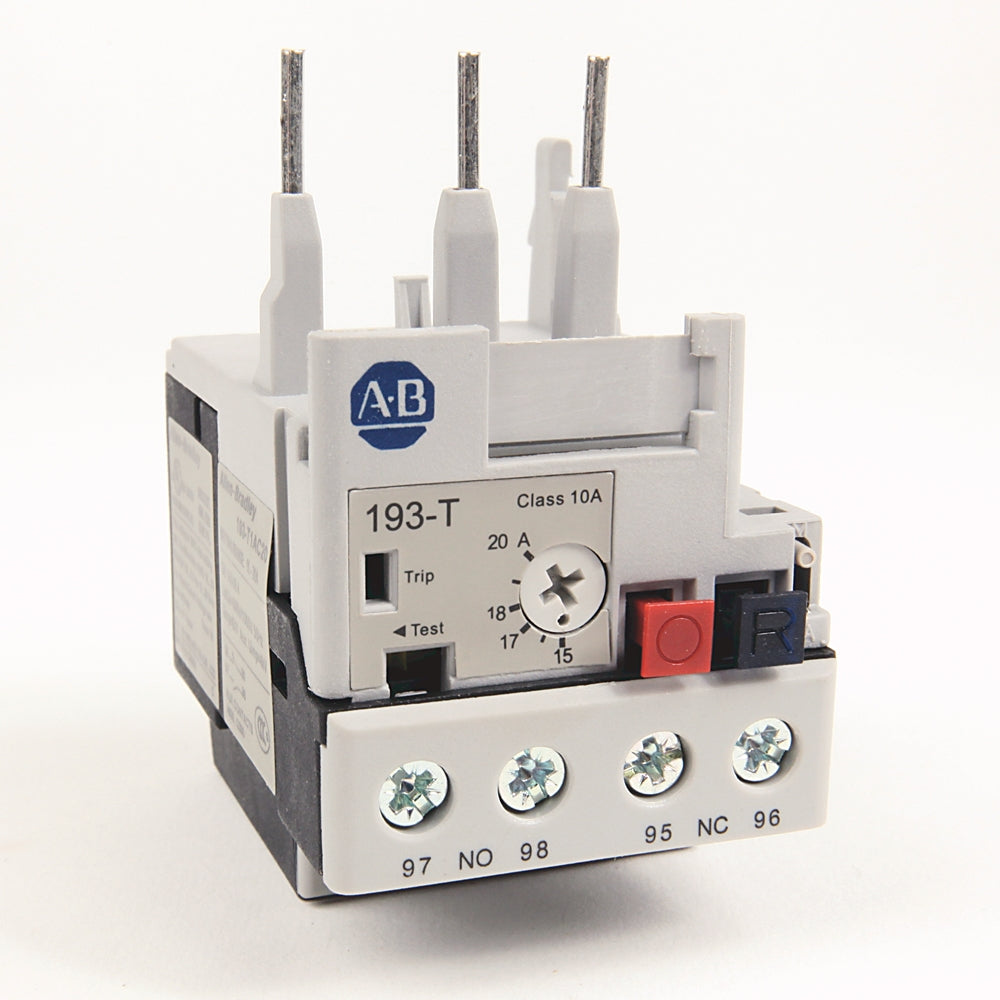

193-T1AC20
193-T1AC20 is an Allen-Bradley 15-20A IEC bimetallic overload relay designed for reliable motor protection in normal duty applications. This relay features ambient temperature compensation, manual and automatic reset options, and phase loss protection for enhanced safety. The 193-T1AC20 is suitable for use with 100-C16 and 100-C25 contactors, mounting directly to the load side for easy installation and replacement. It provides class 10 tripping (trips in 10 seconds or less under overload), and is compatible with both AC and DC motor applications. The relay includes both a reset and stop button for operational convenience.
- Amperage Range: 15-20A
- Maximum Motor Voltage: 690VAC, 440VDC
- Mounting Type: Direct mount to 100-C16/C25 contactors
- Interrupt Rating: Class 10
- Series/Frame: 193-T1
- Trip Unit: Bimetallic, ambient compensated
- Contact Configuration: 1 NO, 1 NC
- Phase Loss Protection: Yes
- Reset Type: Manual and automatic
- Certifications: KC, CCC
- Application: AC/DC motors, VFDs
- Operating Temperature: -20°C to +60°C
Specifications
- Part Number: 193-T1AC20
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Overload Relay
- Compatible Frames : MA
Product Data
- UPC : 662074728213
- Weight : 0.15
