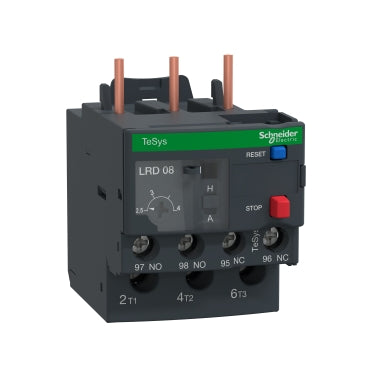

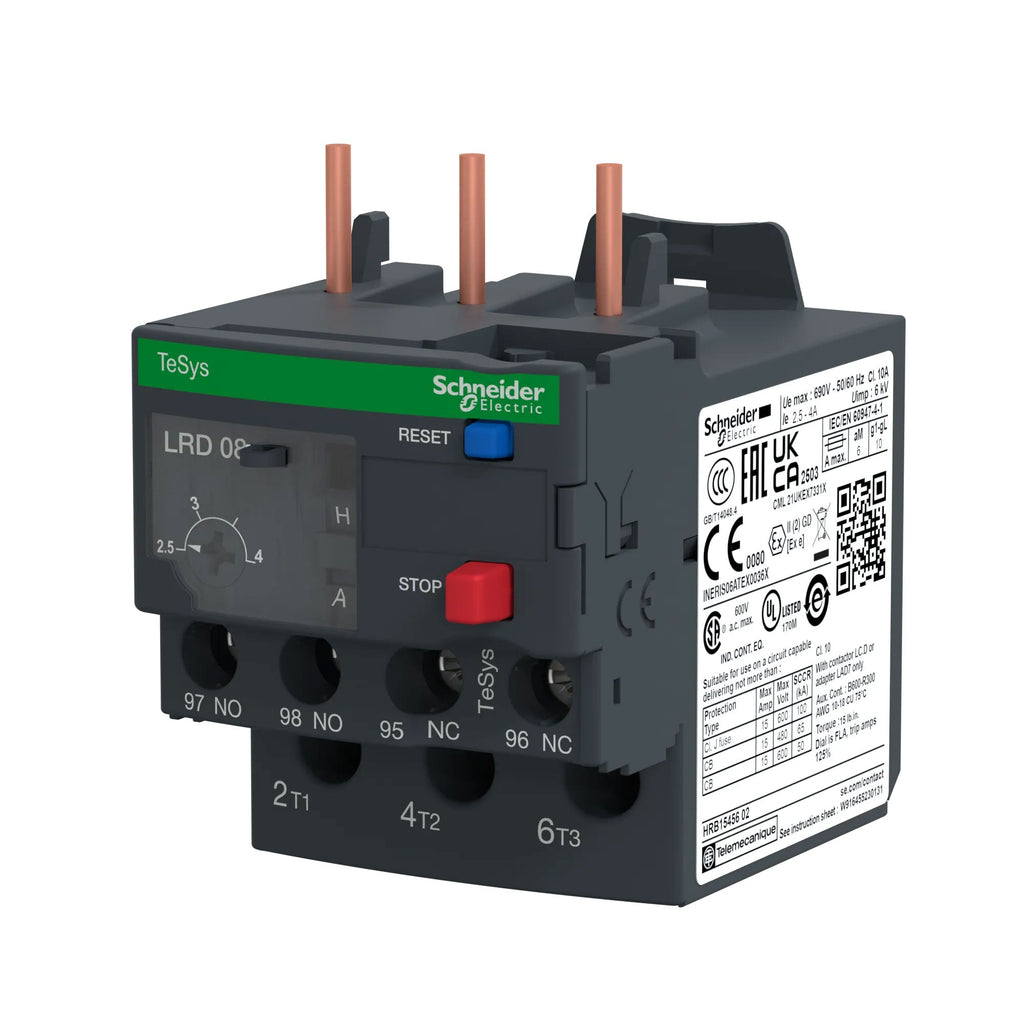

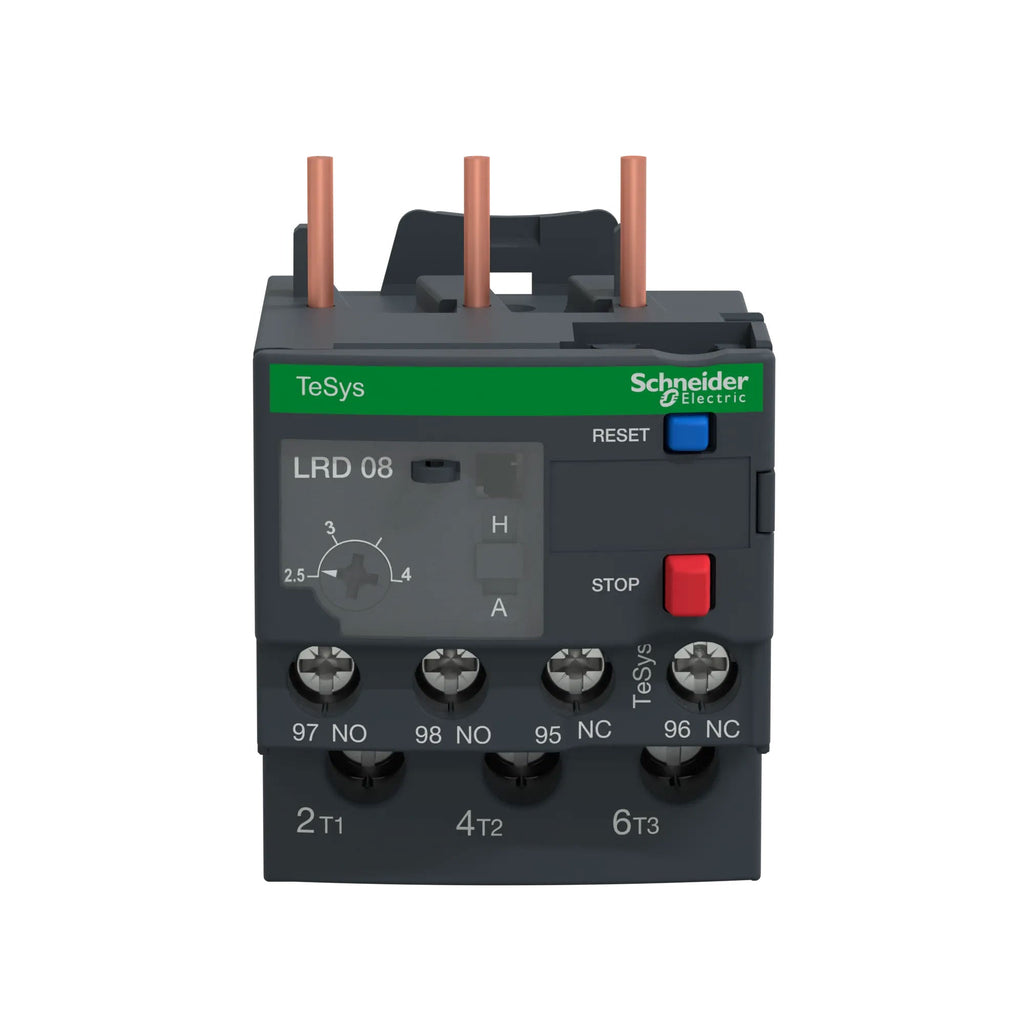

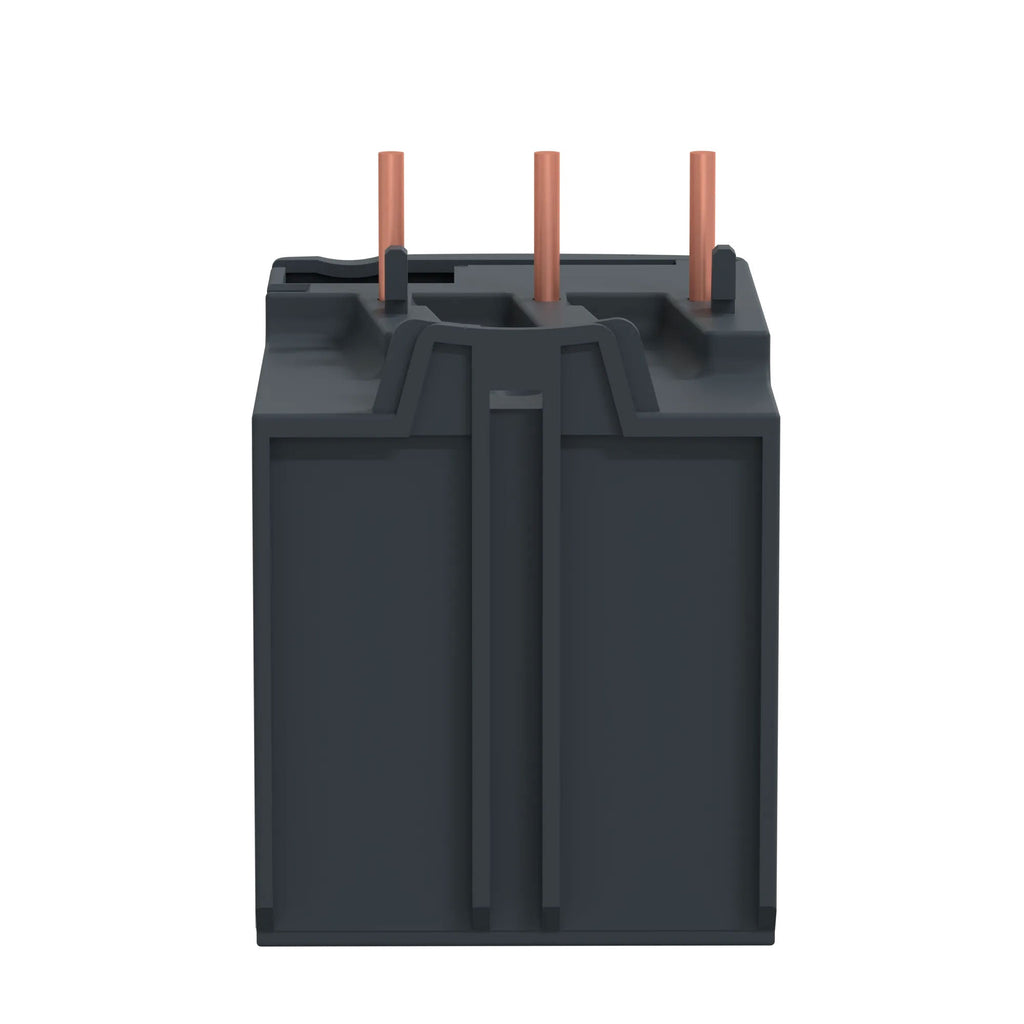

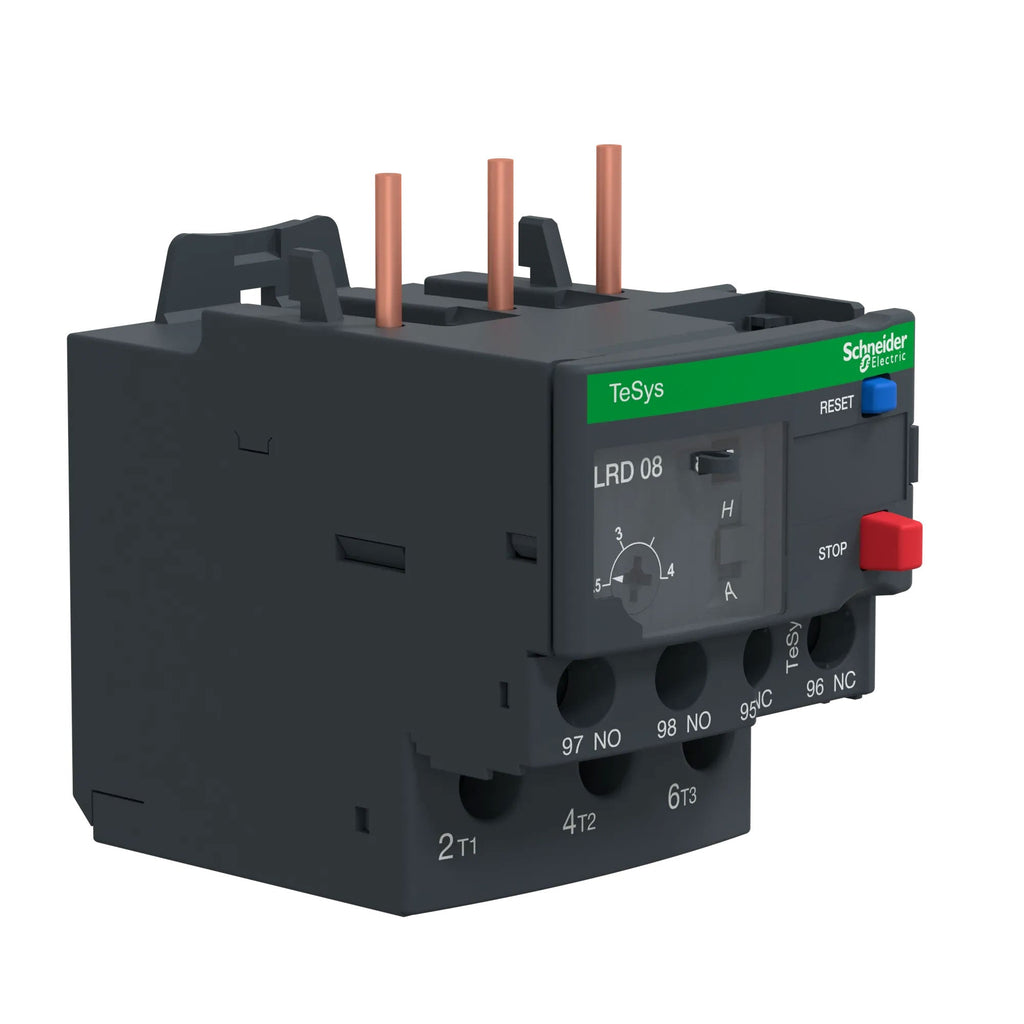

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Overload Relay
- Series
- TeSys D
- Frame
- LRD
- Max current rating
- 4
- Voltage
- 600/690VAC
- Poles
- 3
- Phases
- 3
- Auxiliary contacts
- 1NO/1NC
- Country of origin
- France
- Temp Rating
- 28°F to 158°F (-20°C to 60°C)
- Relay Style
- Thermal
- Amperage Maximum
- 4
- Amperage Minimum
- 2.5
Show all specifications (5 more)
- UPC
- 785901206750
- GTIN
- 03389110346787
- Dimensions
- 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
- Weight
- 0.311
- Certification
- EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
Product description & additional details
LRD08
LRD08 is a Telemecanique thermal overload relay designed for reliable motor protection in industrial applications.
This adjustable overload relay offers a current range of 2.5 to 4A, features Class 10 trip characteristics for fast overload response, and provides both manual and automatic reset options. It is ambient temperature compensated, includes phase loss sensitivity for enhanced motor safety, and directly mounts to LC1D series contactors for easy installation. The LRD08 is ideal for use in motor control circuits requiring robust, adjustable protection.
-
Key Specifications
- Part Number: LRD08
- Manufacturer: Telemecanique (Schneider Electric)
- Amperage: 2.5 to 4A adjustable
- Voltage: Not specified (typically for use with contactor coil voltage)
- Poles: 3
- Mounting Type: Direct mount to LC1D09 through LC1D32 contactors
- Interrupt Rating: Not specified (standard for thermal overload relays in this class)
- Series/Frame: TeSys D (LR Series)
- Trip Unit: Bimetallic, ambient compensated
- Trip Class: Class 10 (trips in 10 seconds or less at 600%(more...)
Specifications
- Part Number: LRD08
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : TeSys D
- Type : LRD
- Voltage : 600/690VAC
- Phase : 3
- Poles : 3
- Temp Rating : 28°F to 158°F (-20°C to 60°C)
- Relay Style : Thermal
- Aux Contacts : 1NO/1NC
- Amperage Maximum : 4
- Amperage Minimum : 2.5
Product Data
- UPC : 785901206750
- GTIN : 03389110346787
- Country of Origin : France
- Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
- Weight : 0.311
- Temp Rating : 28°F to 158°F (-20°C to 60°C)
- Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
Technical Documents
