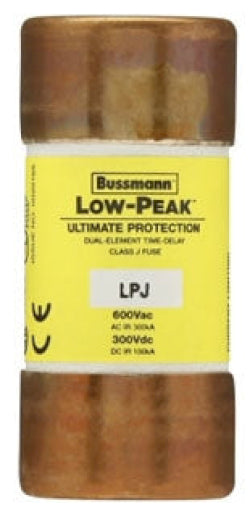

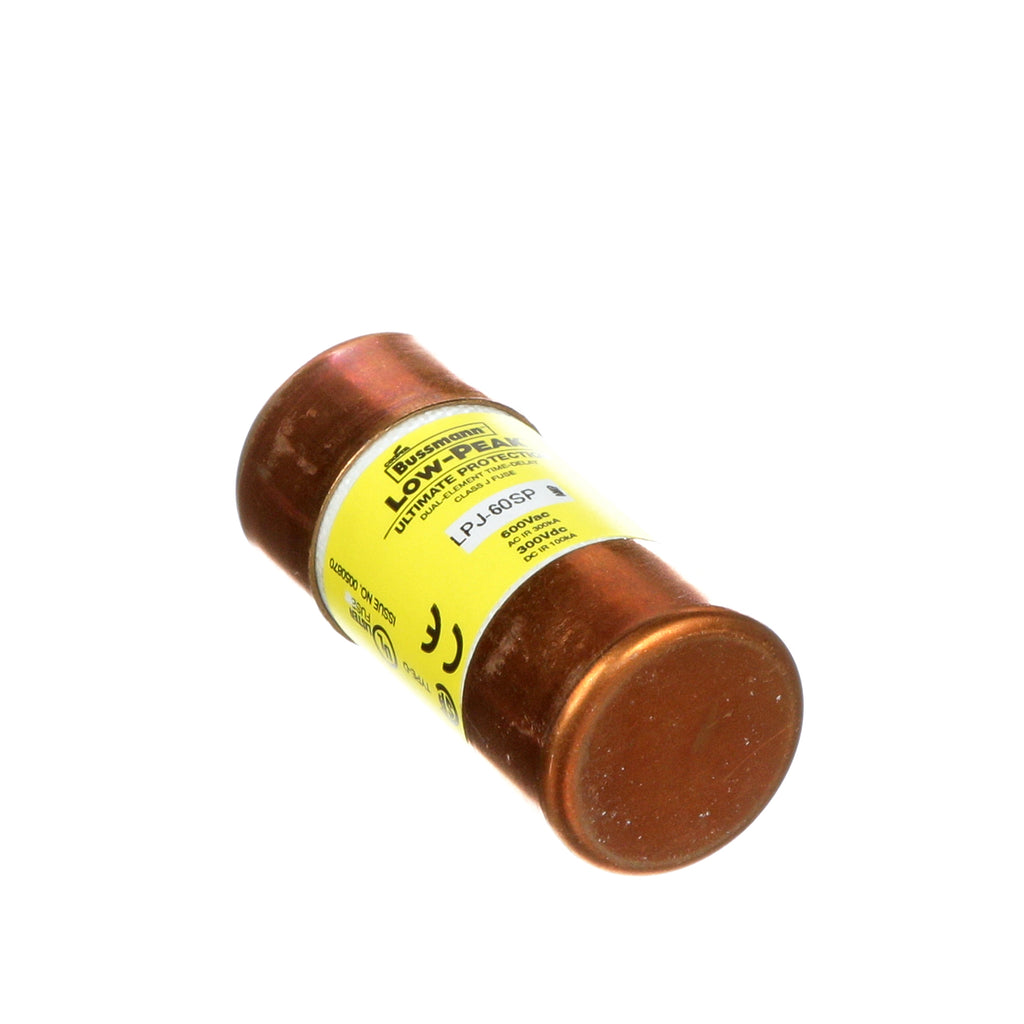

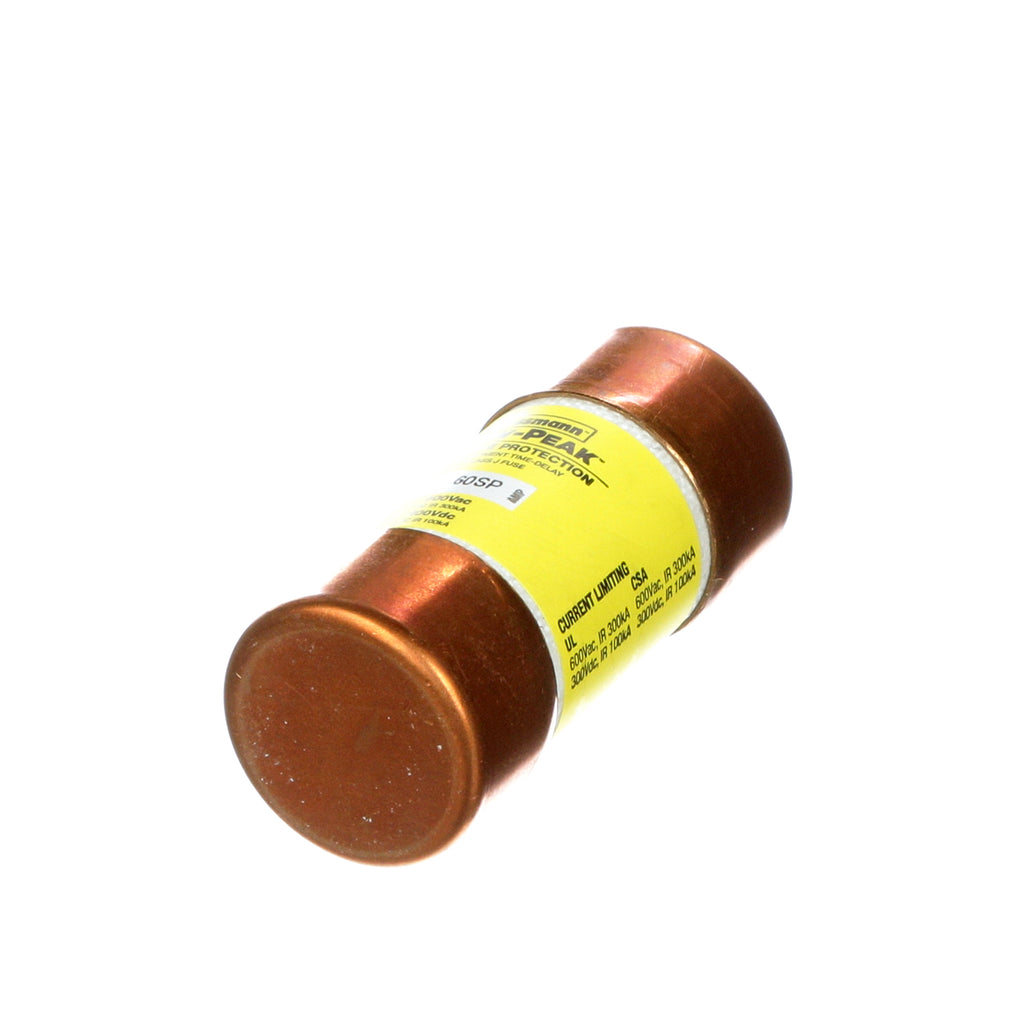

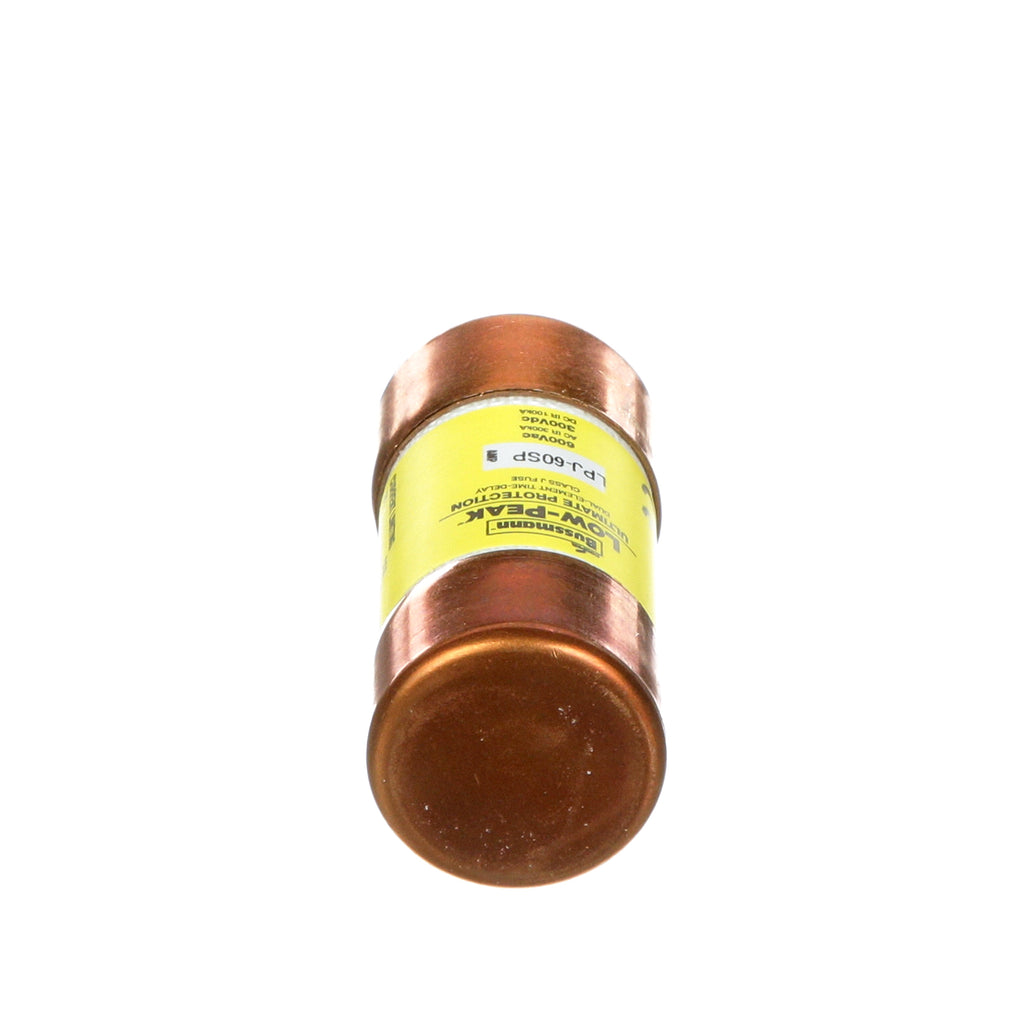

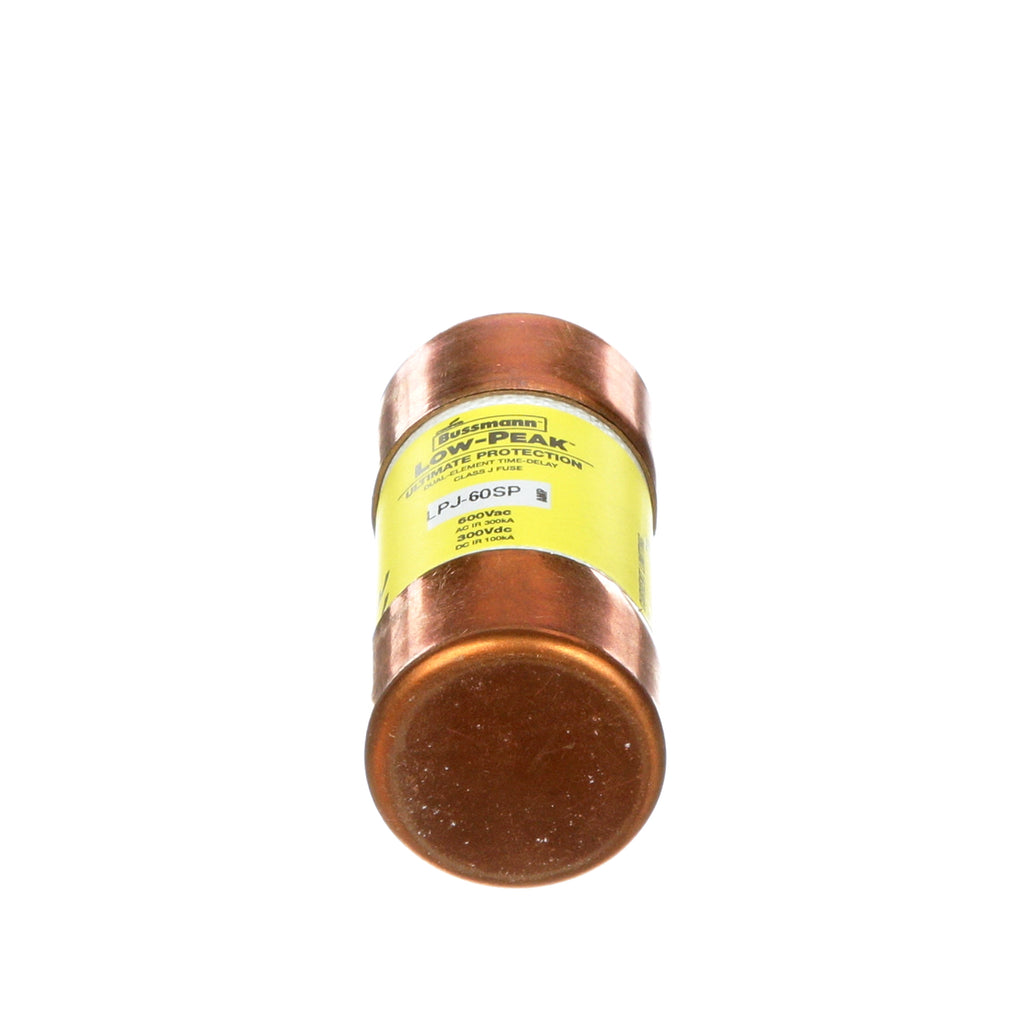

LPJ-60SP - Eaton Bussmann 60A 600V Class J Time-Delay Dual Element Fuse

LPJ-60SP

LPJ-60SP is a Eaton Bussmann Class J time-delay dual element fuse rated for 60 amps and 600 volts AC, designed for high inrush current motor protection.This fuse features a 300 kA interrupting rating at 600 VAC and 100 kA at 300 VDC, with ferrule end x ferrule end connections. It is non-indicating and complies with CE and RoHS standards. The LPJ-60SP fuse provides reliable current limiting and time-delay protection suitable for industrial and commercial applications.

Key Specifications
• Amperage Rating: 60 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Type: Time-delay, dual element, current limiting
• Connection Type: Ferrule end x ferrule end
• Class: Class J
• Response Time: 10 seconds at 500% overload
• Dimensions: 1.06 in diameter x 2.38 in length
• Certifications: CE Marked, RoHS Compliant, UL Listed, CSA Certified
• Non-indicating fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-60SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 60
• AIC rating : 300kA@600V
• Diameter : 1.06
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523363
• GTIN : 00051712523363
• Country of Origin : Mexico
• Dimensions : 2.38 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
