Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LMXD63B600

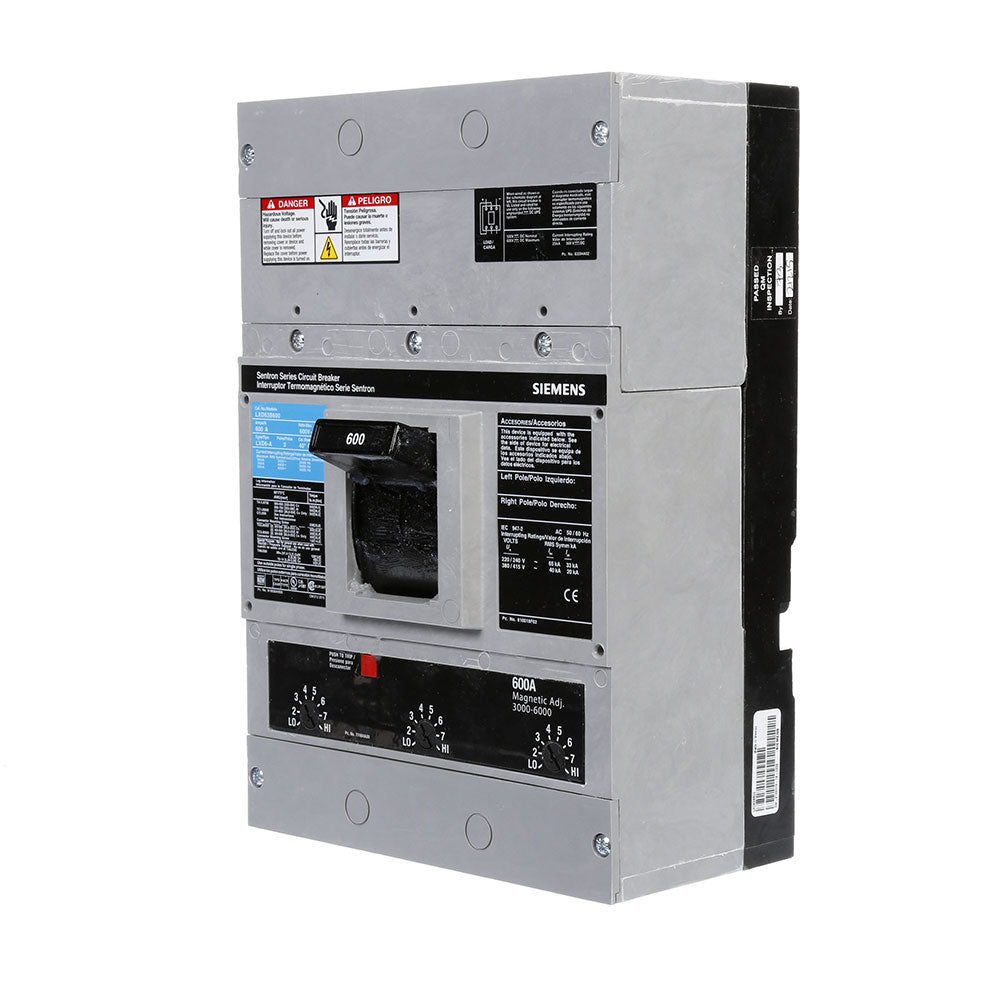

LMXD63B600 is a Siemens 3 Pole, 600 Amp, 600 Volt molded case circuit breaker designed for bolt-on mounting in the Sentron LXD series.This thermal magnetic circuit breaker features long time, short time, and instantaneous trip functions with an interrupting rating of 25kAIC at 600V and 35kAIC at 480V. It is UL and IEC certified, suitable for 3-phase applications, and rated for operation at 40°C ambient temperature.
- Key Specifications
- Amperage: 600A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 25kAIC at 600V, 35kAIC at 480V
- Series/Frame: Sentron LXD
- Trip Unit: Thermal Magnetic with Long Time, Short Time, Instantaneous
- Certifications: UL, IEC, RoHS
- Phase: 3
- Temperature Rating: 40°C
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: LMXD63B600
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : LMXD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : LMD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643304147
- GTIN : 00783643304147
- Country of Origin : Mexico
- Weight : 31.001
