Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LMXD63B700L

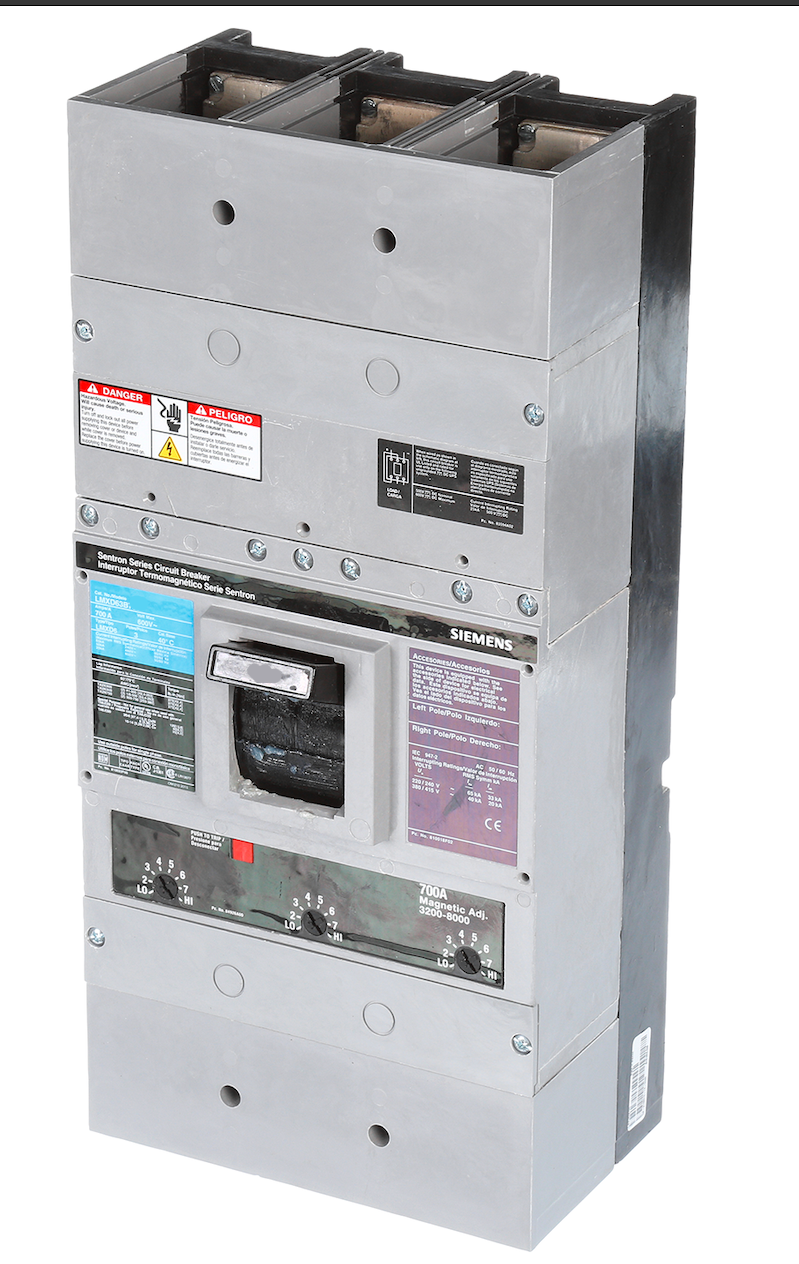

LMXD63B700L is a Siemens Sentron LMXD series molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 3-pole configuration, 700A current rating, and 600V AC voltage rating, making it suitable for a wide range of applications requiring robust circuit protection. It is equipped with a non-interchangeable thermal magnetic trip unit and offers a standard interrupting capacity of 25kA at 600V. The unit is designed for bolt-on mounting and is compatible with standard electrical panel installations.Key Specifications:
- Part Number: LMXD63B700L
- Manufacturer: Siemens
- Series/Frame: Sentron LMXD
- Amperage Rating: 700A
- Voltage Rating: 600V AC
- Number of Poles: 3
- Interrupting Rating: 25kA at 600V
- Mounting Type: Bolt-On
- Mounting Type: Feed-Thru
- Trip Unit: Non-Interchangeable Thermal Magnetic
- Application: Commercial and Industrial Power Distribution
Specifications
- Part Number: LMXD63B700L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : LMXD
- Voltage : 600
- Amperage : 700
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LMD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643011045
- GTIN : 00783643011045
- Country of Origin : Mexico
- Dimensions : 17.717 x 8.661 x 7.874 inch
- Weight : 32.254
