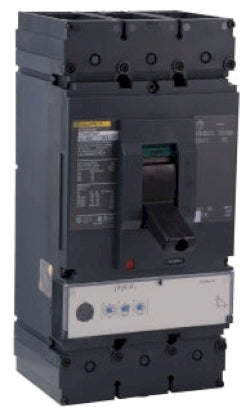

LLL36400CU33X - Square D 400A 600V 3-Pole Solid State Circuit Breaker PowerPact L Frame

LLL36400CU33X

LLL36400CU33X is a 3-pole, 400 amp, 600 volt AC solid state molded case circuit breaker from Square D's PowerPact L series.This circuit breaker features a PowerPact L frame with solid state current limiting trip unit, providing long time, short time, and instantaneous trip functions. It is rated for 65kA interrupt capacity at 480V and includes line and load side lug terminals with feed-thru capability. The breaker is designed for panel mounting and offers reliable protection for three-phase electrical systems.

• Amperage: 400A
• Voltage: 600 VAC
• Poles: 3
• Frame Type: PowerPact L (LLL)
• Trip Unit: Solid State, Non-Interchangeable 3.3 Trip
• Interrupt Rating: 65kA at 480V
• Mounting Type: Panel Mount
• Current Limiting: Yes
• Feed-Thru Capability: Yes
• Certifications: UL Listed
• Line & Load Side Lug Terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LLL36400CU33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LLL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : Long Time, Short Time and Instantaneous Trip
• Frame Size : L Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 060648628405
• GTIN : 03606486284056
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
