LJP36600U31X - Schneider Electric Square D PowerPact L Frame 600A 600VAC 3-Pole Circuit Breaker

LJP36600U31X

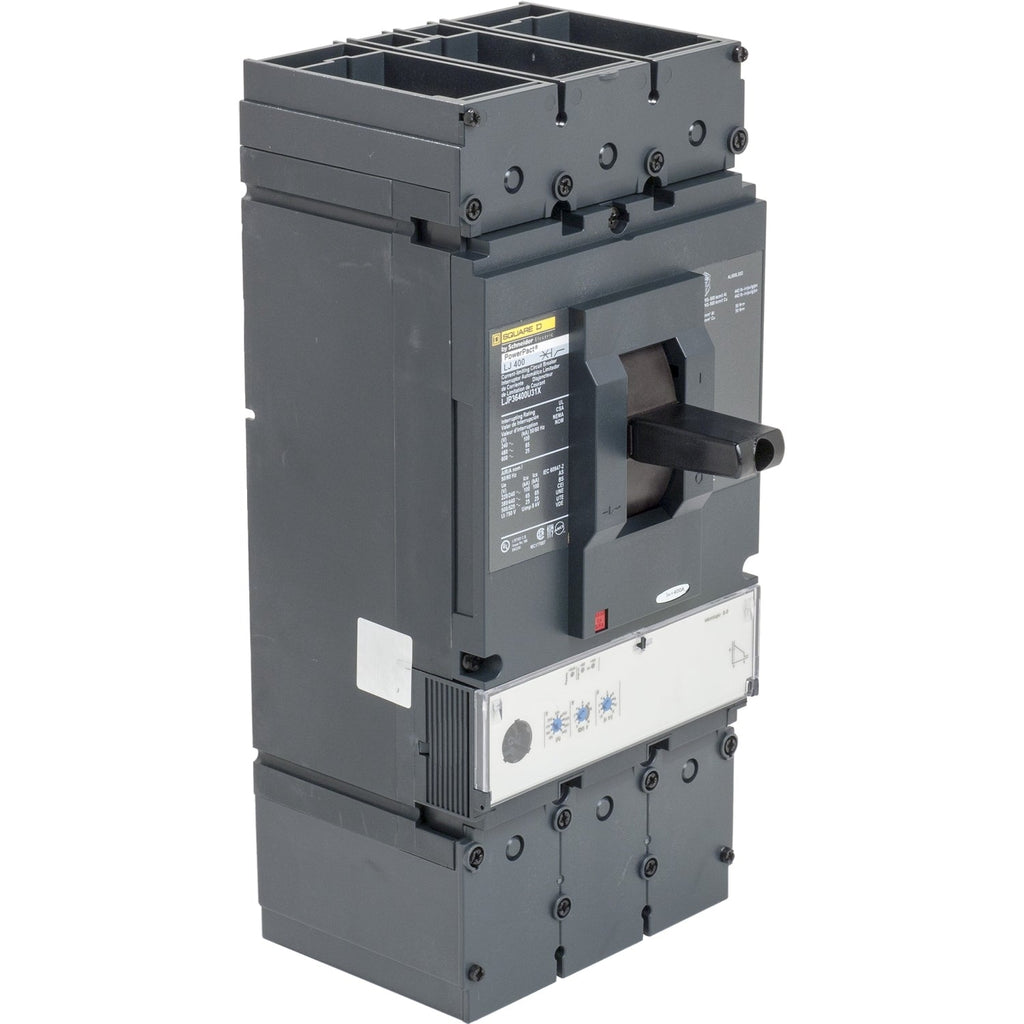

LJP36600U31X is a Schneider Electric Square D PowerPact L Frame molded case circuit breaker designed for reliable protection in electrical distribution systems.This 3-pole circuit breaker features a 600 ampere rating and operates up to 600 volts AC. It has a J interrupt rating with a 25kA interrupting capacity at 600VAC, making it suitable for demanding industrial applications. The breaker includes MicroLogic 3.3 trip unit technology for precise overload and short circuit protection. It is UL 489 listed and certified to multiple standards including CSA, IEC, and NEMA, ensuring compliance and safety.

Key Specifications
• Amperage: 600A
• Voltage Rating: 600VAC
• Poles: 3
• Frame/Series: PowerPact L
• Interrupt Rating: 25kA at 600VAC
• Trip Unit: MicroLogic 3.3
• Mounting Type: Unit Mount
• Certifications: UL 489, CSA, IEC, NEMA, CE
• Impulse Withstand Voltage: 8 kV
• Environmental: Recyclable packaging
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LJP36600U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State



Product Data

• UPC : 785901504627
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
