Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LJL36600U31X

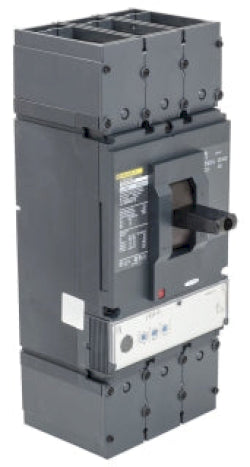

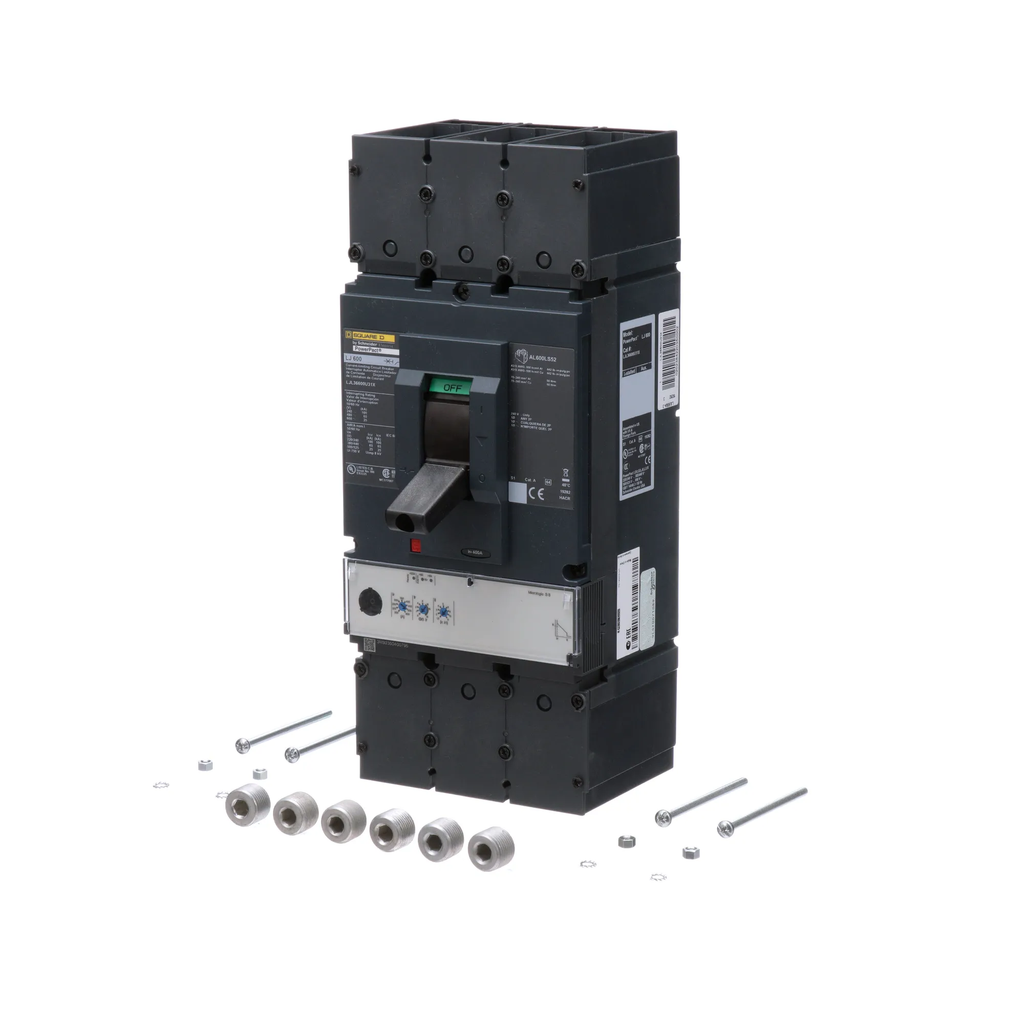

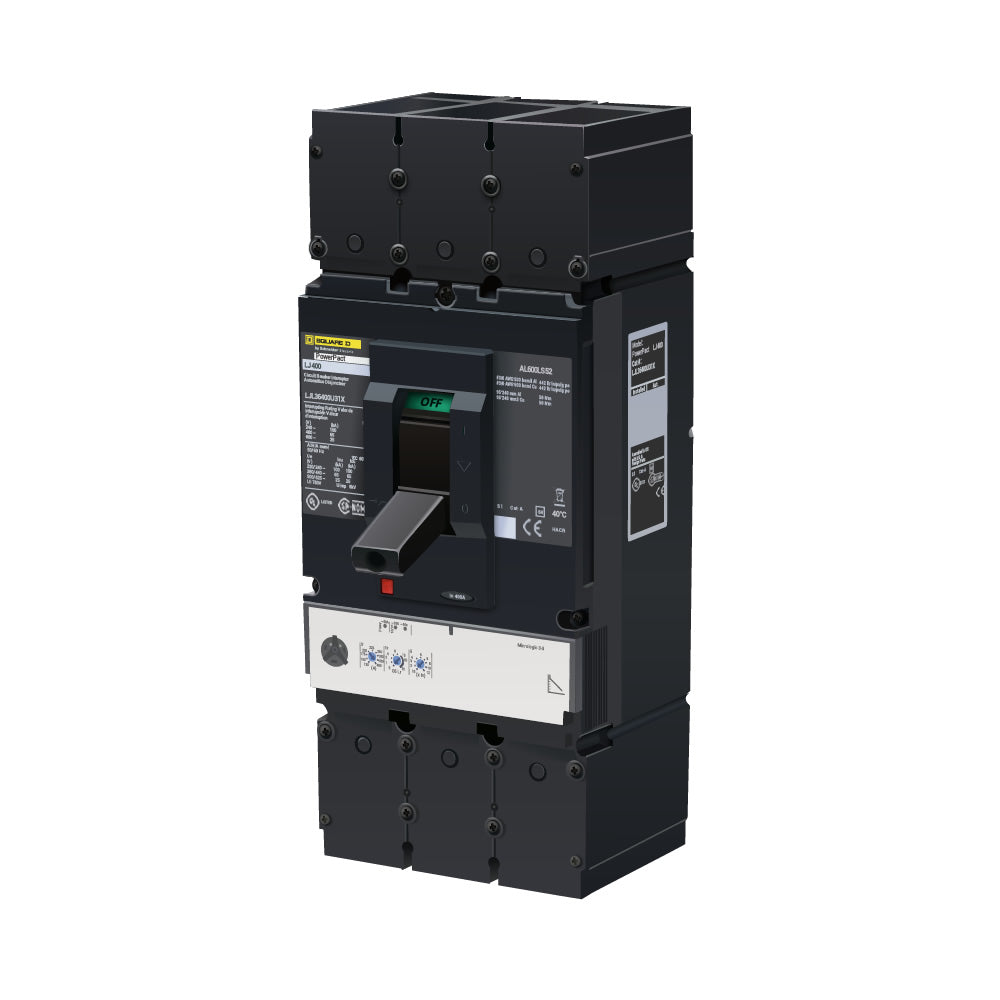

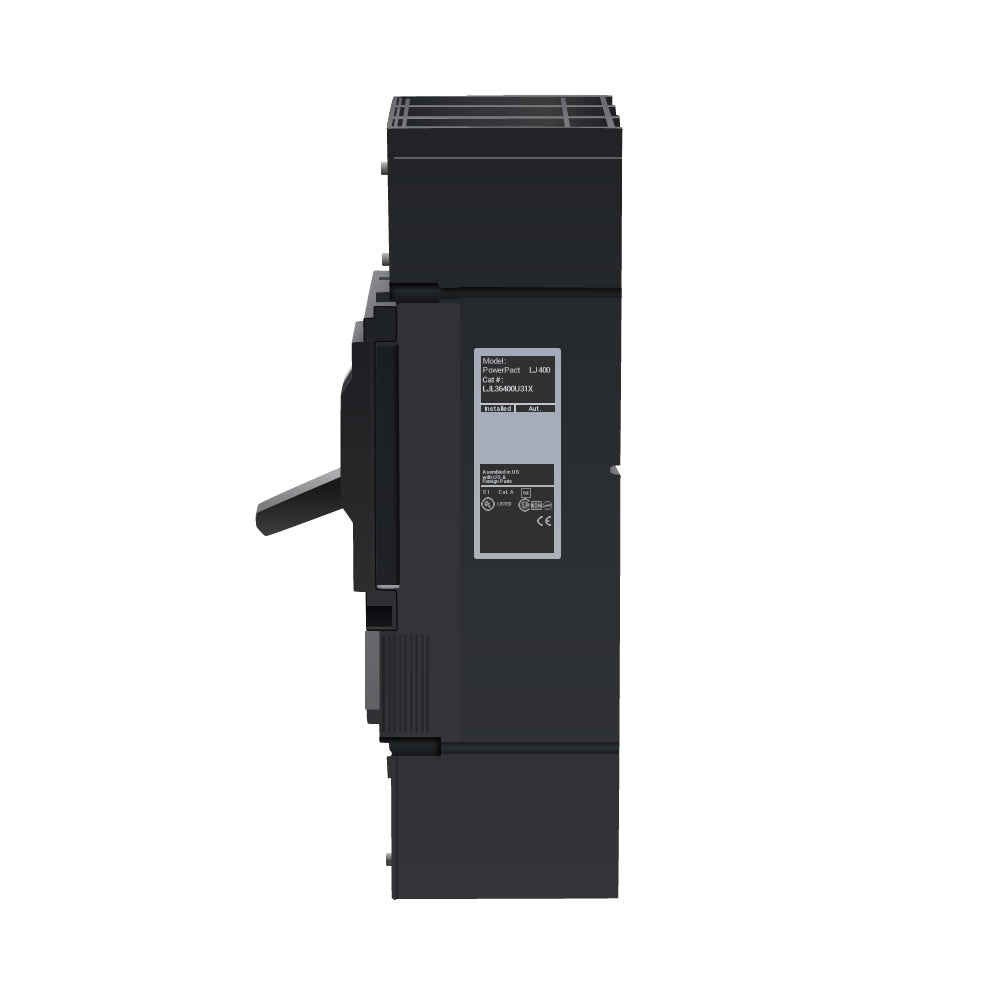

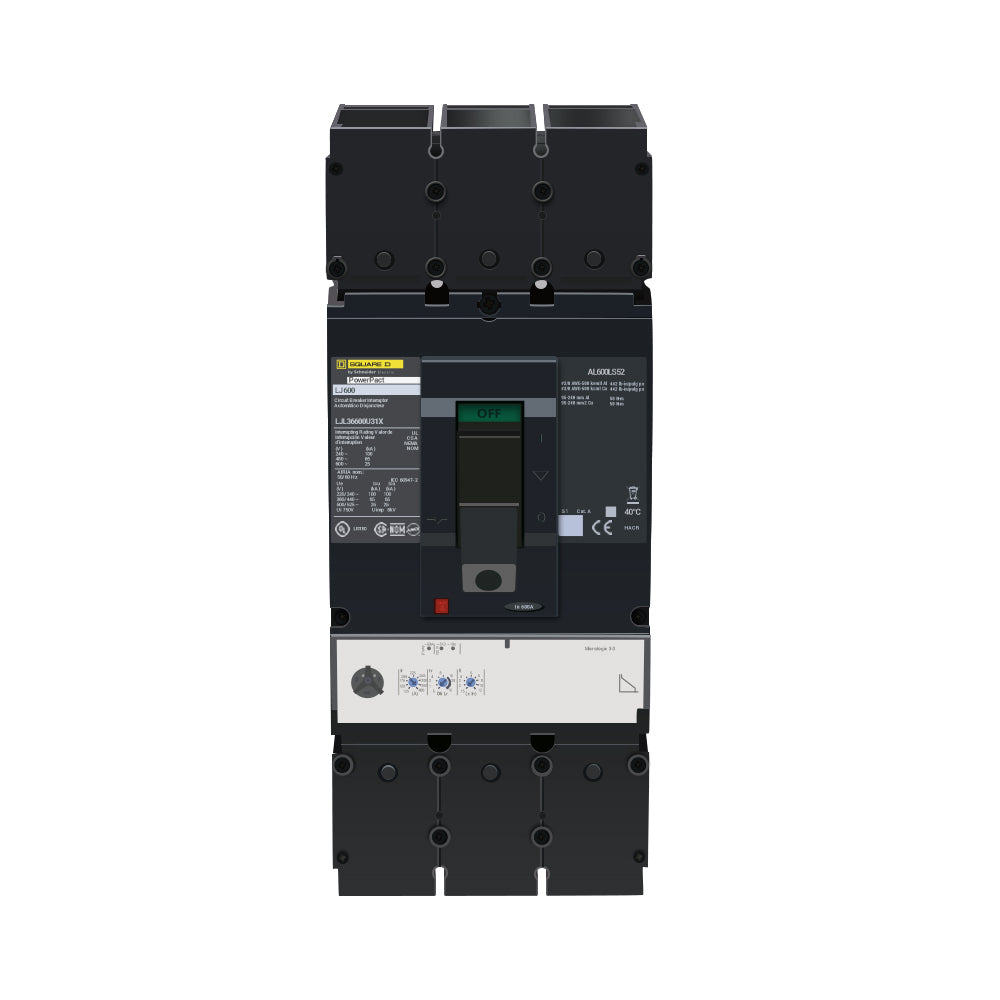

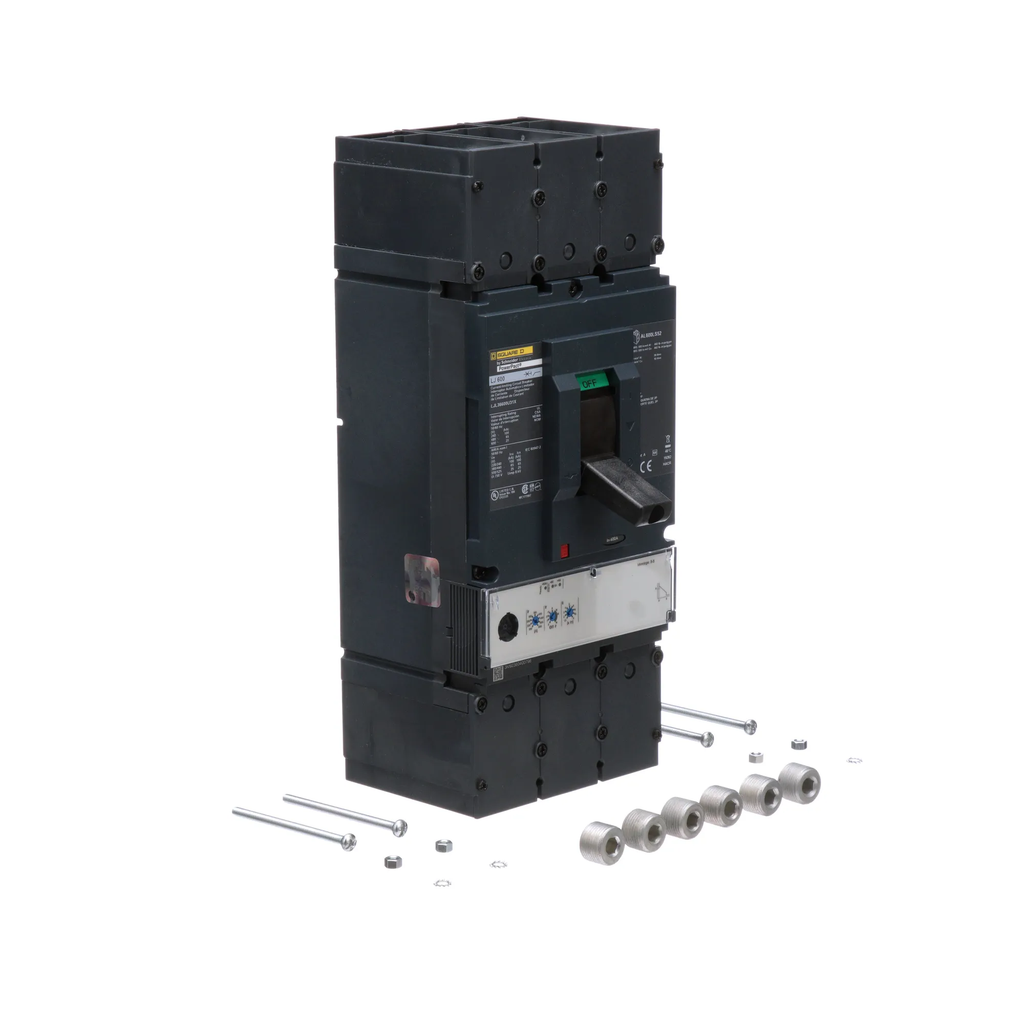

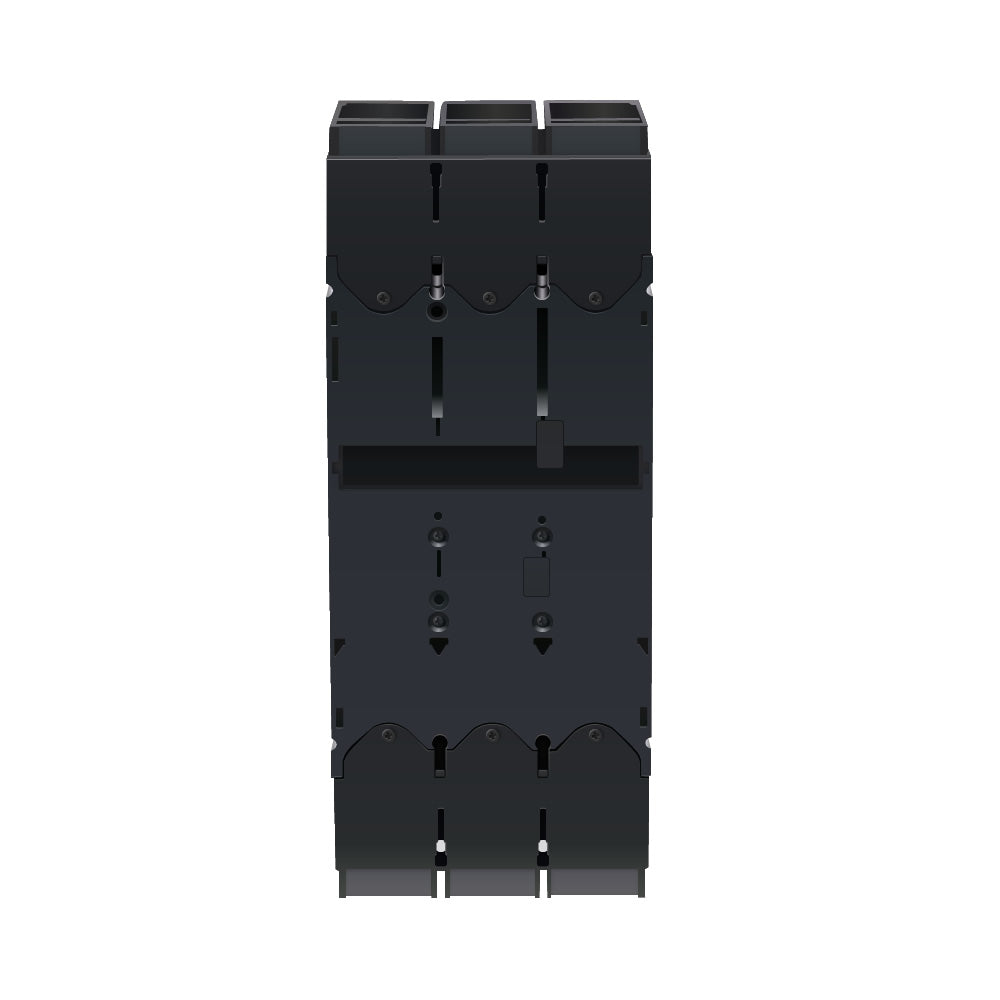

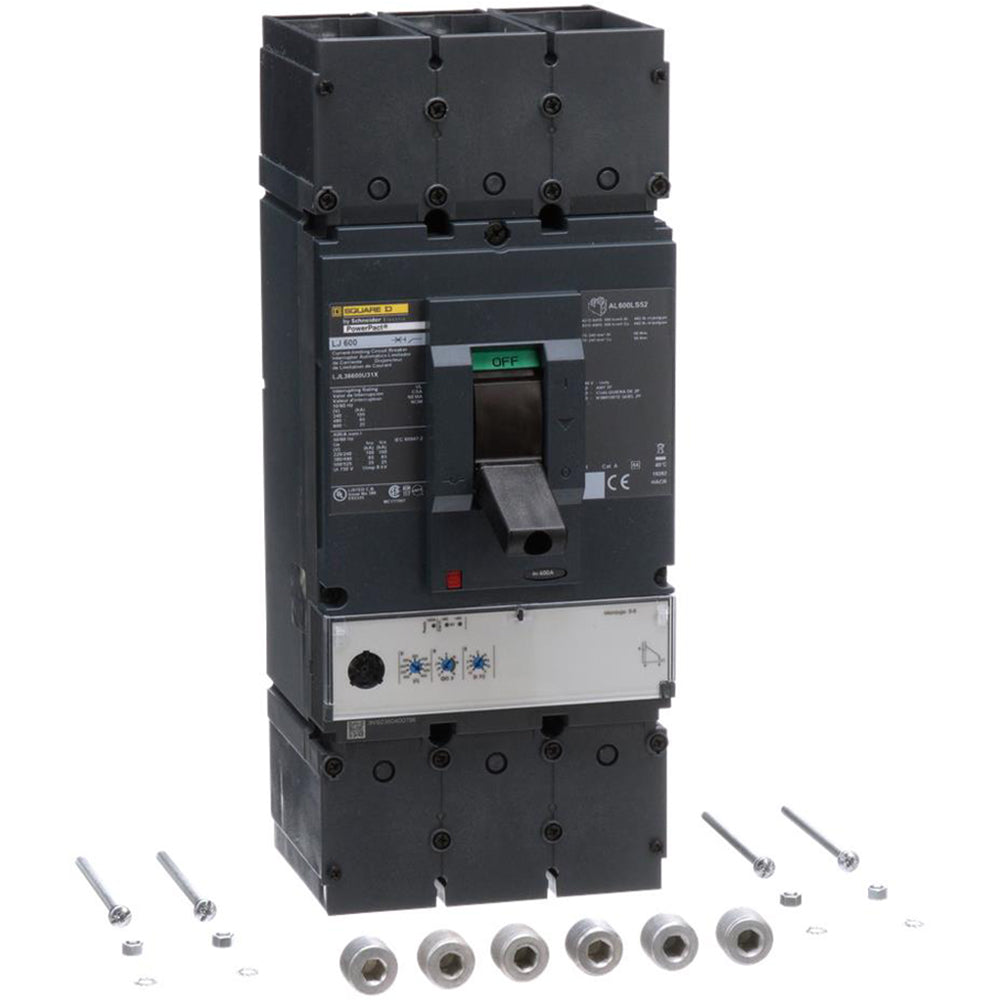

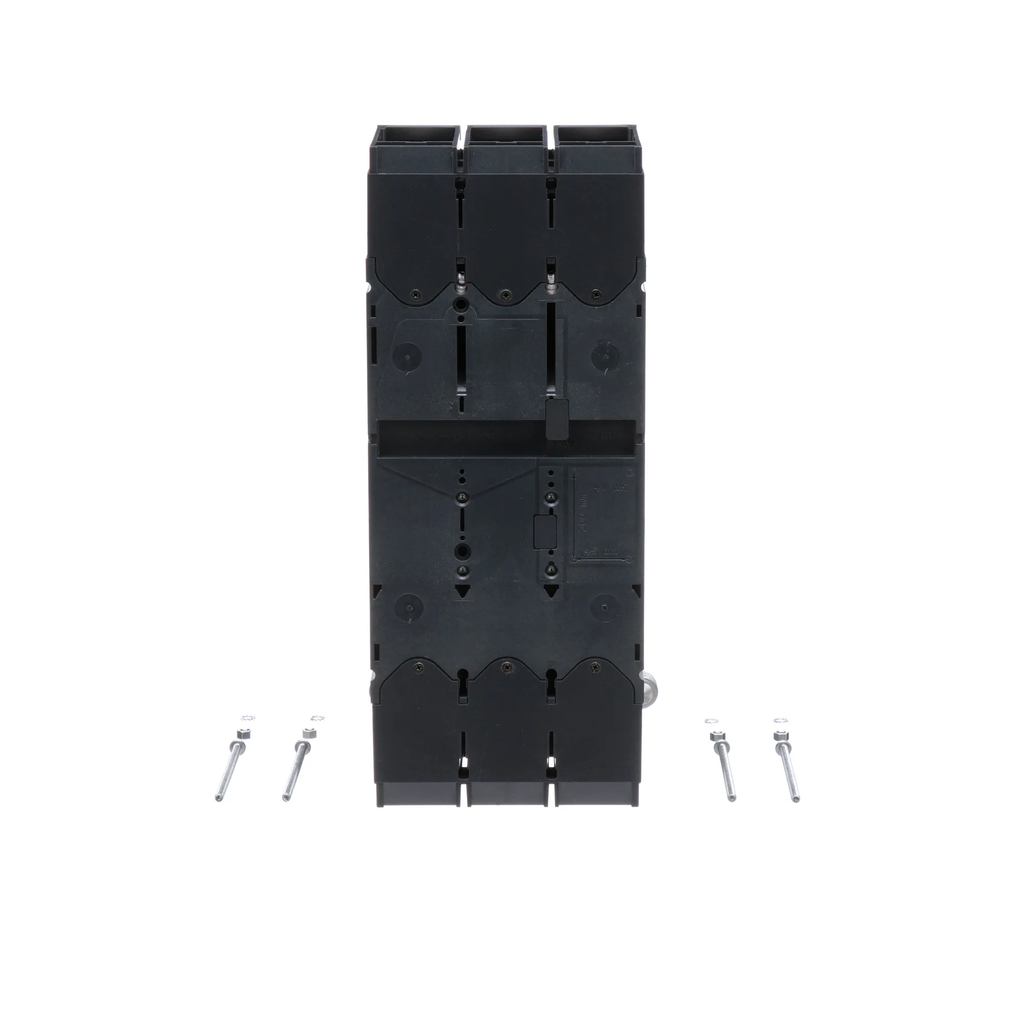

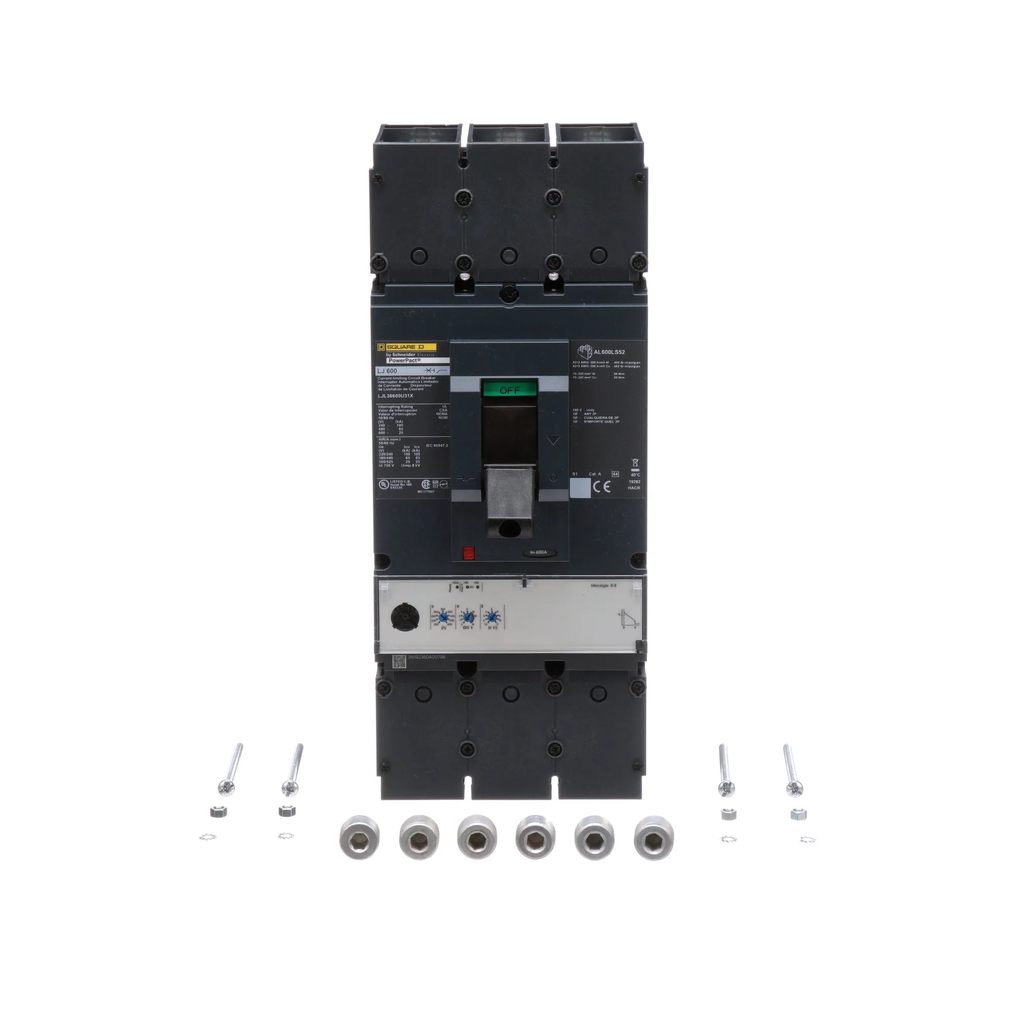

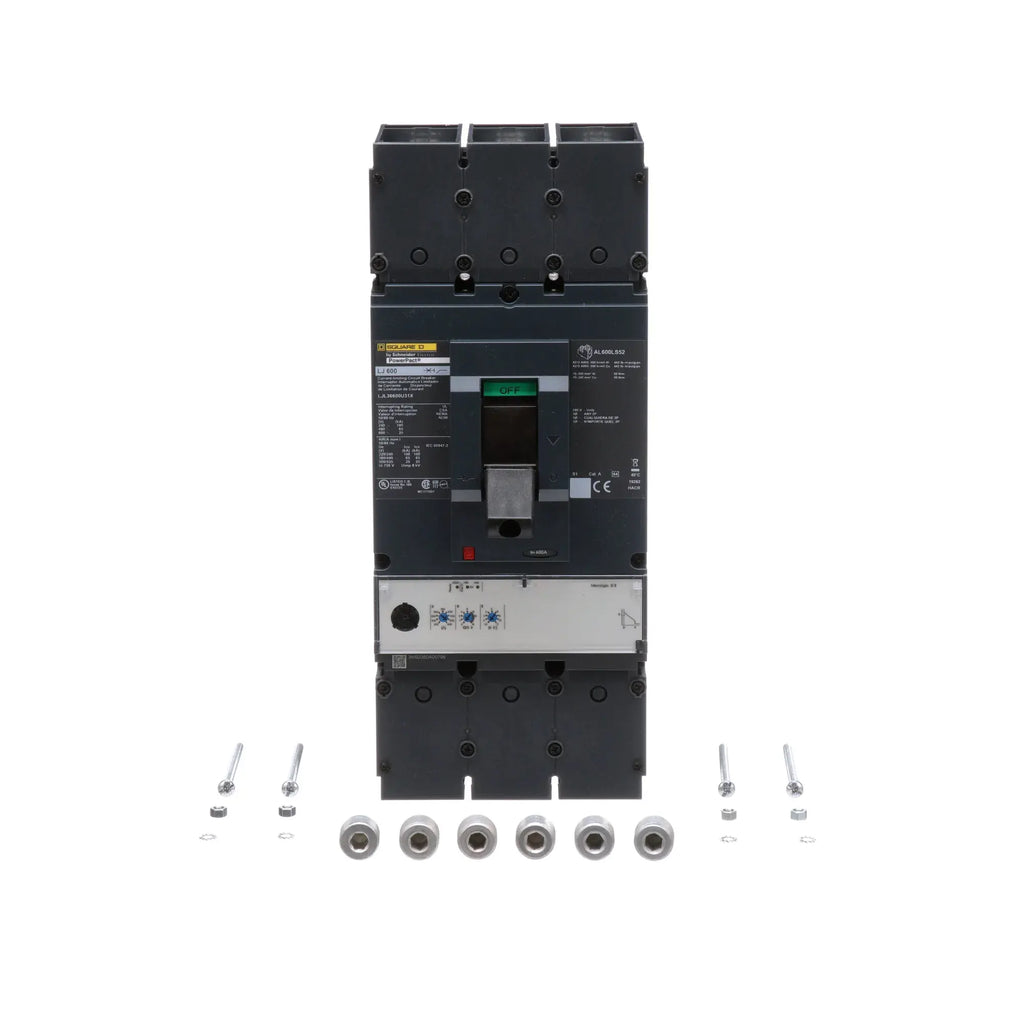

LJL36600U31X is a Square D PowerPact L frame, 3 pole, 600 amp molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.
This breaker features a solid-state Micrologic 3.3 LI electronic trip unit, providing precise overload and short-circuit protection. It is rated for 480Y/277VAC and 600VAC systems, with an interrupting capacity of 100kA at 240VAC and 65kA at 480VAC. The unit mount (I-Line) design allows for flexible panel integration, and it accepts 2/0 AWG to 500 kcmil aluminum or copper conductors. The LJL36600U31X is UL, CSA, CE, IEC, NMX, and CCC certified for global compliance and safety.
-
Key Specifications
- Amperage: 600A
- Voltage: 480Y/277VAC, 600VAC
- Poles: 3
- Mounting Type: I-Line, Unit Mount
- Interrupt Rating: 100kA at 240VAC, 65kA at 480VAC, 25kA at 600VAC
- Series/Frame: PowerPact L (LJL)
- Trip Unit: Micrologic 3.3 LI, Electronic
- Wire Range: 2/0 AWG to 500 kcmil (Al/Cu)
- Frequency: 50/60 Hz
- Approvals: UL, CSA, CE, IEC, NMX, CCC
- Dimensions: 5.5 in W x 6.(more...)
Additional Information
complete with 110-130V shunt trip
Specifications
- Part Number: LJL36600U31X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LJL
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : L Frame
- Temp Rating : 28-158 ¡F (-2-70 ¡C)
- MCM Size : Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
- Protection : Solid State
Product Data
- UPC : 785901891635
- GTIN : 00785901891635
- Country of Origin : United States

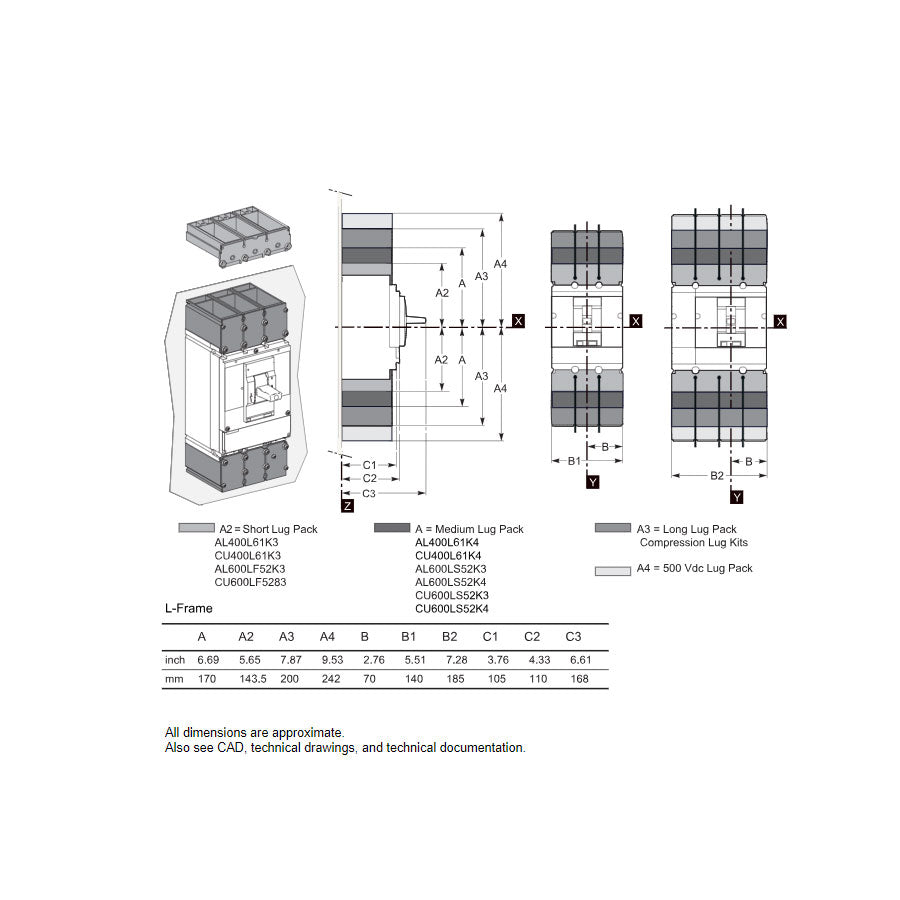

- Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
- Weight : 17.031
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
