2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LJF36400CU33X

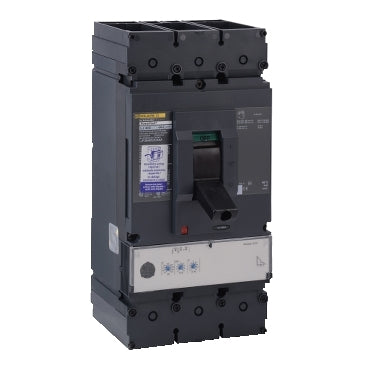

LJF36400CU33X is a Square D PowerPact L series molded case circuit breaker designed for industrial power distribution and panel protection applications. This 3-pole unit delivers reliable overload and short-circuit protection with solid state technology and advanced trip functions for demanding electrical systems.Key Specifications
- Amperage: 400 Amps
- Voltage: 600VAC
- Poles: 3
- Series: PowerPact L
- Interrupting Rating: 65kA at 480VAC
- Trip Unit: MicroLogic 3.3S
- Connection Type: I-Line Style Plug-In
- Certifications: UL 489, CSA, NEMA, CCC, IEC, CE
Specifications
- Part Number: LJF36400CU33X
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LJF
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : L Frame
- Protection : Solid State
Product Data
- Dimensions : Depth 4.33 in (110 mm) Width 5.51 in (140 mm) Height 13.39 in (340 mm)
- Weight : 20
