LJA36400U43X - Schneider Electric 400A 3-pole, 600 Vac, I-Line, Micrologic 5.xA LSI with ammeter

LJA36400U43X

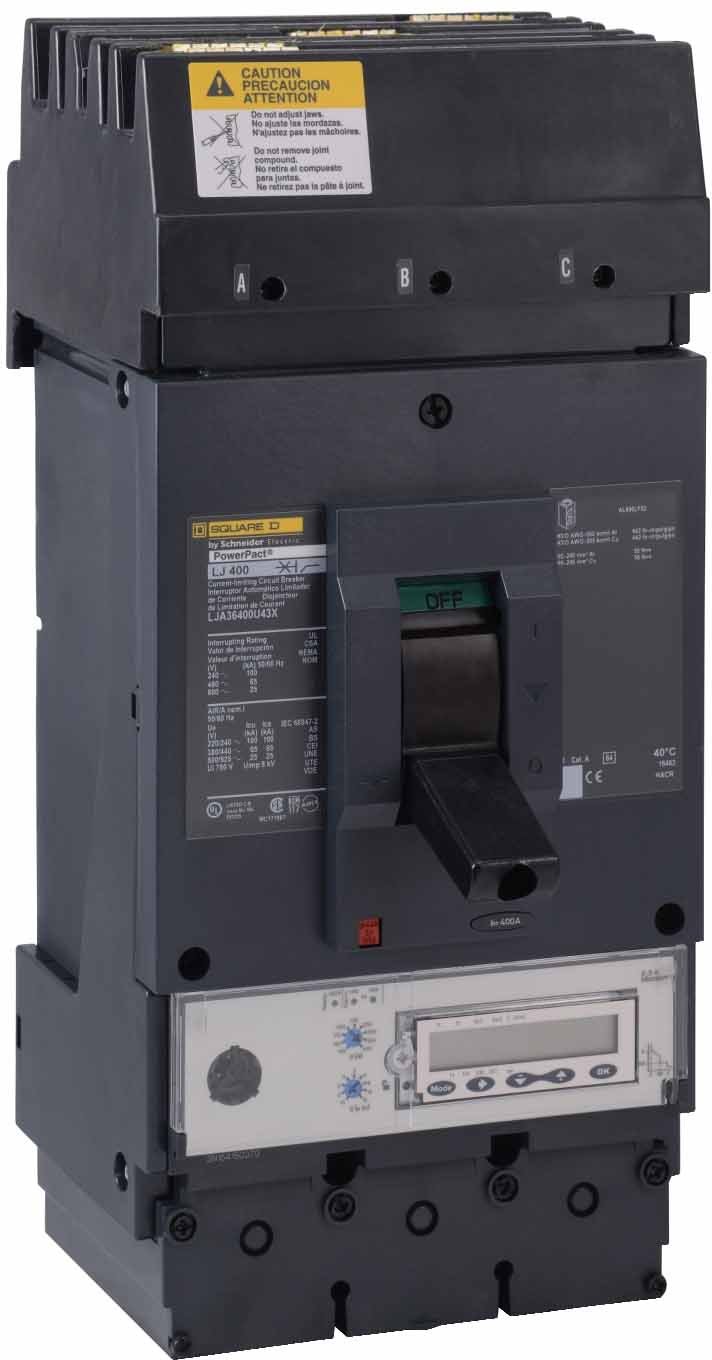

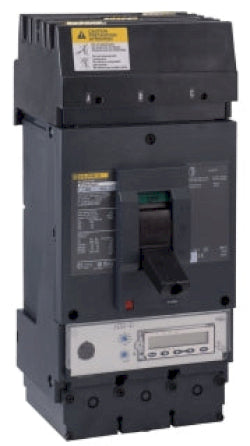

LJA36400U43X is a PowerPact L-Frame 400A 3-pole molded case circuit breaker for 600 Vac I-Line applications, providing electronic protection with Micrologic 5.xA LSI with ammeter. This LJA catalog variant features I-Line plug-on line terminations and load-side lugs for straightforward panelboard integration. Suffix decoding is included below to document the exact trip unit and factory options for this configured breaker.

• Frame: PowerPact L-Frame
• Poles: 3-pole
• Amperage: 400 A
• Voltage: 600 Vac
• Construction: I-Line line side, load lugs standard
• Trip unit: Micrologic 5.xA LSI with ammeter

Suffix meanings in this catalog number

• 80% rated continuous current (standard)
• I-Line plug-on line side; mechanical lugs on load side

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Terminal lug AL600LF52K3

Specifications

• Part Number: LJA36400U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LJA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 785901606611
• GTIN : 00785901606611
• Country of Origin : Mexico

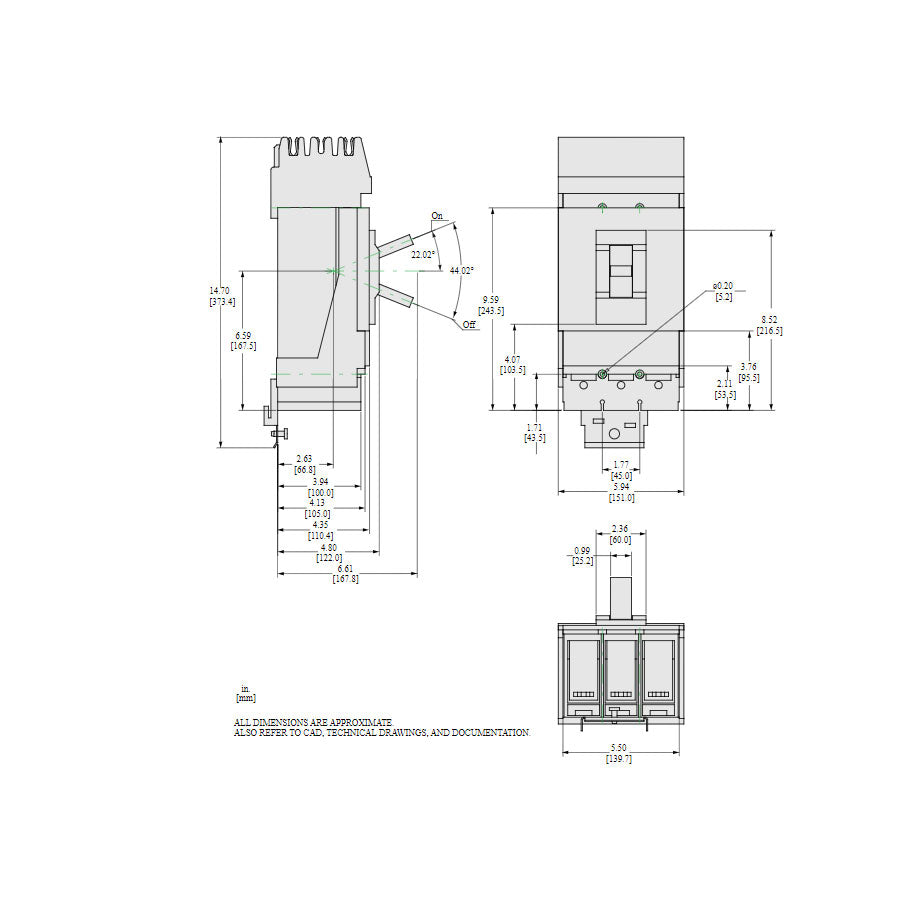

• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...500 kcmil aluminium/copper
