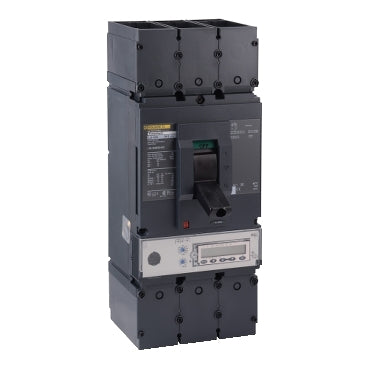

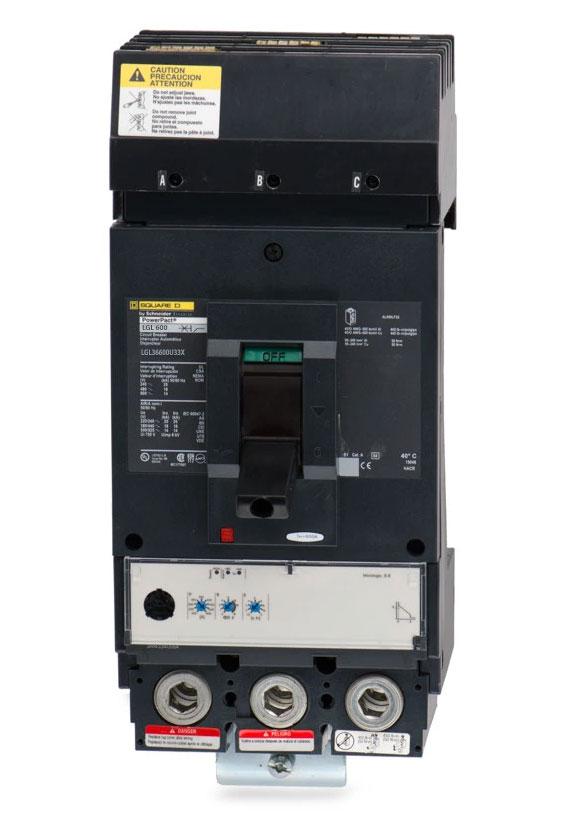

LGL36600U44X - Square D 600 Amp 3 Pole 600 Volt Molded Case Circuit Breaker Powerpact L Frame with Micrologic Trip Unit

LGL36600U44X

This Powerpact L Frame breaker features a 600 Amp rating, 3 poles, and a 600 Volt AC voltage rating. It includes a solid state Micrologic 6.3 trip unit with LSIG trip functions for precise protection. The breaker has a high interrupting rating of 18 kA at 600 VAC and is UL listed and CSA approved. It is a unit mount type with line and load side lug terminals, suitable for feed-thru applications and can be used in 2-pole configurations.

Key Specifications
• Amperage: 600 Amp
• Voltage: 600 Volt AC
• Poles: 3 Pole
• Frame: Powerpact L Frame
• Trip Unit: Micrologic 6.3 with LSIG functions
• Interrupt Rating: 18 kA at 600 VAC
• Mounting Type: Unit Mount
• Connection Type: Line and Load Side Lugs
• Certifications: UL Listed, CSA Approved
• Feed-Thru Capable
• Solid State Electronic Trip

At Essential Parts, we offer fast shipping, lowest(more...)


Specifications

• Part Number: LGL36600U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State



Product Data

• UPC : 785901954590
• GTIN : 00785901954590
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
