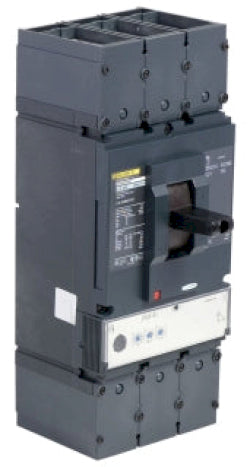

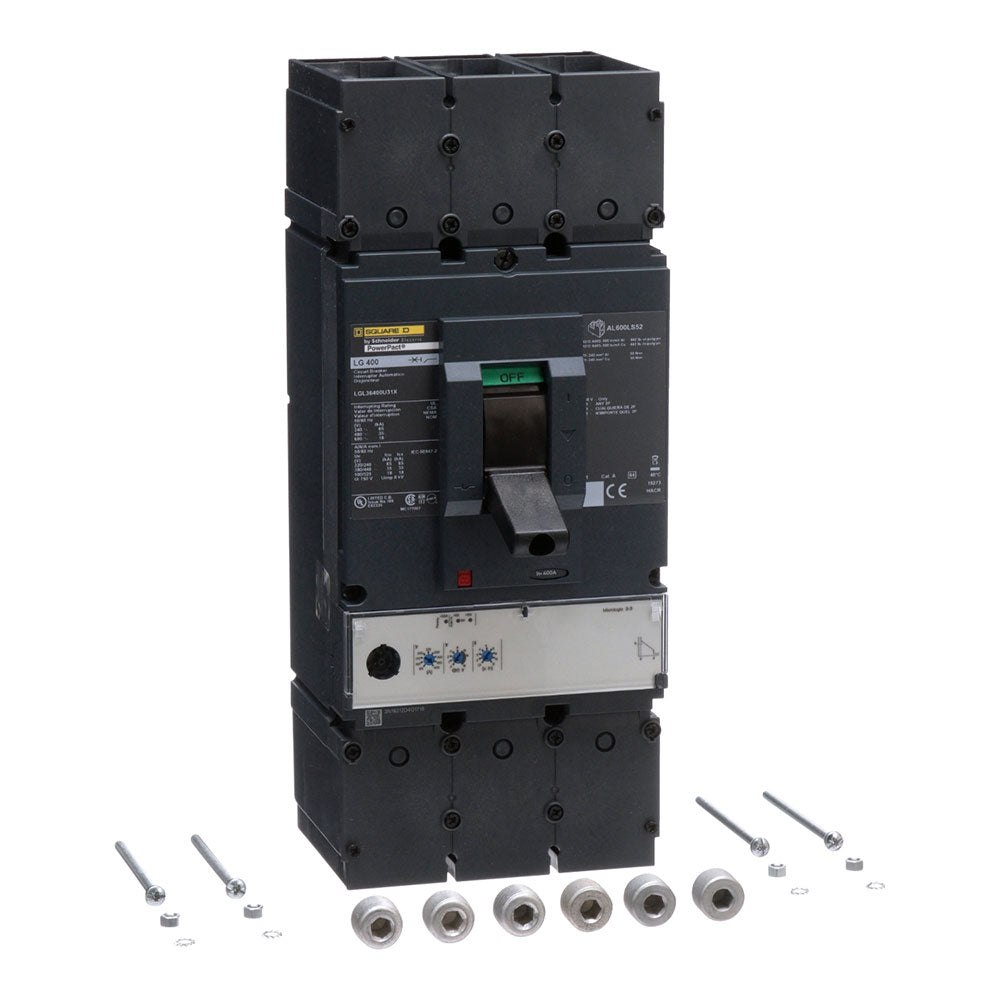

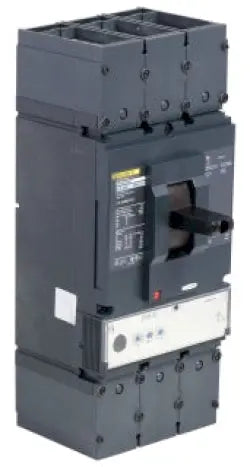

LGL36400U31X - Square D 400A 600V 3 Pole L-Frame Molded Case Circuit Breaker with MicroLogic Trip

LGL36400U31X

LGL36400U31X is a 3 pole, 400 amp, 600 volt L-Frame molded case circuit breaker from Square D designed for unit mounting.This circuit breaker features a MicroLogic 3.3 electronic trip unit providing advanced protection against overloads and short circuits. It has an interrupting rating of 18kA at 600VAC, 35kA at 480VAC, and 65kA at 240VAC. The breaker is UL 489, CSA, and CE certified, suitable for industrial and commercial applications requiring reliable power distribution protection.

• Amperage: 400A
• Voltage Rating: 600VAC
• Poles: 3
• Frame/Series: LGL (L-Frame)
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA at 600VAC
• Trip Unit: MicroLogic 3.3 Electronic
• Certifications: UL 489, CSA, CE
• Dimensions: 5.5" W x 6.61" D x 11.3" H
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGL36400U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• MCM Size : Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 78590163760
• GTIN : 00785901637608
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17.09 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
