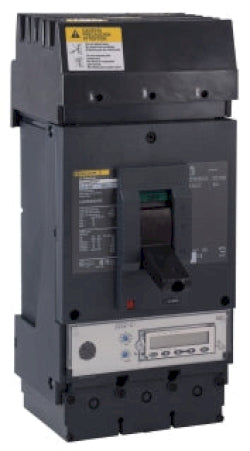

LGL36000S60X - Square D 600A 600VAC 3-Pole L Frame Circuit Breaker G Interrupt Rating

LGL36000S60X

LGL36000S60X is a 600 amp, 3-pole L Frame circuit breaker from Square D designed for reliable power distribution protection.

This molded case circuit breaker is UL 489 listed and features a G frame with a unit mount design. It supports up to 600 volts AC and offers interrupt ratings of 65 kA at 240 VAC, 35 kA at 480 VAC, and 18 kA at 600 VAC, ensuring high short-circuit withstand capability. The breaker is suitable for heavy-duty industrial and commercial applications requiring robust and durable circuit protection.

• Amperage: 600 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Frame Type: L Frame
• Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC, 18 kA @ 600 VAC
• Mounting Type: Unit Mount
• UL 489 Listed
• Manufacturer: Square D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGL36000S60X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : NA - No Overcurrent Protection
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 785901974574
• GTIN : 00785901974574
• Country of Origin : United States
• Dimensions : 13.38 in (339.85 mm) x 5.51 in (139.95 mm) x 6.61 in (167.89 mm) (Height x Width x Depth)
• Weight : 17.33
• Standards : UL, CSA, NEMA, NOM, IEC
• Certification : UL, CSA, NEMA, NOM, IEC
• Wire Size : x AWG 2/0...500 kcmil ( aluminium/copper )
