LGA36250U33X - Square D 250A 600V 3-Pole PowerPact L Molded Case Circuit Breaker with Micrologic 3.3S Trip Unit

LGA36250U33X

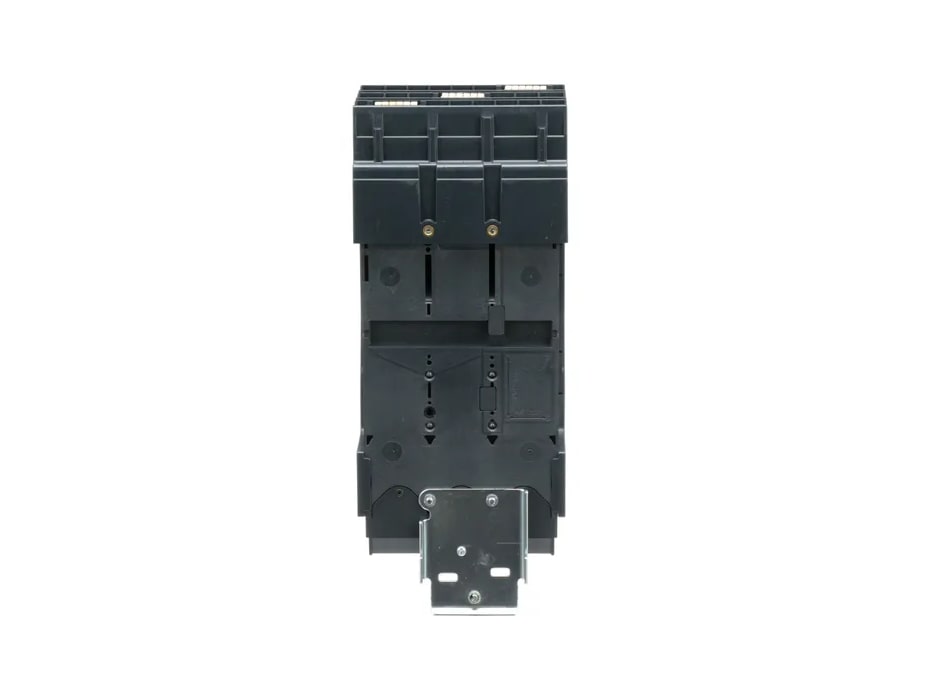

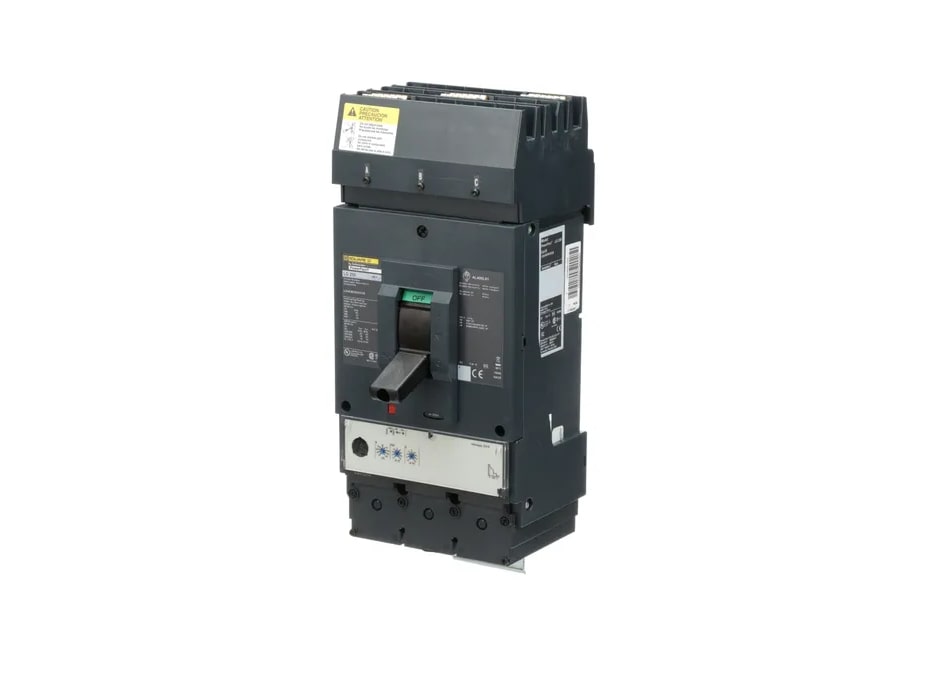

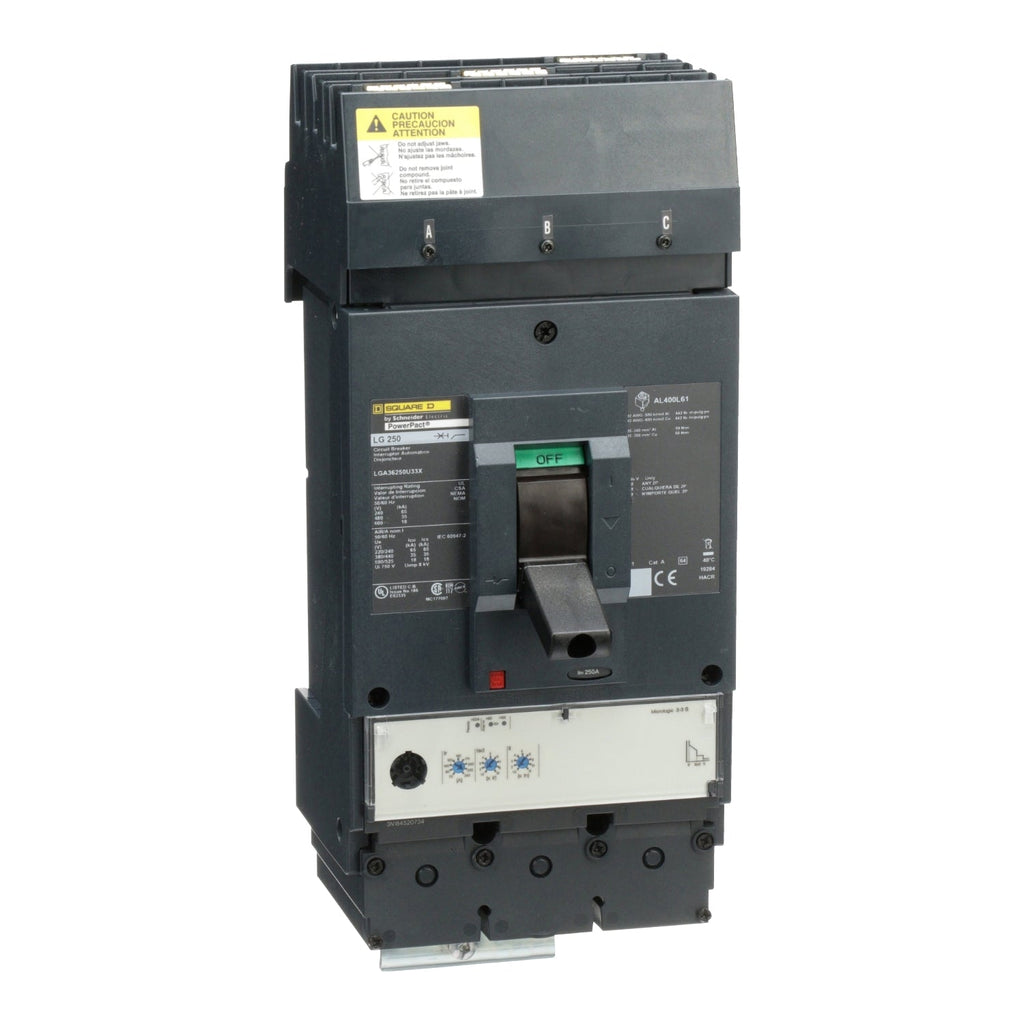

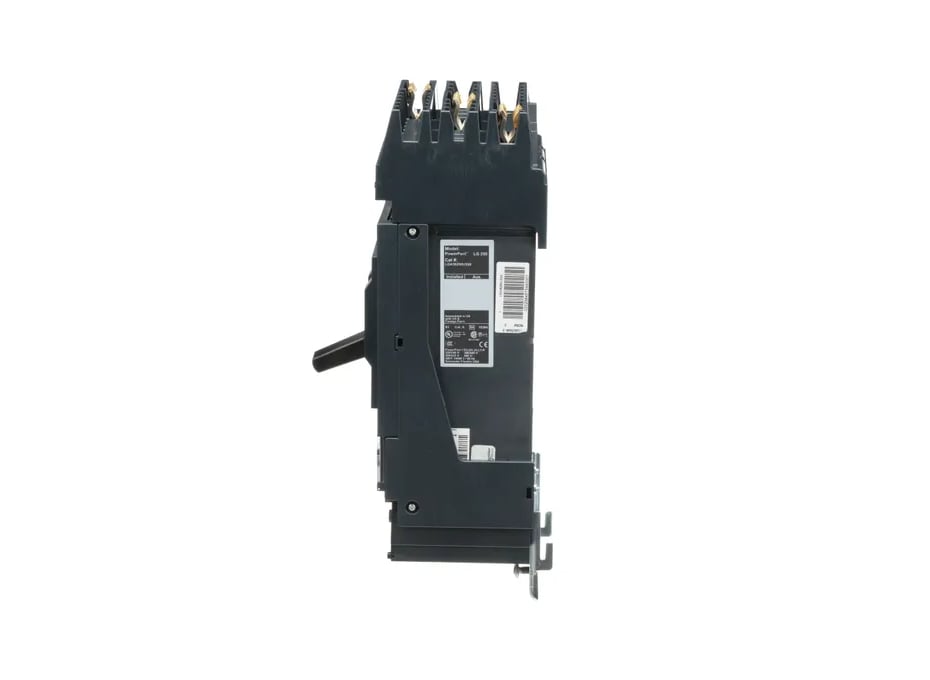

LGA36250U33X is a Square D PowerPact L molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.

This 3-pole breaker is rated for 250 amps and 600 volts AC, featuring an I-Line frame and equipped with a Micrologic 3.3S trip unit for advanced electronic protection. It offers interrupt ratings of 65 kA at 240 VAC, 35 kA at 480 VAC, and 18 kA at 600 VAC, ensuring robust fault current interruption capability. The breaker is suitable for 3-phase power systems and complies with industry standards for safety and performance.

• Amperage: 250 A
• Voltage Rating: 600 V AC
• Poles: 3
• Frame/Series: PowerPact L, I-Line
• Trip Unit: Micrologic 3.3S
• Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC, 18 kA @ 600 VAC
• Phase: 3
• Mounting Type: I-Line

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGA36250U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• MCM Size : Min. Wire Size 2 AWG (Cu/Al) Max. Wire Size 600 kcmil (Cu), 500 kcmil (Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901702627
• GTIN : 00785901702627
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 2...600 kcmil copper
  AWG 2...500 kcmil aluminium
