LDL36400U33X - Square D 400 Amp 600VAC 3 Pole PowerPacT L Frame Circuit Breaker with LSI Trip

Save $3,176.13
SKU: LDL36400U33X-New
Condition: New
Price:
$2,214.87 $5,391.00
Stock:
23 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

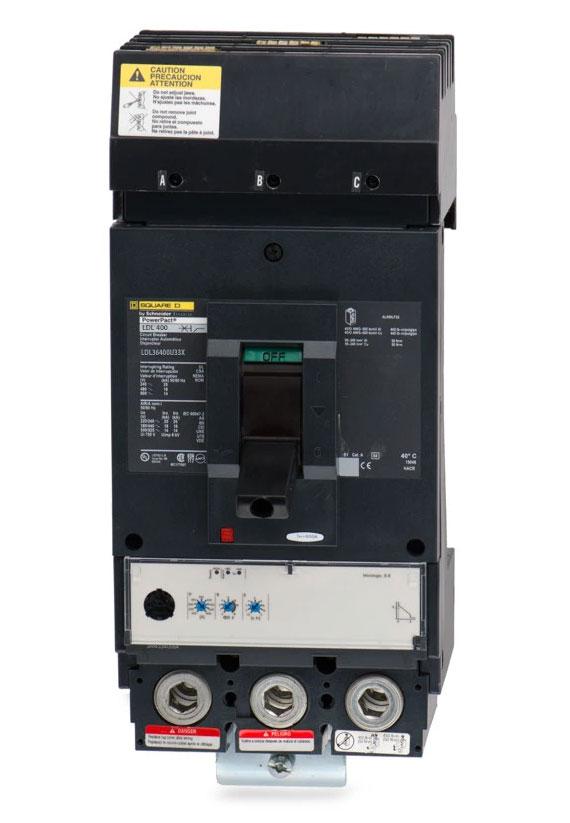

LDL36400U33X - Schneider Electric/ Square D Feed-Thru 400 Amp 3 Pole Circuit Breaker - Essential Electric Supply

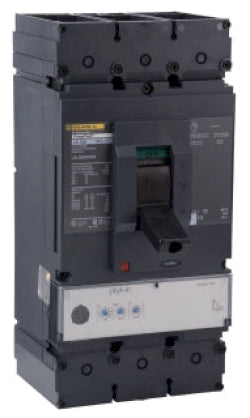

LDL36400U33X - Square D 400 Amp 600VAC 3 Pole PowerPacT L Frame Circuit Breaker with LSI Trip - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LDL36400U33X - Schneider Electric/ Square D Feed-Thru 400 Amp 3 Pole Circuit Breaker - Essential Electric Supply
LDL36400U33X - Square D 400 Amp 600VAC 3 Pole PowerPacT L Frame Circuit Breaker with LSI Trip - Essential Electric Supply

Description

LDL36400U33X


LDL36400U33X is a Square D PowerPacT L Frame molded case circuit breaker designed for robust electrical protection in industrial and commercial applications.This 3 pole circuit breaker features a 400 Amp current rating and operates at 600VAC. It includes advanced LSI (Long Time, Short Time, and Instantaneous) trip functions for precise protection. The breaker has a unit mount type with feed-thru connection and line and load side lug terminals. It offers an interrupting rating of 18kAIC at 480VAC and complies with CE, UL, CSA, NEMA, NOM, and IEC certifications.
    Key Specifications
    • Amperage: 400 Amp
    • Voltage: 600VAC
    • Poles: 3
    • Frame Type: PowerPacT L (LDL)
    • Mounting Type: Unit Mount
    • Interrupting Rating: 18kAIC at 480VAC
    • Trip Unit: LSI (Long Time, Short Time, Instantaneous)
    • Connection Type: Feed-Thru
    • Terminal Connection: Line and Load Side Lug
    • Certifications: CE, UL, CSA, NEMA, NOM, IEC
    • Color: Black
    • Actuator Type: Toggle
At Essential Parts, we offer fast shipping<(more...)

Specifications

  • Part Number: LDL36400U33X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : LDL
  • Voltage : 600
  • Amperage : 400
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LSI - Long Time, Short Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : L Frame
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • Protection : Solid State

Product Data

  • UPC : 078590195435
  • GTIN : 00785901954354
  • Country of Origin : Mexico
  • Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight : 15 lb
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper

Accesories

Part Manufacture Sub Category
S32631
S29452
S29450
S29394
S29407
S29410
AL400L61K3
