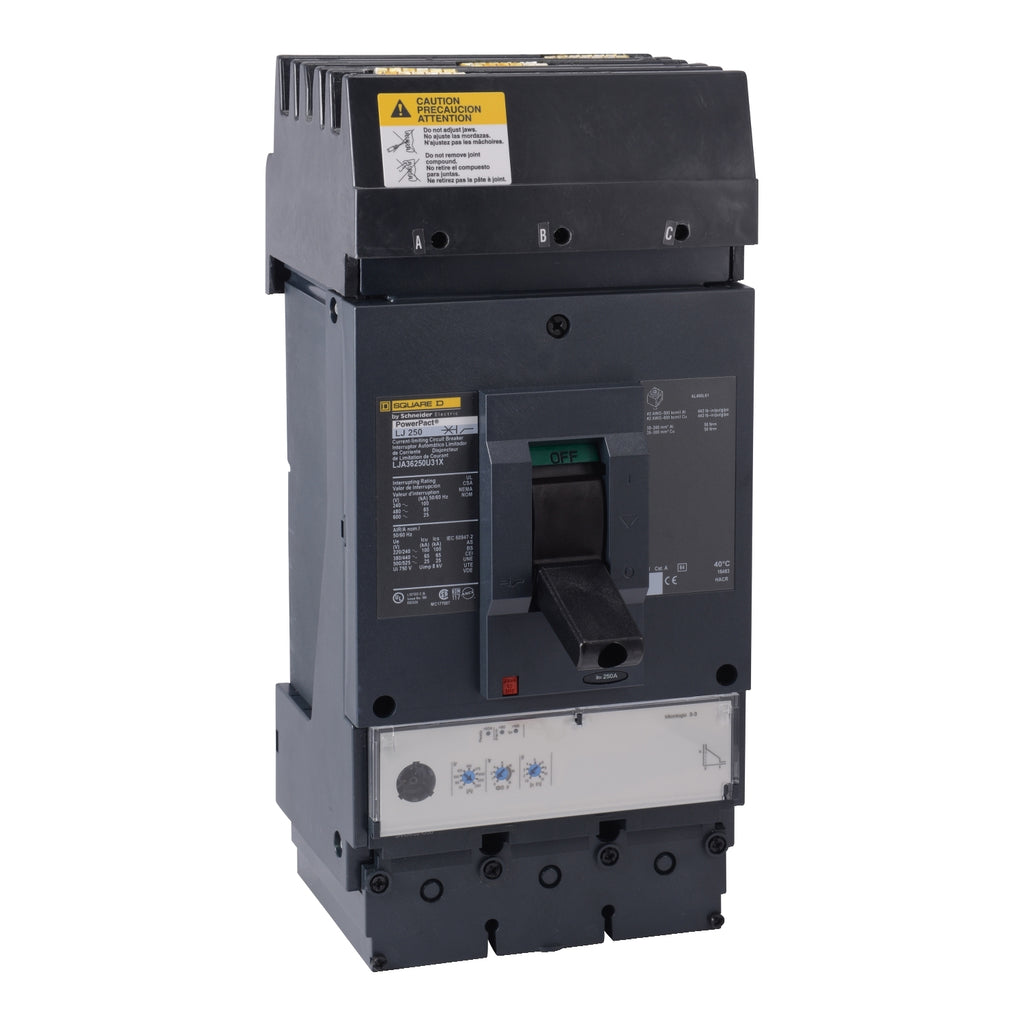

LDA36250U31X - Square D PowerPact L Circuit Breaker 250A 3 Pole 600VAC 14kA I-Line MicroLogic 3.3

LDA36250U31X

LDA36250U31X is a Square D PowerPact L series molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole, 250A, 600VAC breaker features an interrupt rating of 14kA at 600VAC and is equipped with a MicroLogic 3.3 trip unit for precise overload and short circuit protection. The breaker is designed for I-Line mounting and is suitable for use in a wide range of power distribution systems. The PowerPact L series offers robust construction, easy installation, and compatibility with a variety of accessories. It provides protection from overloads and short circuits, ensuring safety and reliability in demanding environments. The MicroLogic 3.3 trip unit allows for adjustable trip settings and supports open protocols for enhanced system management.

• Part Number: LDA36250U31X
• Manufacturer: Square D
• Series/Frame: PowerPact L
• Amperage: 250A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 14kA @ 600VAC
• Mounting Type: I-Line
• Trip Unit: MicroLogic 3.3
• Certifications: UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC, CE(more...)


  Specifications

  • Part Number: LDA36250U31X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : LDA
  • Voltage : 600
  • Amperage : 250
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : L Frame
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • Protection : Solid State



  Product Data

  • UPC : 606486283700
  • GTIN : 03606490000000
  • Country of Origin : United States
  • Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight : 17
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 2...600 kcmil copper
    AWG 2...500 kcmil aluminium
