Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
LD3600X

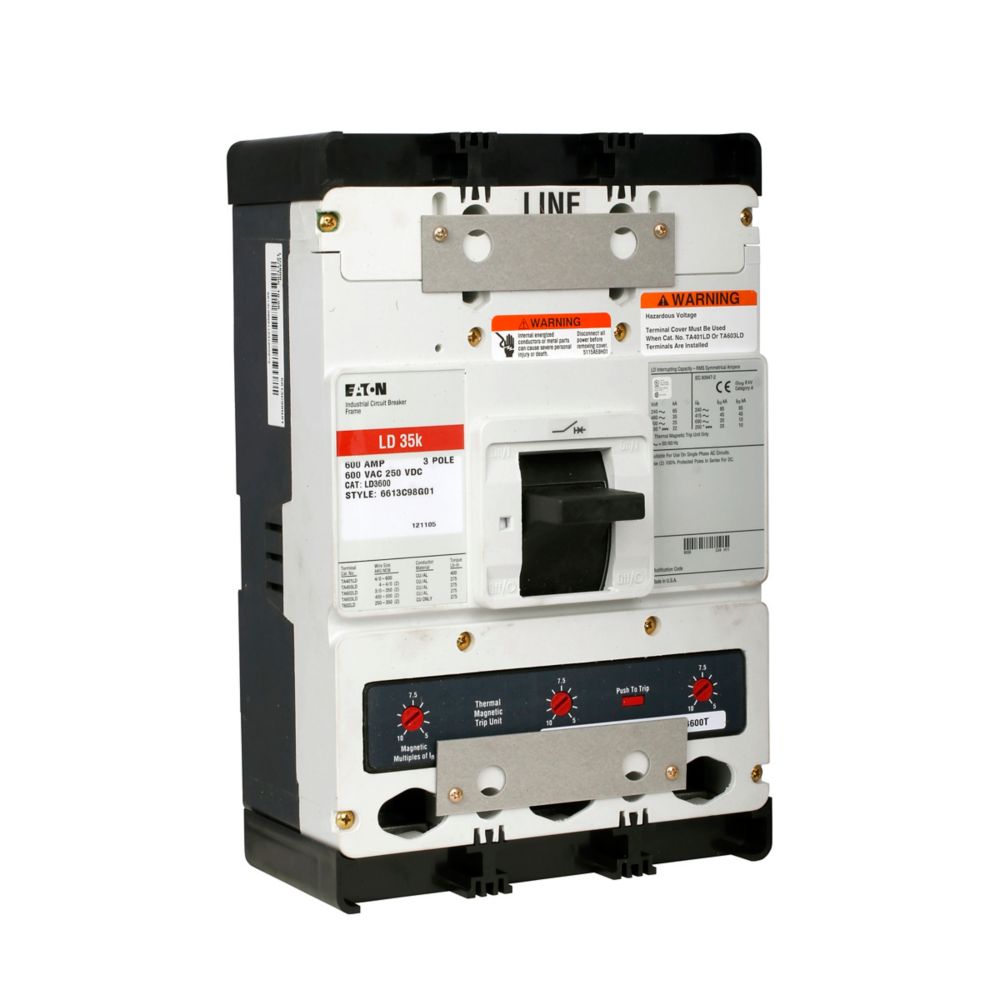

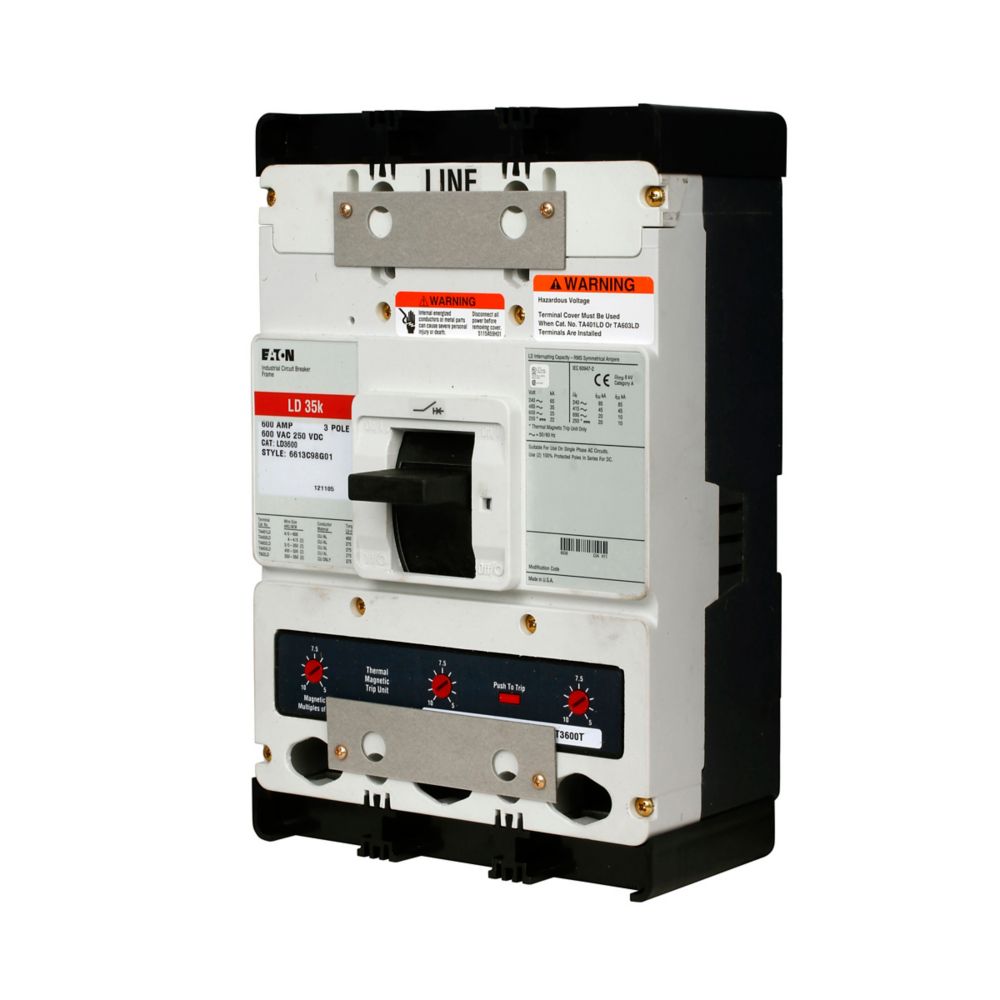

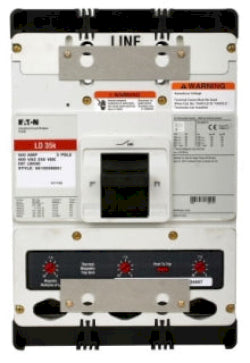

LD3600X is an Eaton Series C complete molded case circuit breaker designed for reliable circuit protection.This L-frame breaker features a fixed thermal and fixed magnetic trip unit, rated for 600 amps and 600 volts AC, with three poles. It provides a high interrupt rating of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC, suitable for demanding industrial applications. The breaker is constructed with aluminum terminals for line and load connections and operates at 50/60 Hz frequency.
- Amperage Rating: 600 A
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: Three-pole
- Frame Type: L-frame
- Series: Series C
- Trip Unit: Fixed thermal, fixed magnetic
- Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
- Terminals: Line and load, aluminum
- Frequency Rating: 50 to 60 Hz
- Circuit Breaker Type: Complete breaker
- Certifications: UL 489
Specifications
- Part Number: LD3600X
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : LD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 782114750001
- GTIN : 00782114750001
- Country of Origin : United States
- Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
- Weight : 20.12
- Certification : UL 489
