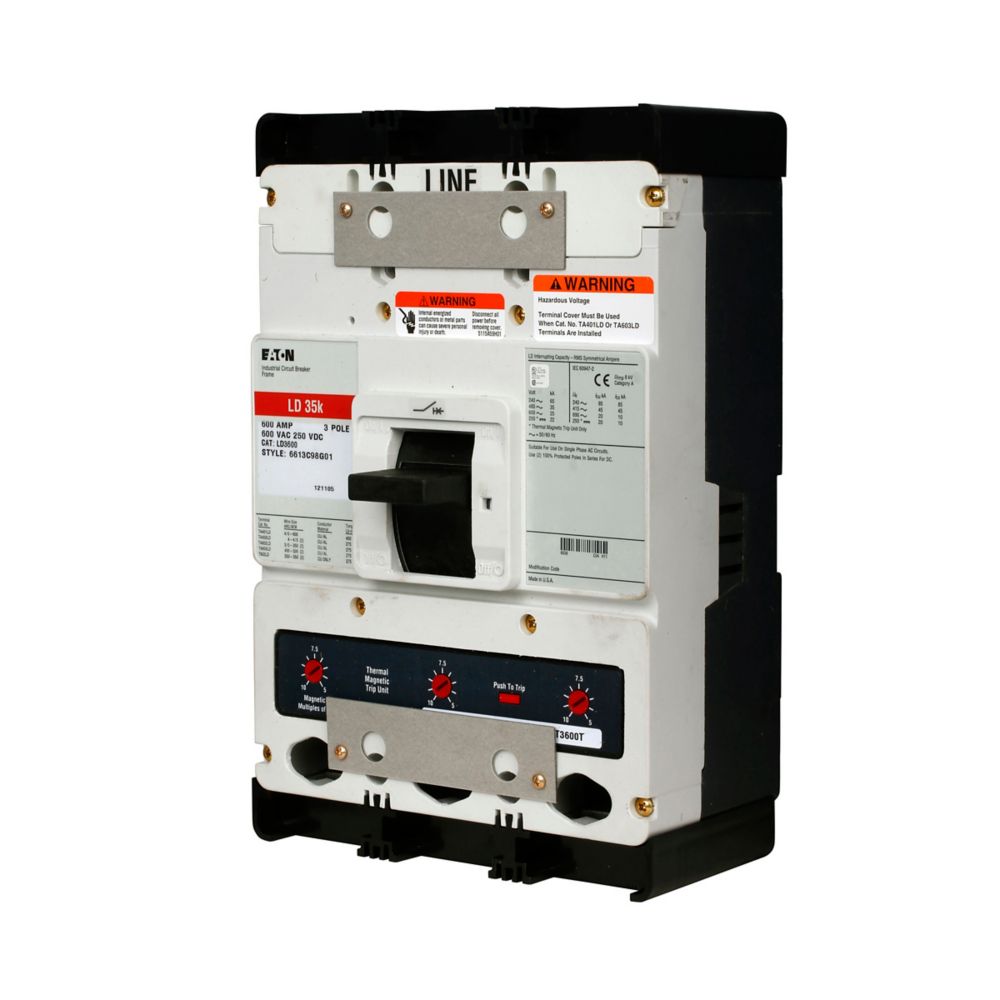

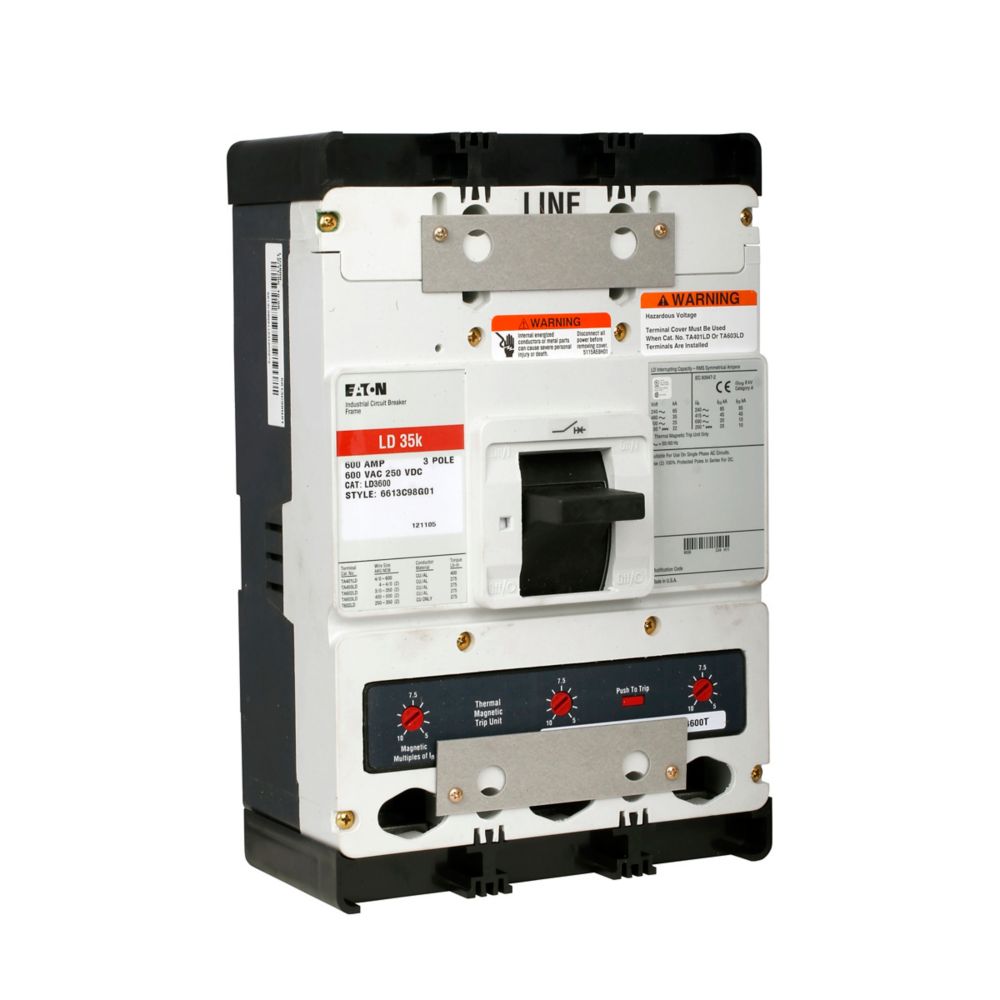

LD3600K - Cutler Hammer 600A 600VAC 3 Pole Molded Case Circuit Breaker Series C L Frame

LD3600K

LD3600K is a Cutler Hammer 600A, 600VAC, 3 pole molded case circuit breaker from the Series C L frame family.This molded case switch features a fixed thermal and magnetic trip type (T186) with an interrupt rating of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC. It supports line and load aluminum terminals, is rated for 50/60 Hz frequency, and is UL 489 certified. The breaker is designed for bolted-on mounting and measures 8.25 inches in all dimensions.

Key Specifications
• Amperage: 600 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 65 kAIC at 240 VAC, 35 kAIC at 480 VAC
• Series/Frame: Series C, L Frame
• Trip Unit: Fixed Thermal/Magnetic (T186)
• Mounting Type: Bolted-On
• Terminal Material: Aluminum
• Frequency: 50/60 Hz
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LD3600K
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : LD
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : NA - No Overcurrent Protection
• Frame Size : L Frame
• Protection : Non-Automatic

Product Data

• UPC : 786679561904
• GTIN : 00786679561904
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 19.45
• Certification : UL 489
