LD3600C - Eaton 600A 600Vac 3-Pole L-Frame Molded Case Circuit Breaker Fixed Thermal Magnetic Trip

LD3600C

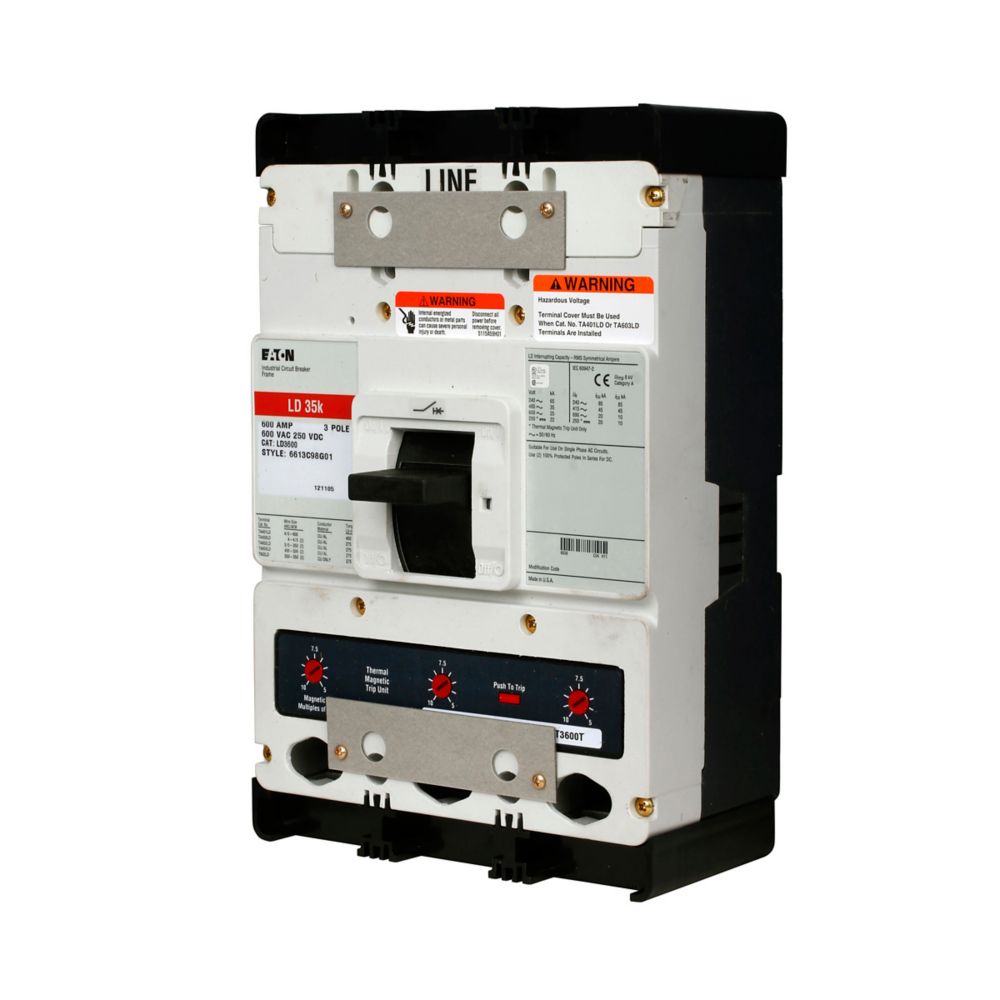

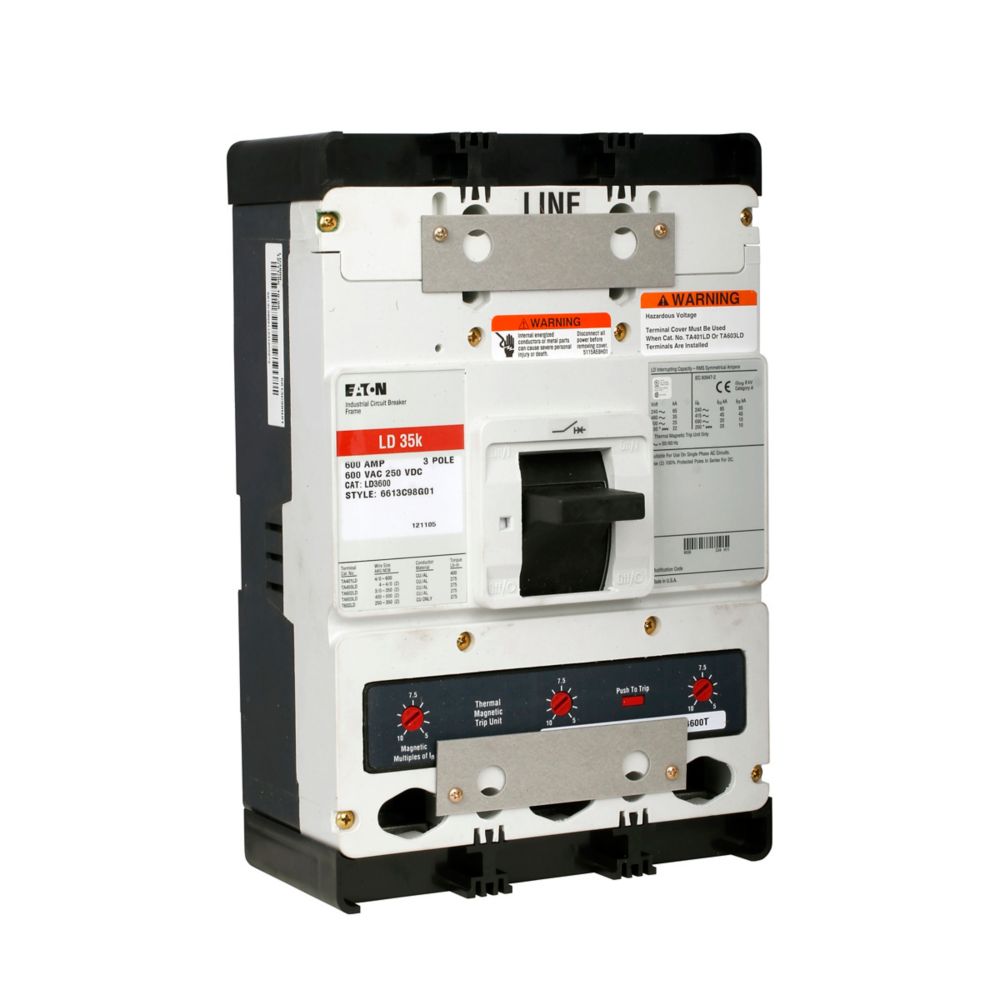

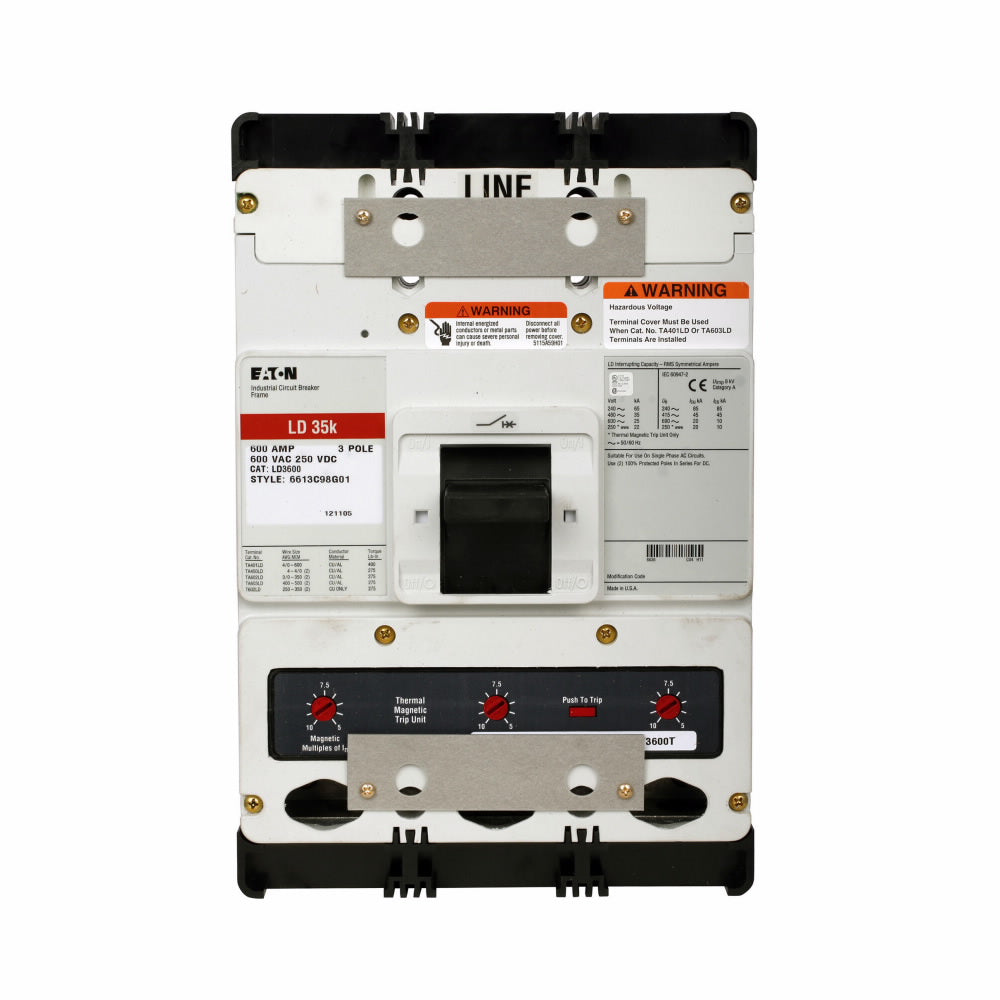

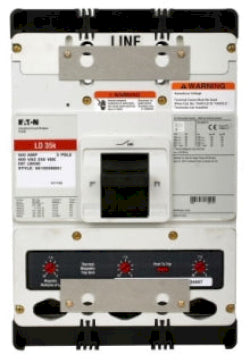

LD3600C is a three-pole, 600A, 600Vac molded case circuit breaker from Eaton's Series C, designed for reliable protection in commercial and industrial power distribution systems. This L-frame breaker features a fixed thermal and fixed magnetic trip unit for consistent performance and safety. The LD3600C is built with a complete breaker frame and is rated for 600Vac and 250Vdc, with an interrupt rating of 65 kAIC at 240Vac and 35 kAIC at 480Vac. It is suitable for 50/60 Hz applications and includes aluminum line and load terminals for secure connections.

• Part Number: LD3600C
• Manufacturer: Eaton
• Amperage Rating: 600 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: Three-pole
• Frame Type: L-frame
• Series: Series C
• Mounting Type: Complete breaker
• Interrupt Rating: 65 kAIC at 240Vac, 35 kAIC at 480Vac
• Frequency Rating: 50 to 60 Hz
• Terminal Material: Aluminum
• Terminal Type: Line and load
• Tripping Type: Fixed thermal, fixed magnetic
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LD3600C
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : LD
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 782114858790
• GTIN : 00782114858790
• Country of Origin : United States
• Dimensions : 10.75 in x 8.25 in x 4.06 in (Length/Depth x Height x Width)
• Weight : 0.01
• Certification : UL 489
