Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
LD3600W

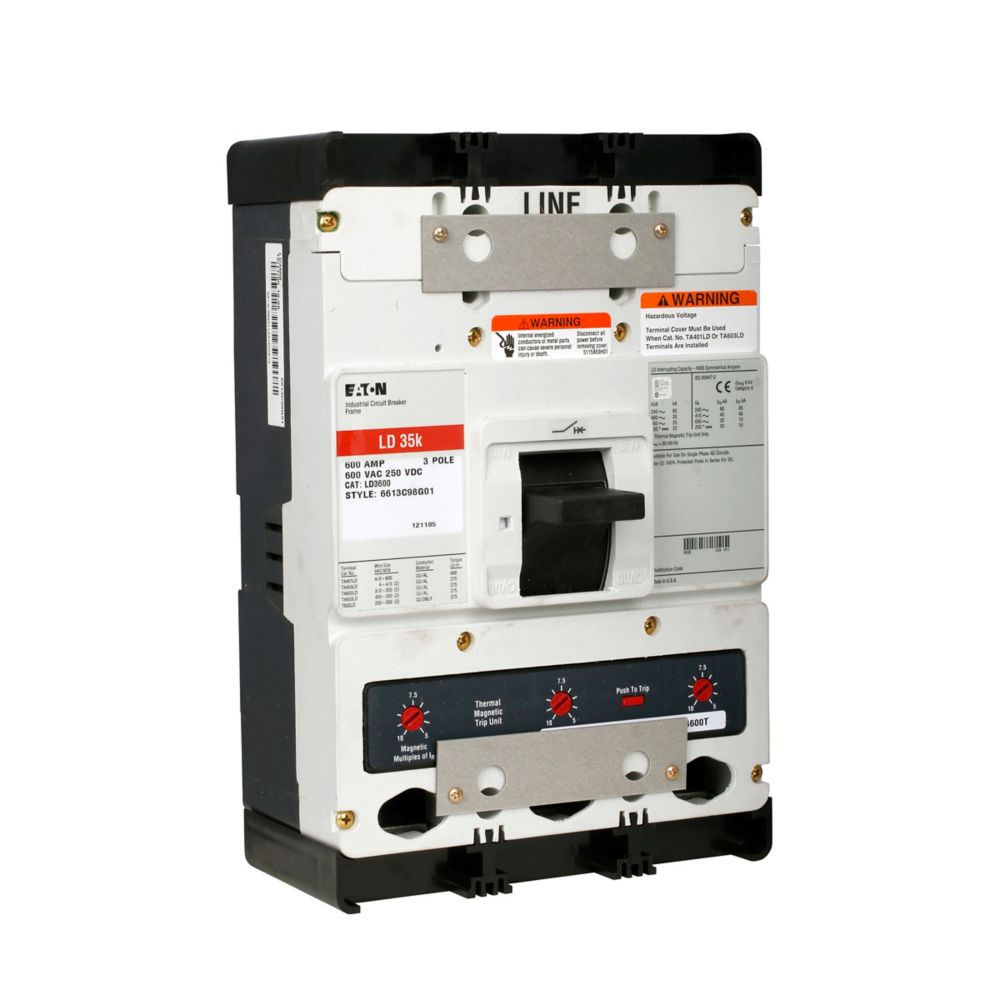

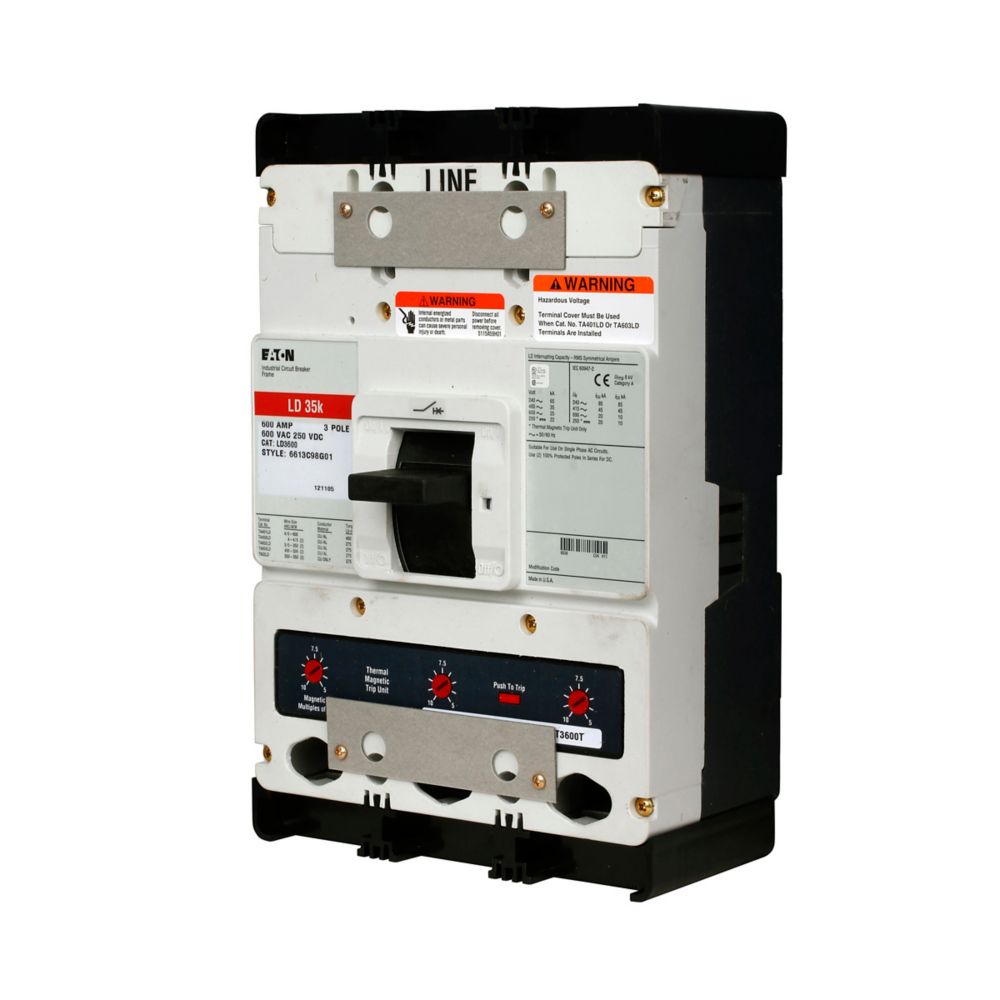

LD3600W is an Eaton Series C molded case circuit breaker designed for three-phase power distribution applications requiring high amperage capacity and reliable overcurrent protection. This bolt-on circuit breaker combines fixed thermal and fixed magnetic trip units to deliver consistent performance in industrial and commercial environments. The L-frame design accommodates the 600-amp rating while maintaining compatibility with standard panelboard configurations. Aluminum construction and line-and-load terminals provide durability and flexible installation options. Key Specifications
- Amperage Rating: 600 Amp
- Voltage Rating: 600 VAC, 250 VDC
- Number of Poles: 3
- Frame Type: L-Frame
- Mounting: Bolt-On
- Trip Unit: Fixed Thermal, Fixed Magnetic
- Interrupt Rating: 65 kAIC at 240 VAC, 35 kAIC at 480 VAC
- Frequency: 50/60 Hz
- Terminal Material: Aluminum
- Series: Series C
- Certification: UL 489
Specifications
- Part Number: LD3600W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : LD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 20
