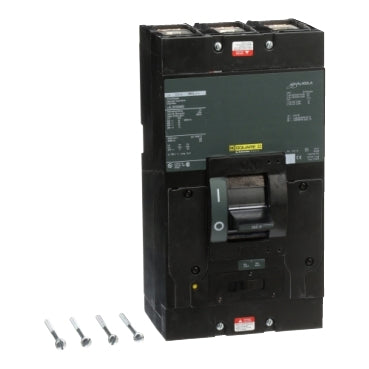

LAL36350MB - Square D PowerPact LAL 350A 600V 3 Pole Molded Case Circuit Breaker

LAL36350MB

LAL36350MB is a Square D PowerPact LAL series 350A 600V 3 pole molded case circuit breaker with thermal magnetic trip unit, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a robust LAL frame, thermal magnetic trip technology, and is rated for 350 amps at 600V AC, making it suitable for a wide range of applications requiring dependable overload and short circuit protection. The MB suffix indicates a panel main configuration with a shorter handle, and the unit is equipped with line and load side lug terminals for flexible installation.

• Part Number: LAL36350MB
• Manufacturer: Square D
• Series/Frame: PowerPact LAL
• Amperage: 350A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Panel Main (MB)
• Interrupt Rating: 22kA @ 600V AC, 10kA @ 250V DC
• Tripping Mechanism: Thermal Magnetic
• Terminal Type: Lug
• Certifications: UL, CSA
• Dimensions: 6" W x 5.84" D x 11" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL36350MB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 350
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip Functions
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901005520
• GTIN : 00785901005520
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.79
• Certification : IEC, CSA, UL
• Wire Size : AWG 1, 600 kcmil aluminium/copper)1, AWG 1, 250 kcmil aluminium/copper)2
