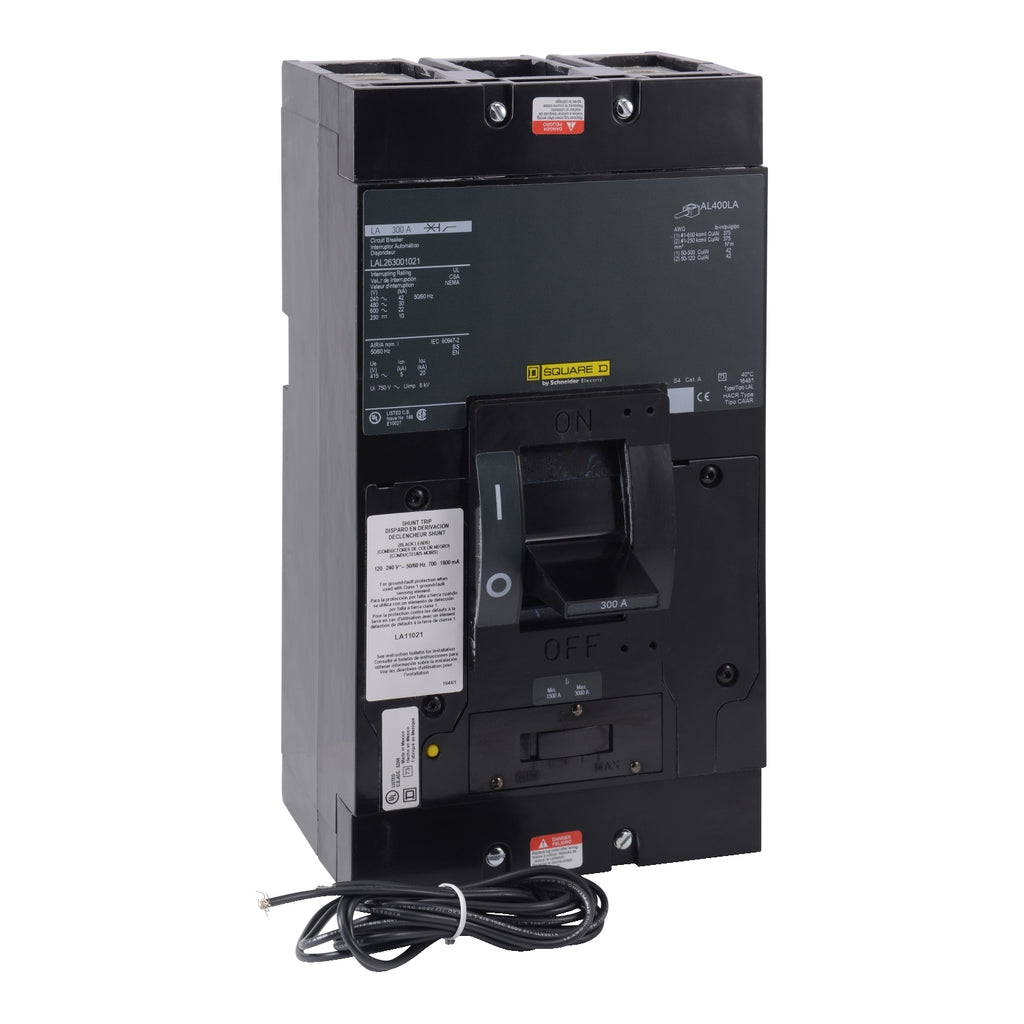

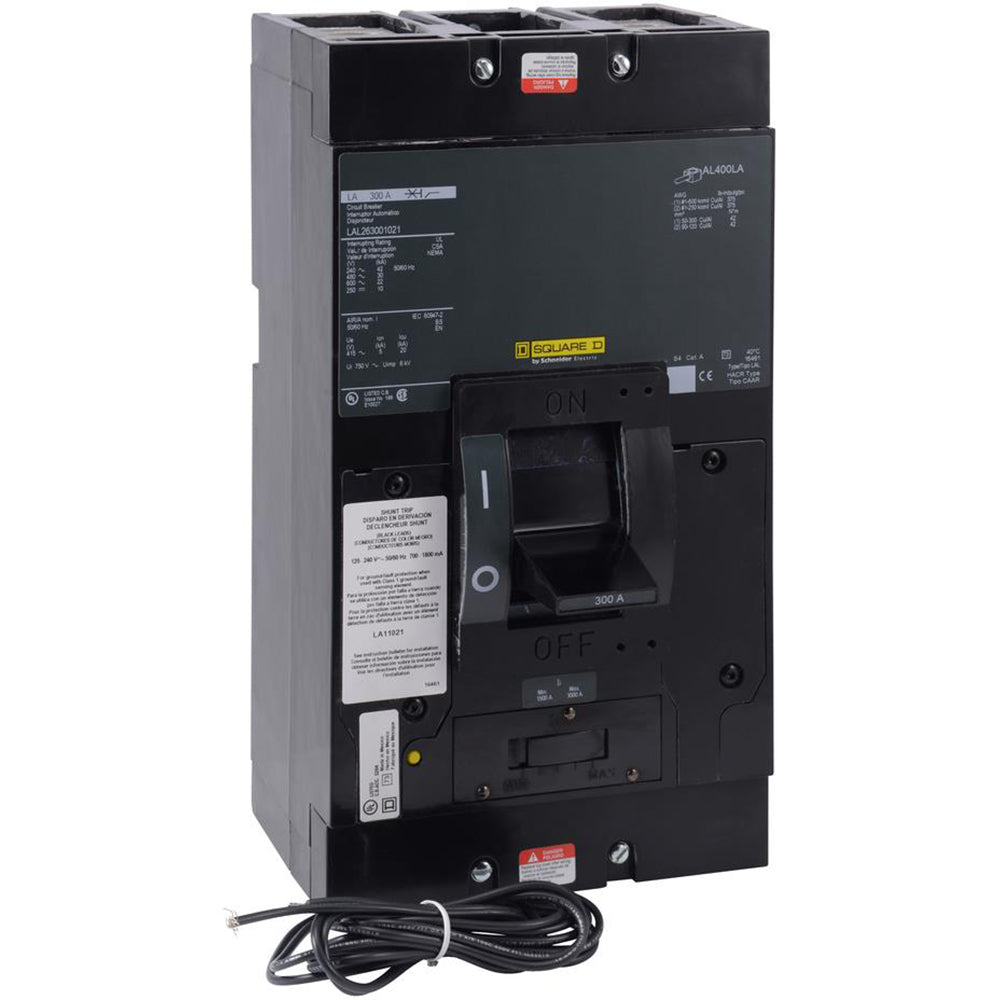

LAL363001616 - Square D 300A 3-Pole 600V Thermal Magnetic I-Line Circuit Breaker

LAL363001616

LAL363001616 is a 300 amp, 3-pole, 600 volt thermal magnetic molded case circuit breaker from Square D's LAL Series designed for I-Line plug-in mounting.This circuit breaker features a thermal magnetic trip unit providing long-time and instantaneous trip functions for reliable overload and short circuit protection. It has a 30kA interrupting rating at 480V AC and is built on the L-frame platform suitable for three-phase applications. The breaker supports line and load lug connections and is UL and CSA certified.

• Amperage: 300 A
• Voltage Rating: 600 V AC / 250 V DC
• Number of Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 30 kA at 480 V AC
• Frame/Series: LAL Series, L-Frame
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Phase: 3-phase
• Connection Type: Line/Load Lug
• Dimensions: Approximately 11" H x 6" W x 5.84" D
• Certifications: UL 489, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL363001616
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 20
