Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LAL26350V

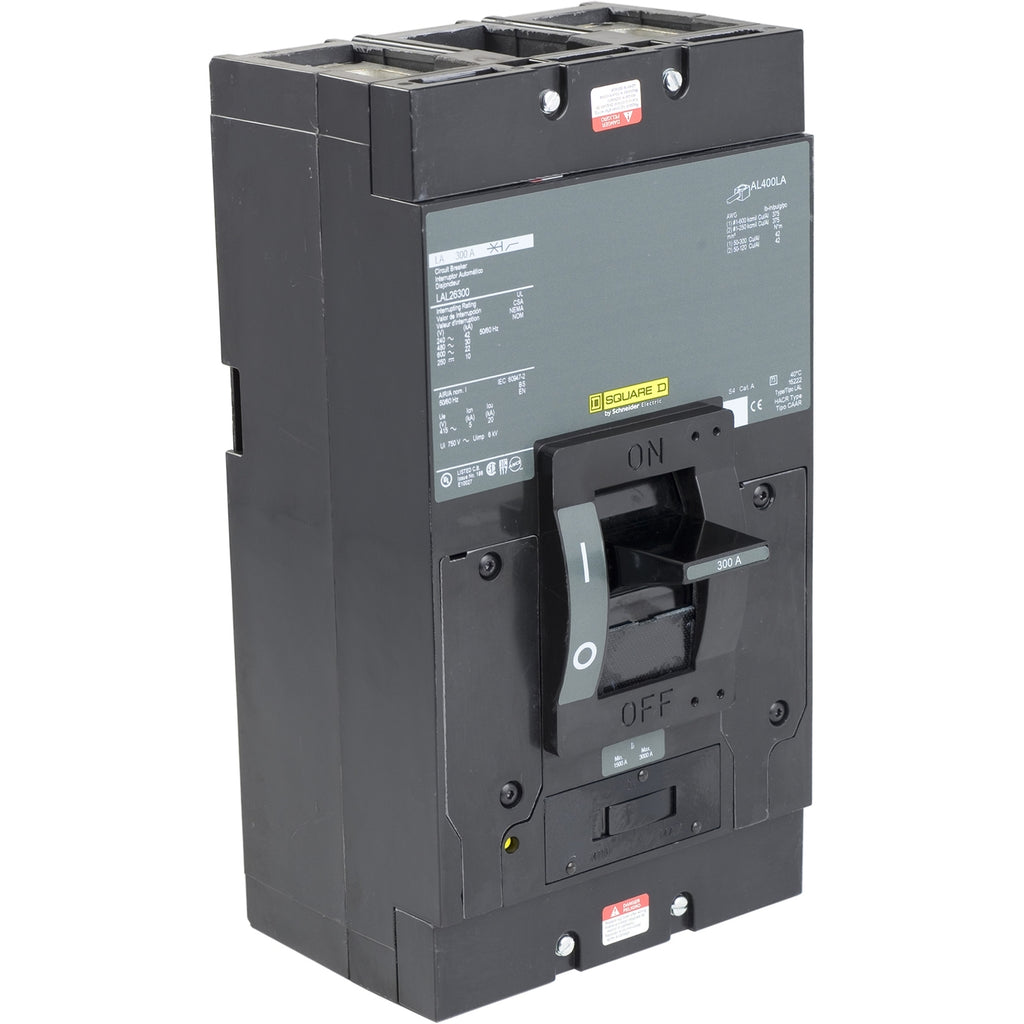

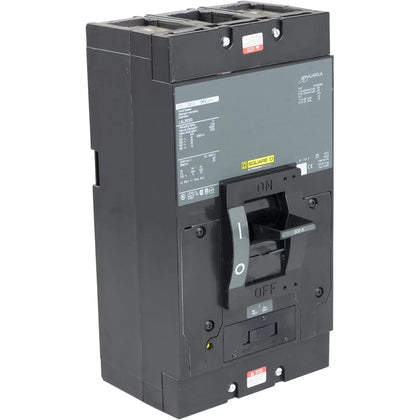

LAL26350V is a 2 pole, 600 volt, 350 amp rated molded case circuit breaker from Square D with thermal magnetic trip protection and feed-thru termination. This LAL series circuit breaker is designed for manual circuit open or automatic current interruption during overload or short circuit conditions, featuring thermal sensing for overload protection and magnetic sensing for short circuit protection in each pole. The breaker supports flexible mounting and termination options with push-to-trip manual operation capability.
- Amperage Rating: 350A
- Voltage Rating: 600VAC, 250VDC
- Poles: 2
- Frame Type: LAL
- Trip Type: Thermal Magnetic
- Interrupting Rating: 22kA at 600VAC, 10kA at 250VDC
- Termination: Line and Load Side Lug Terminals
- Configuration: Feed-Thru
- Dimensions: 6 inch W x 5.84 inch D x 11 inch H
- Mounting: Unit Mount and I-Line Construction Available
Specifications
- Part Number: LAL26350V
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 350
- Phase : 1
- Poles : 2
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 18
