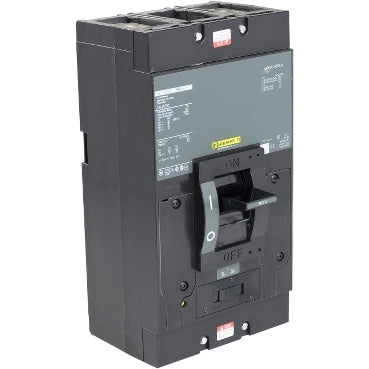

LAL26175 - Square D Molded Case Circuit Breaker 175A 600V 2-Pole

LAL26175

LAL26175 is a Square D PowerPact Molded Case Circuit Breaker designed for industrial and commercial power distribution applications. This thermal magnetic circuit breaker provides reliable overcurrent protection with a 2-pole configuration rated for 600 volts and 175 amperes. The LAL series delivers dependable performance in demanding electrical environments with thermal magnetic trip technology for both overload and short-circuit protection. Key Specifications

• Part Number: LAL26175
• Manufacturer: Square D by Schneider Electric
• Type: LAL Series Molded Case Circuit Breaker
• Amperage Rating: 175 Amps
• Voltage Rating: 600V
• Poles: 2
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 30 kA at 480V AC, 22 kA at 600V AC, 42 kA at 240V AC
• Dimensions: 6 inch W x 5.84 inch D x 11 inch H
• Weight: 2 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL26175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901622420
• GTIN : 00785901622420
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 18
• Certification : CSA-UL LISTED-IEC
