Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LAL26150

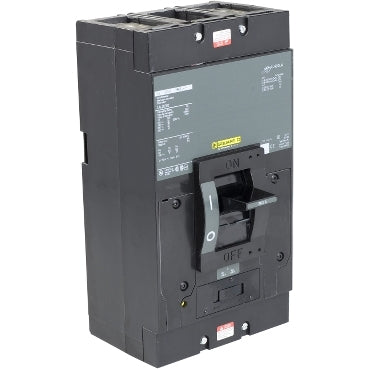

LAL26150 is a Square D 2-pole molded case circuit breaker rated for 150 amps and 600 volts.
This LAL series circuit breaker features a 150 amp trip rating with a 400 amp frame, designed for reliable protection in commercial and industrial electrical systems. It is HACR rated and UL listed, suitable for use in HVAC and general power distribution applications. The breaker supports a 22kA interrupt rating at 600VAC and 10kA at 250VDC, with lug-type connections for secure mounting.
- Type: LAL Series Molded Case Circuit Breaker
- Amperage: 150A trip rating
- Frame Amps: 400A
- Poles: 2
- Voltage Rating: 600VAC
- Interrupt Rating: 22kA at 600VAC, 10kA at 250VDC
- Mounting: Lug connection
- HACR rated for HVAC applications
- Certifications: UL Listed, IEC, CSA
- Dimensions: Width 6 in, Depth 5.84 in
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LAL26150
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 150
- Phase : 1
- Poles : 2
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 078590171028
- GTIN : 00785901710288
- Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
- Weight : 14.1 lb
