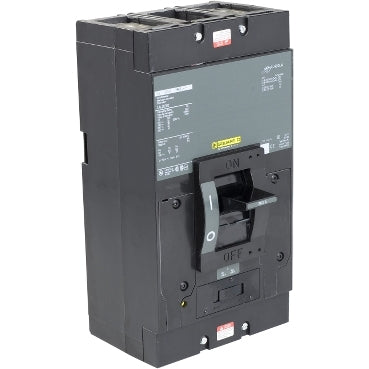

LAL26200 - Square D 200A 600V 2 Pole Molded Case Circuit Breaker

LAL26200

LAL26200 is a 2 pole, 200A molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This Square D breaker features a thermal magnetic trip unit and is rated for 600VAC and 250VDC applications. The LAL26200 is part of the Square D LA series and is engineered for panel mount installation. It offers an interrupting rating of 42kA at 240VAC and 30kA at 480VAC, making it suitable for a wide range of electrical environments. The breaker is constructed with lugs for secure terminal connections and is built to meet rigorous industry standards for safety and performance.

• Part Number: LAL26200
• Manufacturer: Square D
• Amperage: 200A
• Voltage Rating: 600VAC, 250VDC
• Number of Poles: 2
• Mounting Type: Panel Mount
• Interrupting Rating: 42kA at 240VAC, 30kA at 480VAC
• Series/Frame: LA
• Tripping Mechanism: Thermal Magnetic
• Terminal Connection: Lug
• Width: 6 inches
• Depth: 5.84 inches
• Height: 11 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL26200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 30kA@480V
• Connection : Plug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/LA
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901848448
• GTIN : 00785901848448
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 14.1
• Panel Type : Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
• Standards : CSA, IEC, UL Listed
• Certification : CSA, IEC, UL Listed
