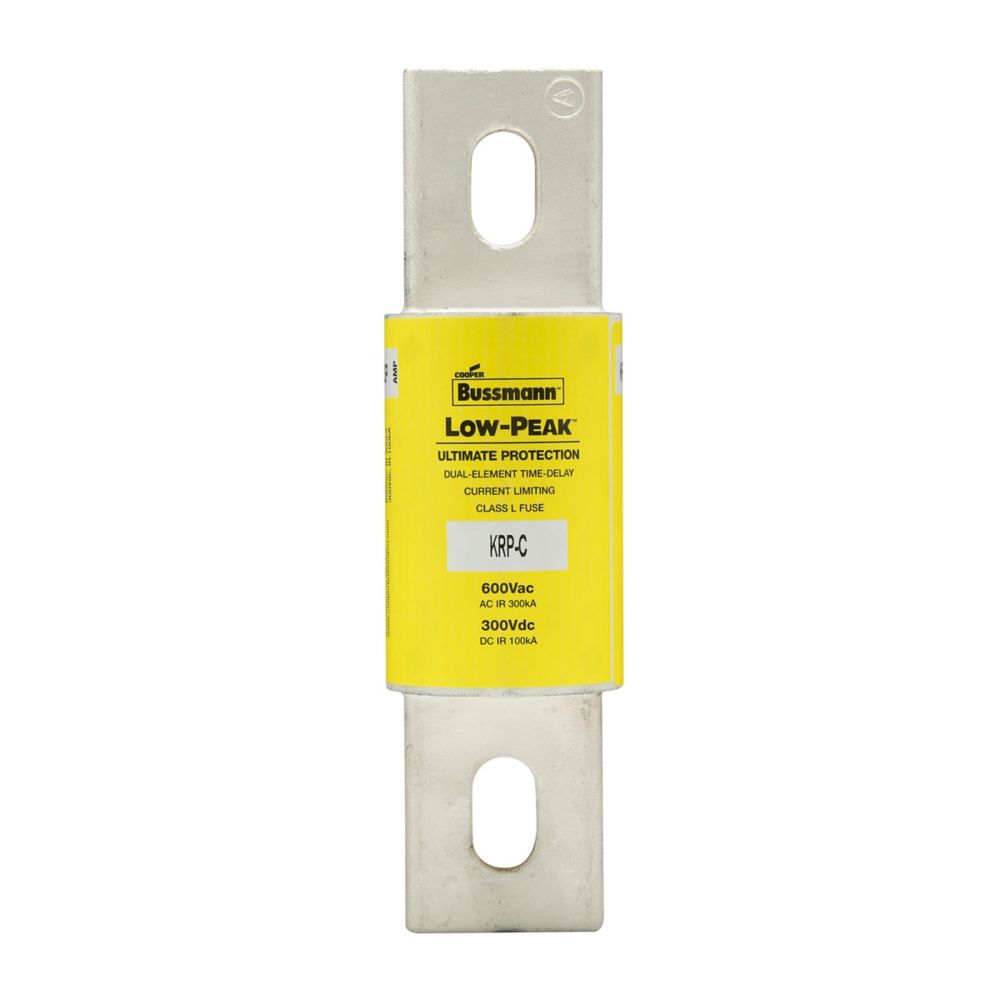

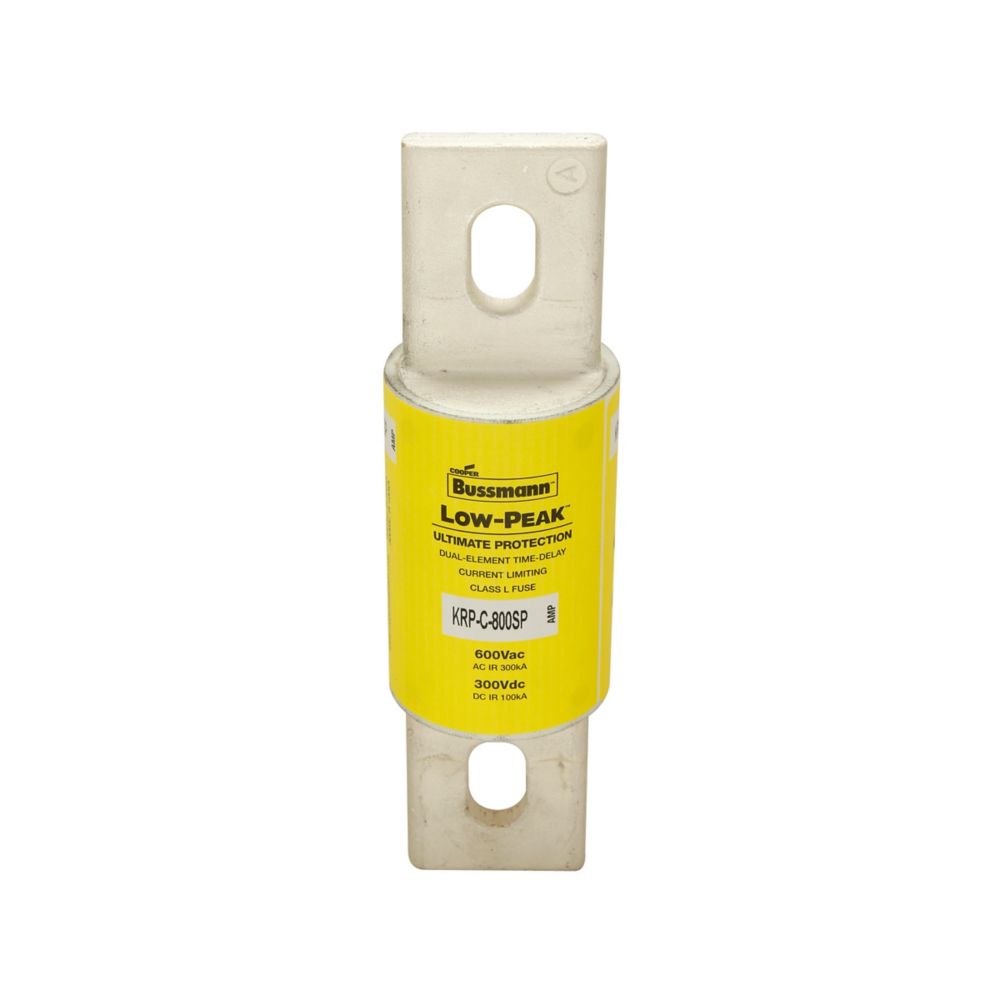

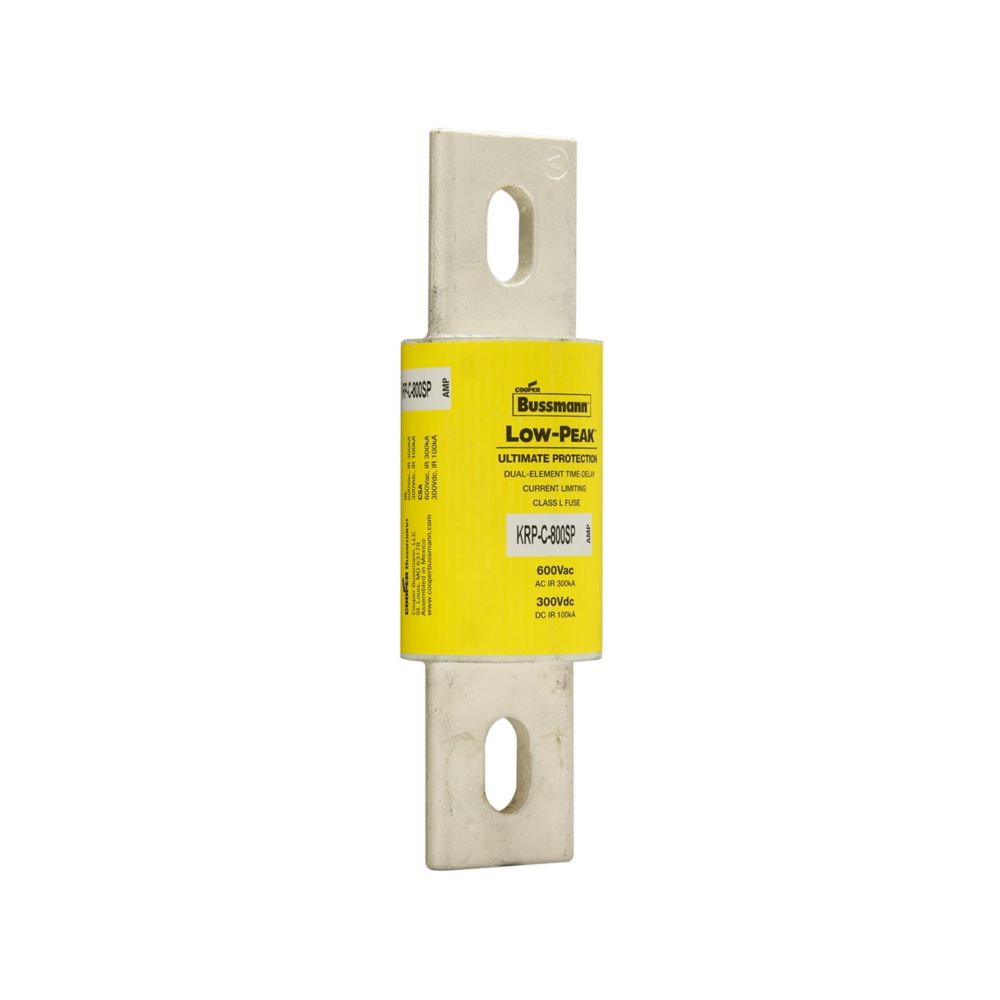

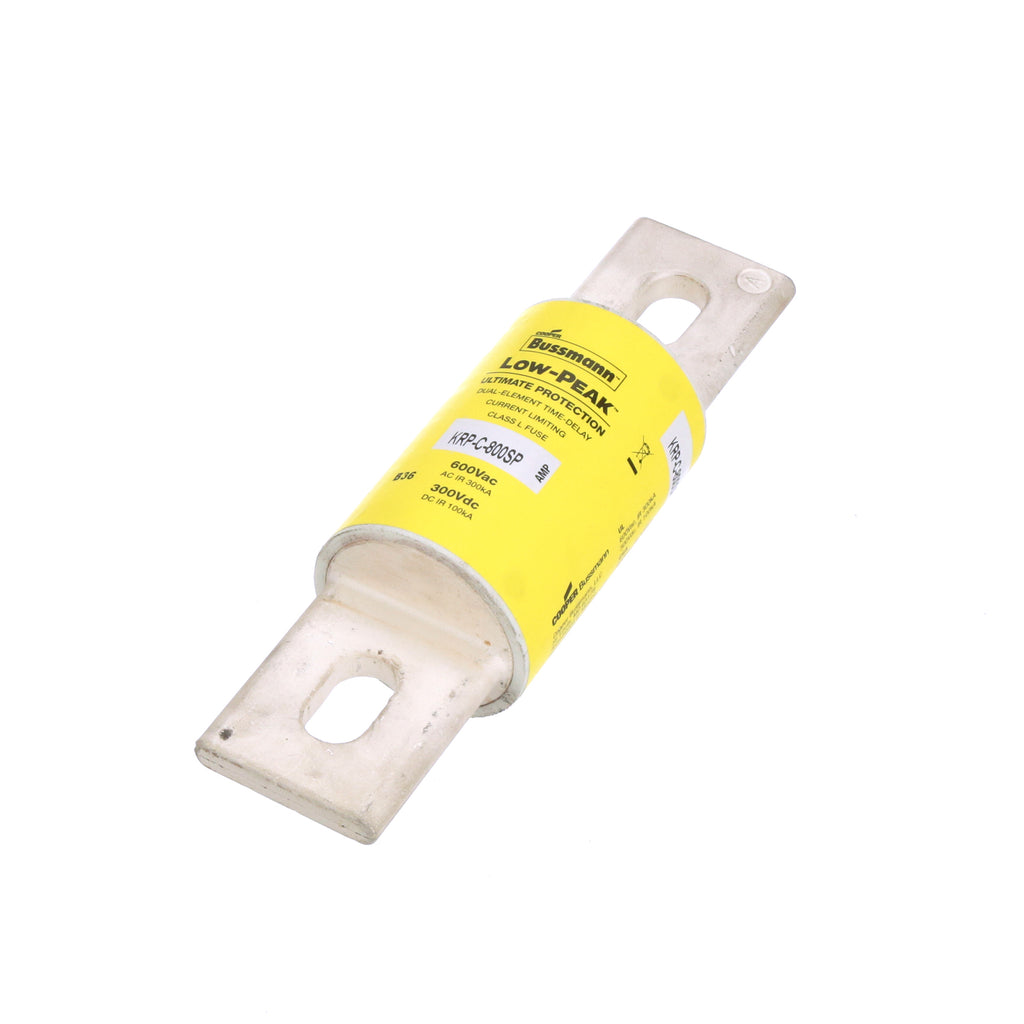

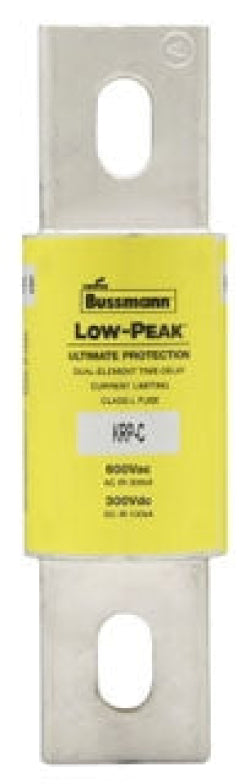

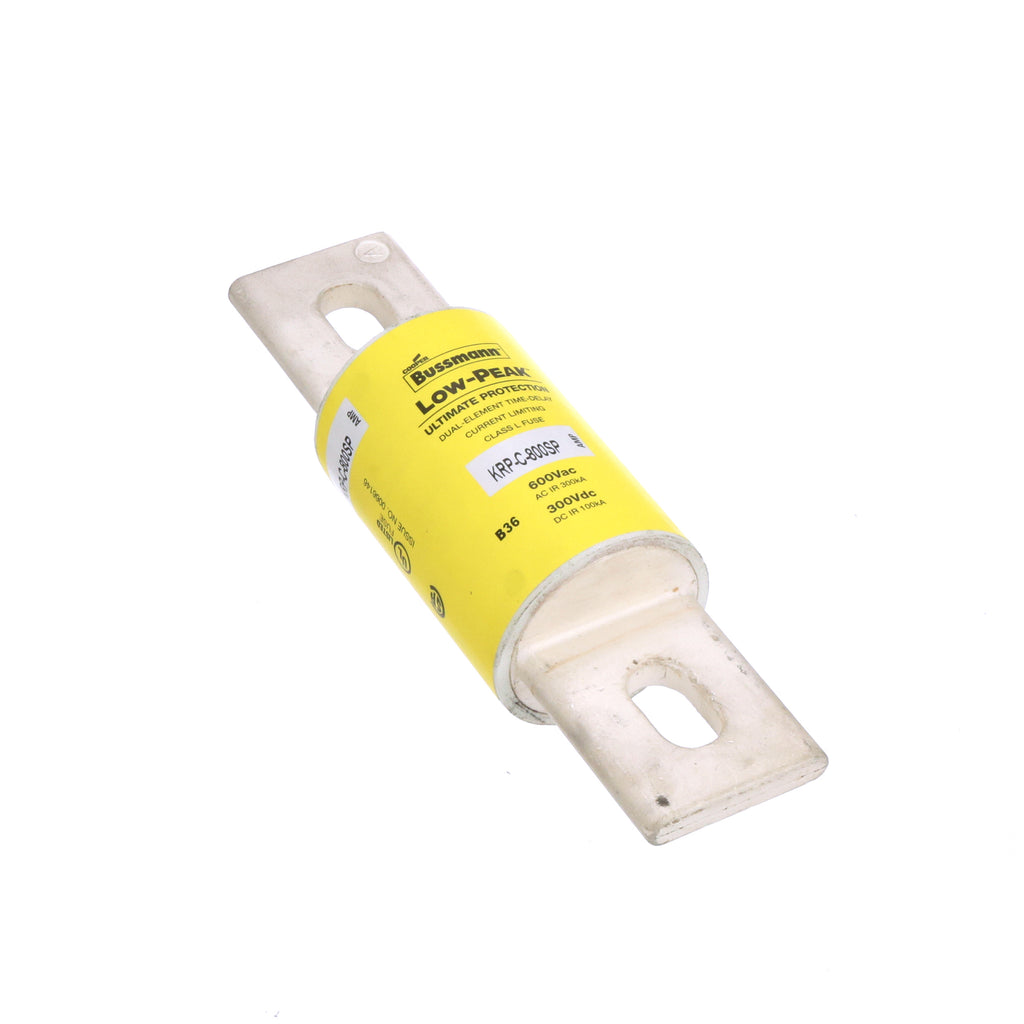

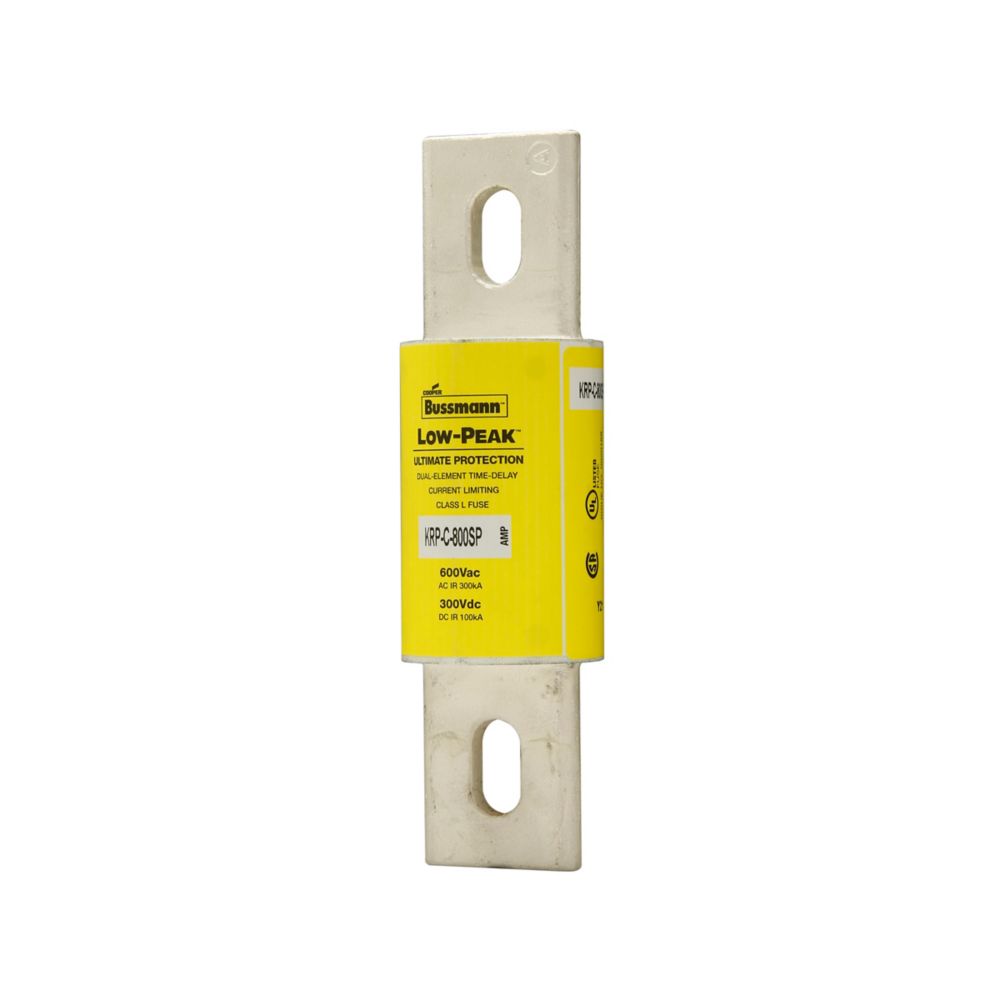

KRP-C-800SP - Bussmann Eaton 800A 600VAC Class L Time Delay Fuse, Current Limiting, Bolted Blade

KRP-C-800SP

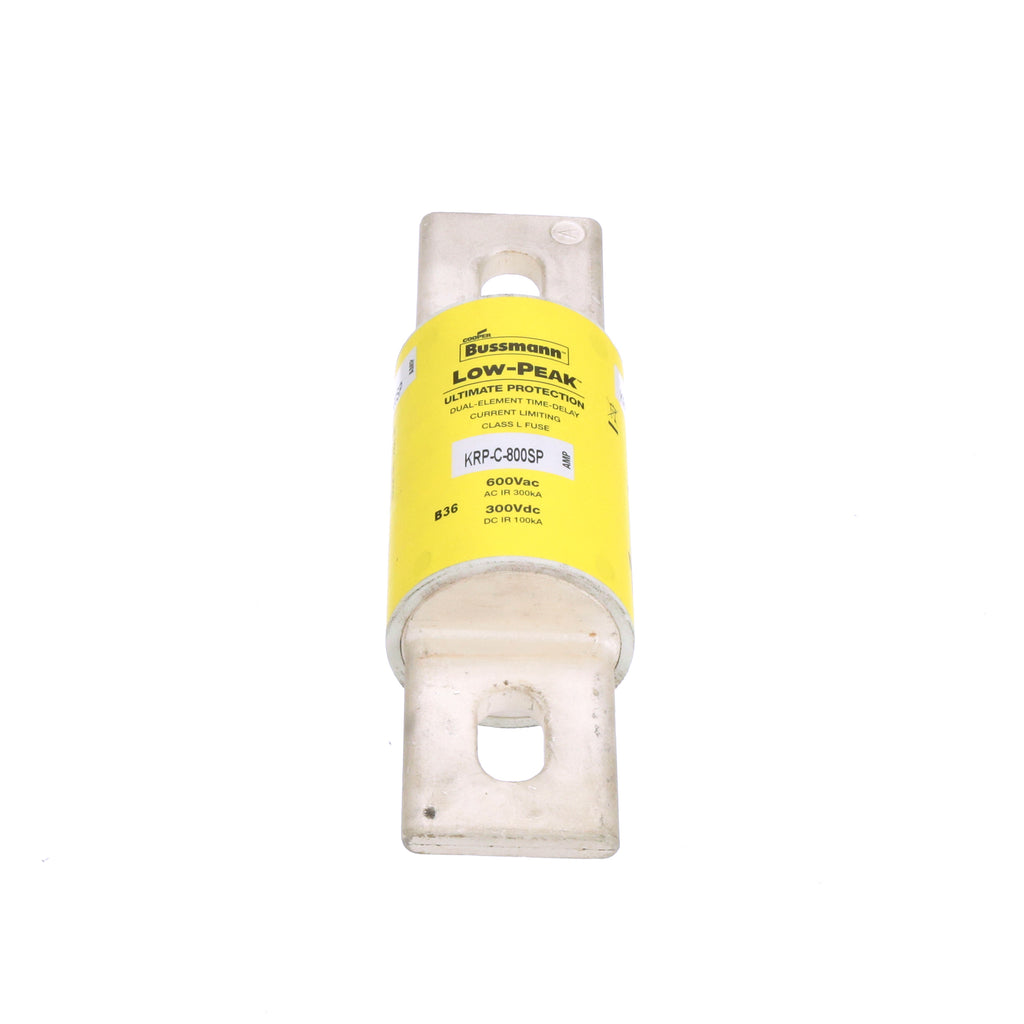

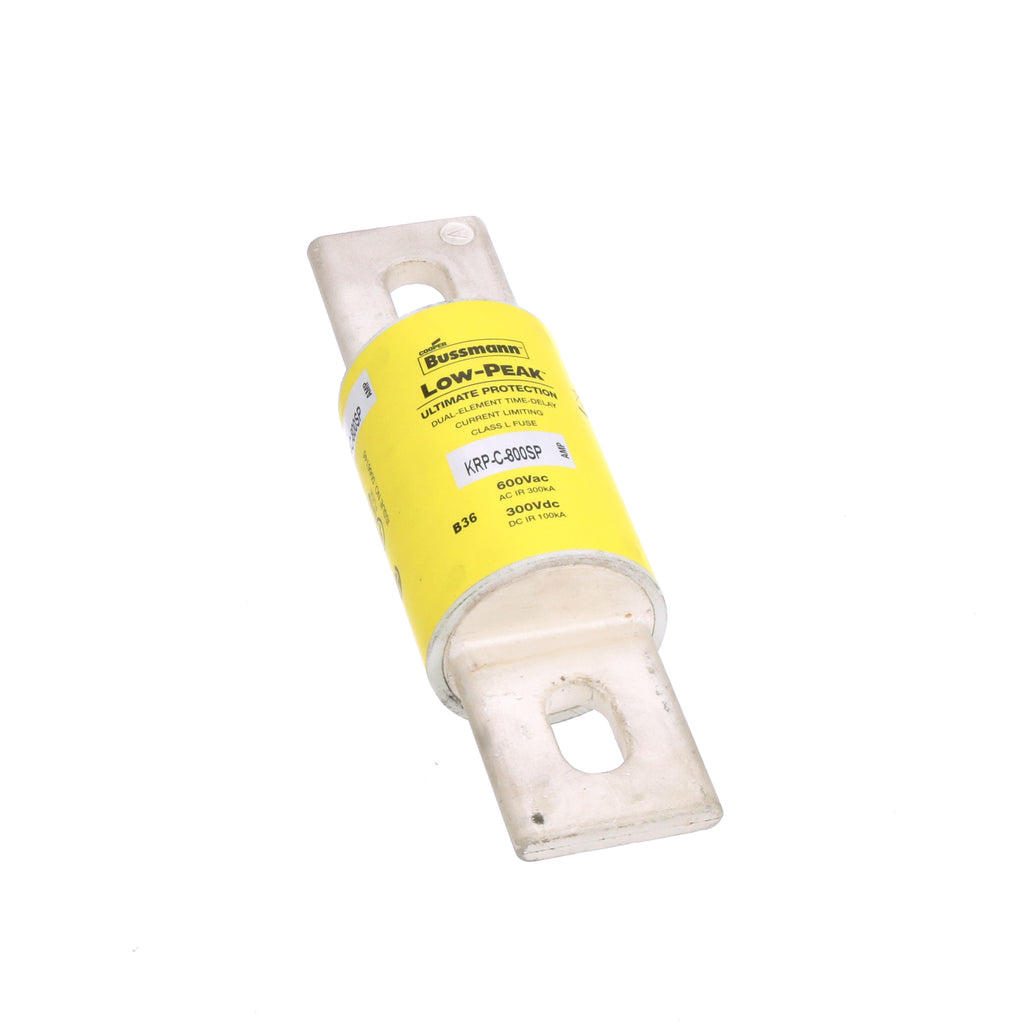

KRP-C-800SP is a Bussmann Eaton Class L time delay fuse designed for high capacity circuit protection.This 800 amp, 600 volt AC fuse features current limiting and time delay performance with a minimum 4-second delay at 500% rated current. It has a bolted blade terminal type and a cartridge body, providing fast short circuit protection and selective coordination. The fuse has an interrupt rating of 300,000 AIC at 600 VAC and 100,000 AIC at 300 VDC. It is UL listed and CSA certified for special purpose use.

• Amperage: 800 A
• Voltage Rating: 600 VAC / 300 VDC
• Class: L
• Time Delay: Minimum 4 seconds at 500% rated current
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Type: Current Limiting, Time Delay
• Body Type: Cartridge
• Terminal Type: Bolted Blade
• Mounting Type: Bolt-On
• Certifications: UL Listed, CSA Certified
• Series: KRP-C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-800SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 800
• AIC rating : 300kA@600V
• Diameter : 2.4
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605083
• GTIN : 00051712605083
• Country of Origin : Mexico
• Dimensions : 8.63 in x 2.53 in x 2.53 in (Length/Depth x Height x Width)
• Weight : 0.001
• Certification : CE/UL-248-10 Guide JFHR/CSA Class 1422-02
