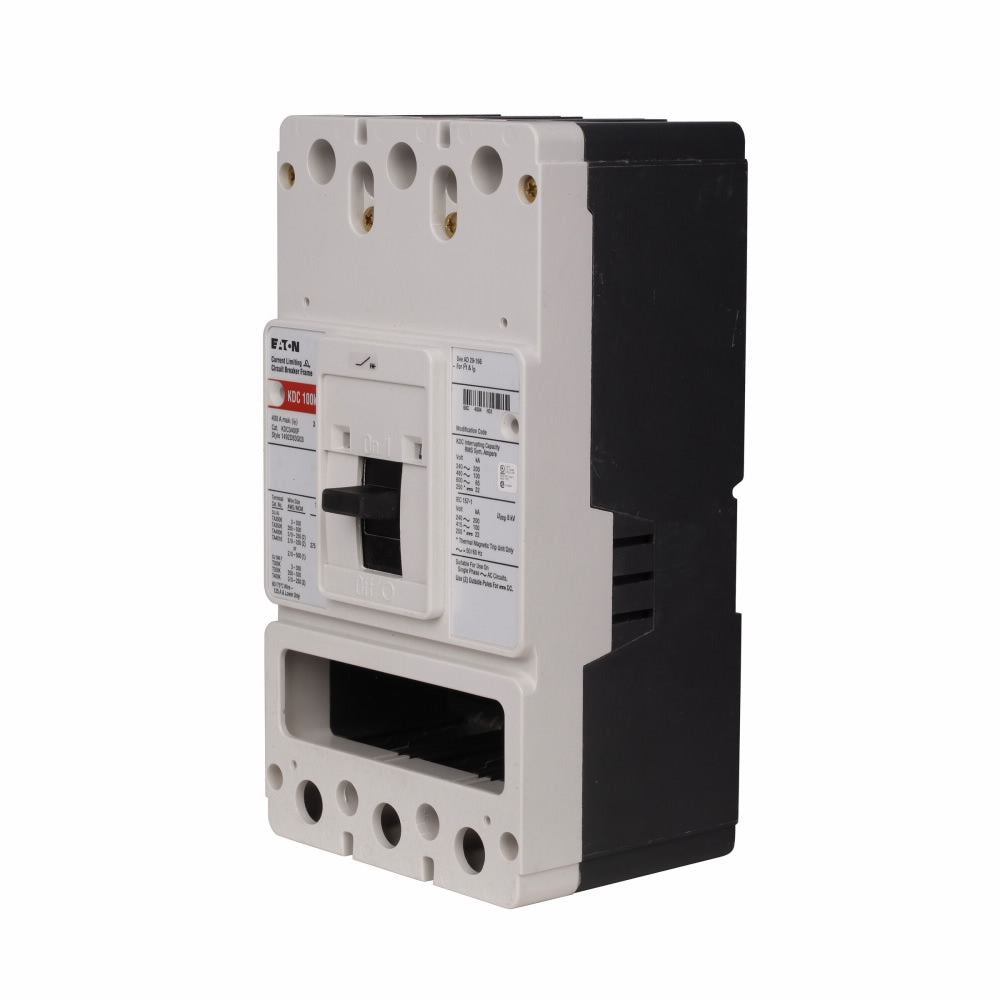

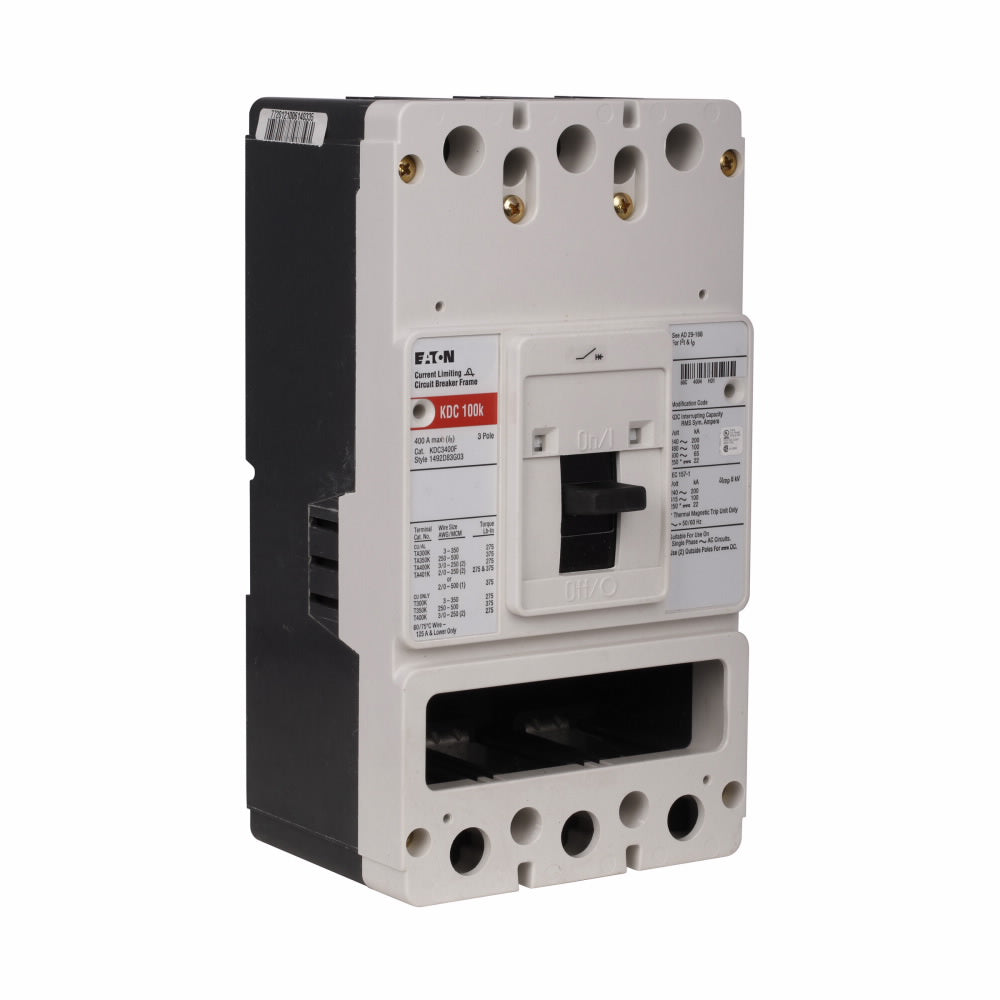

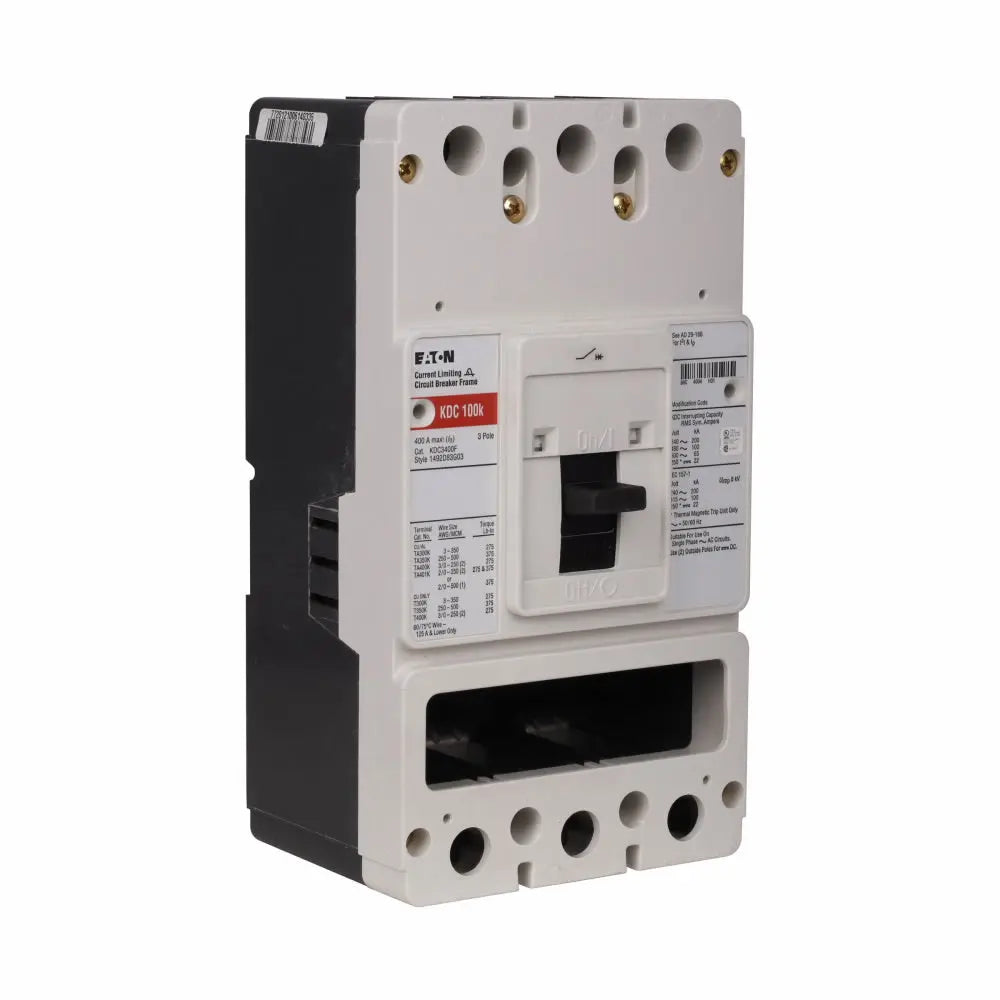

KDC3350Y - Eaton 350A 3P 600V Molded Case Circuit Breaker K-Frame Fixed Thermal Magnetic Trip

KDC3350Y

KDC3350Y is a three-pole molded case circuit breaker from Eaton, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a K-frame construction and is rated for 350 amps and 600 volts AC, making it suitable for a wide range of applications requiring robust circuit protection.Engineered as part of Eaton's Series C line, the KDC3350Y offers fixed thermal and fixed magnetic trip functionality for dependable overload and short-circuit protection. The breaker is constructed with aluminum terminals and is designed for line and load connections, supporting both aluminum and copper wiring. It operates at 50/60 Hz and is suitable for use in systems with up to 65 kAIC interrupting capacity at 240 Vac and 35 kAIC at 480 Vac.

• Part Number: KDC3350Y
• Manufacturer: Eaton
• Series: Series C
• Frame: K-Frame
• Poles: 3
• Amperage: 350 A
• Voltage: 600 Vac, 250 Vdc
• Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
• Frequency: 50/60 Hz
• Terminal Material: Aluminum
• Connection Type: Line and Load
• Mounting Type: Bolt-On
• Trip Unit: Fixed Thermal, Fixed Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KDC3350Y
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : KDC
• Voltage : 600
• Amperage : 350
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 12
