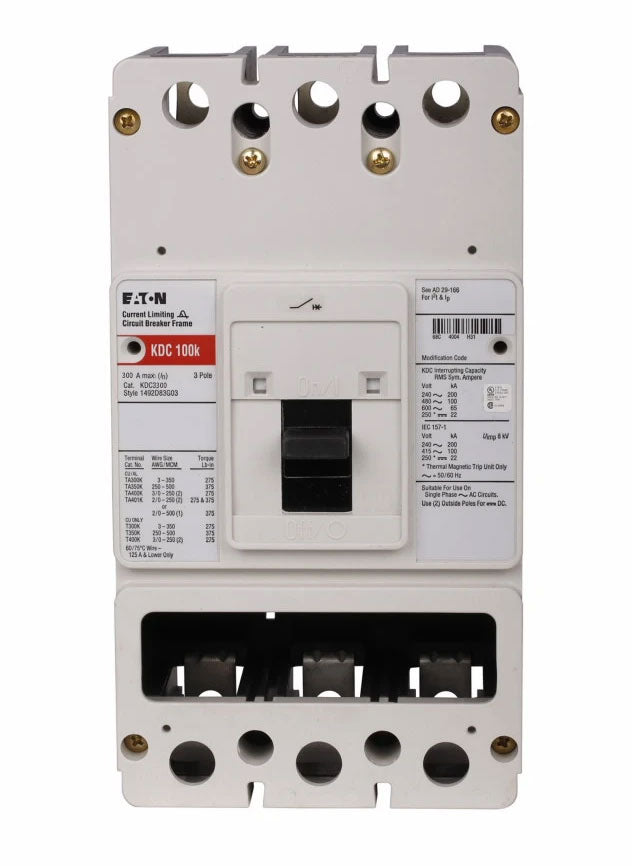

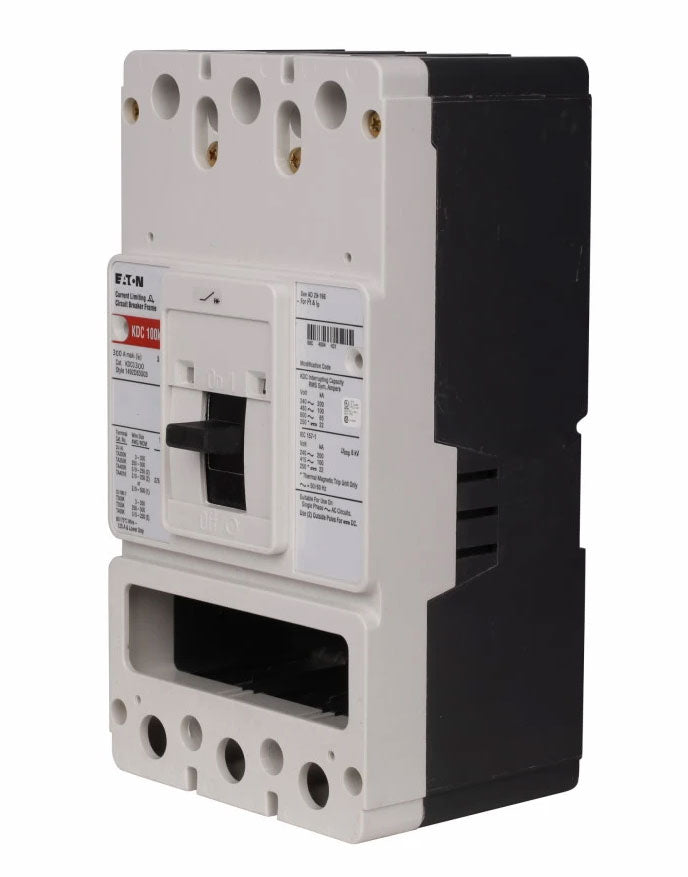

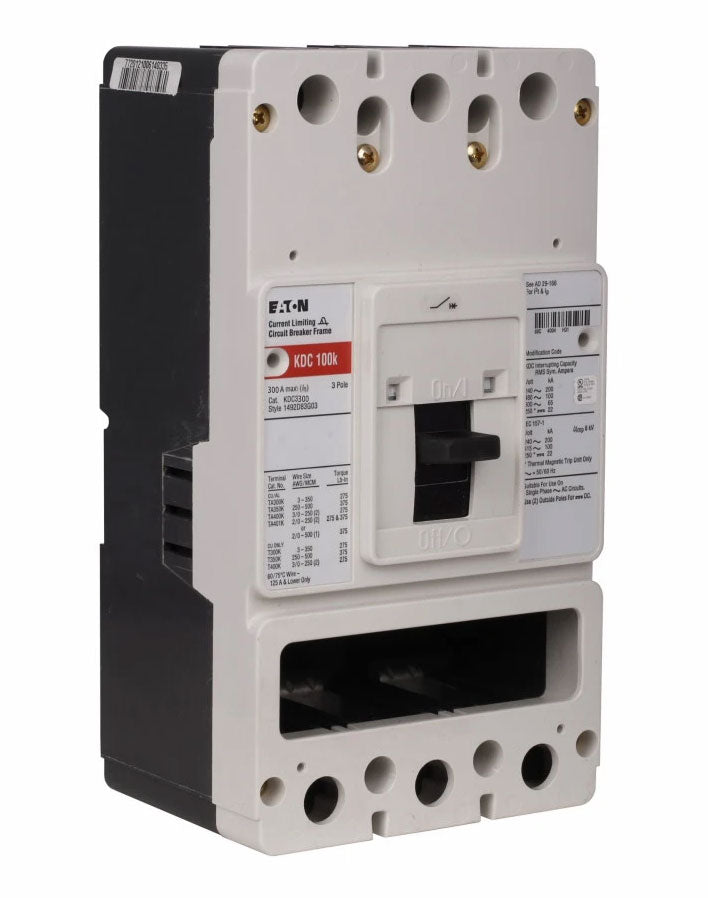

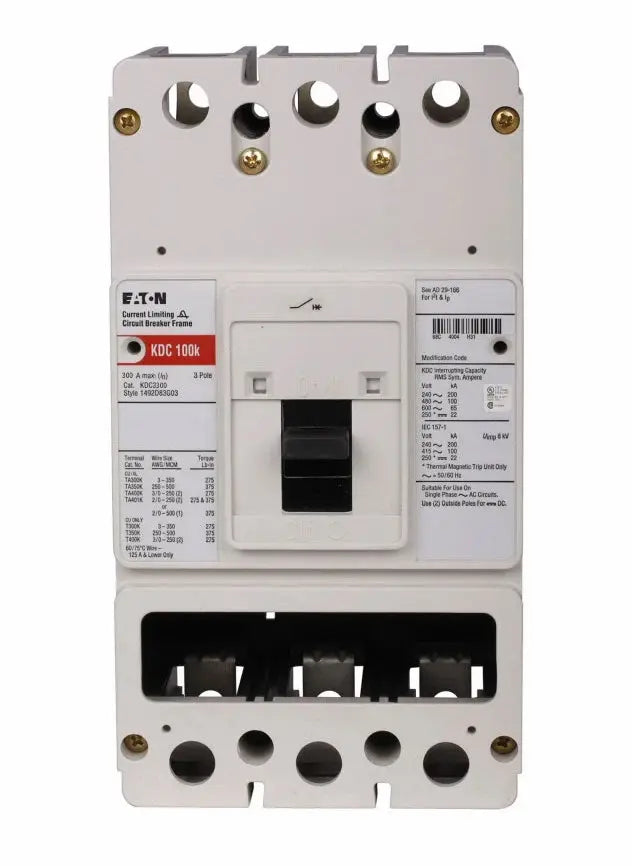

KDC3300W - Eaton Series C Molded Case Circuit Breaker 300A 3P 600V

KDC3300W

KDC3300W is an Eaton Series C molded case circuit breaker designed for industrial and commercial power distribution applications. This K-frame breaker features fixed thermal and fixed magnetic trip units with bolt-on mounting for reliable overcurrent protection in three-phase systems. KDC3300W delivers 300 amperes at 600 volts AC with interrupt ratings of 200 kA at 240 VAC, 100 kA at 480 VAC, and 65 kA at 600 VAC, making it suitable for demanding electrical environments. The compact design measures 5.5 inches wide by 4.1 inches deep by 10.13 inches high, allowing flexible installation in standard electrical enclosures.

• Amperage: 300 Amp
• Voltage: 600 Vac
• Poles: 3 Pole
• Mounting: Bolt-On
• Series: Series C K-Frame
• Trip Unit: Fixed Thermal, Fixed Magnetic
• Interrupt Rating: 200 kA @ 240 VAC
• Interrupt Rating: 100 kA @ 480 VAC
• Interrupt Rating: 65 kA @ 600 VAC
• DC Voltage: 250 VDC
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: KDC3300W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : KDC
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679396124
• GTIN : 00786679396124
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed
