Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
KDC3300Y

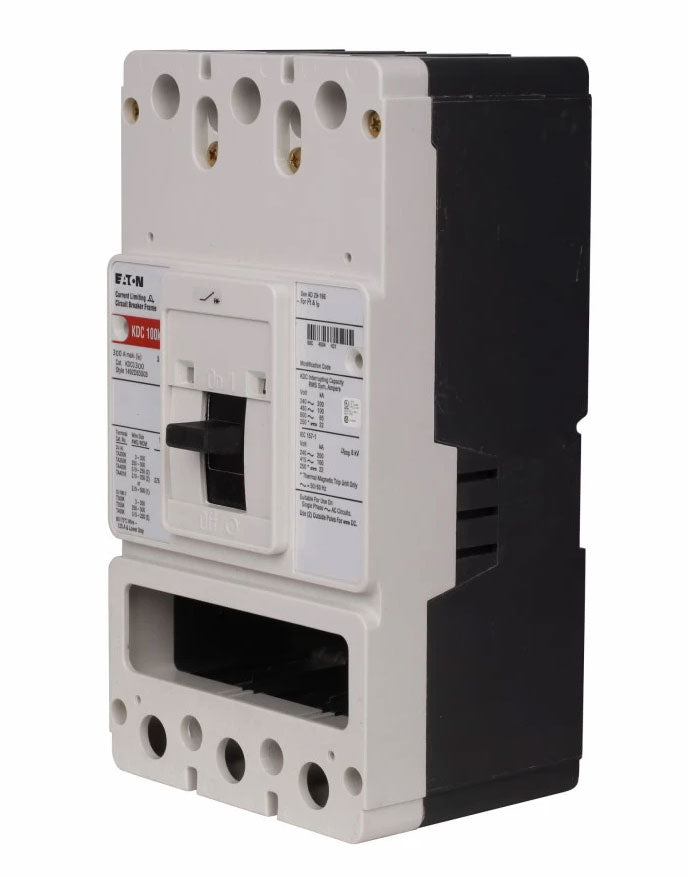

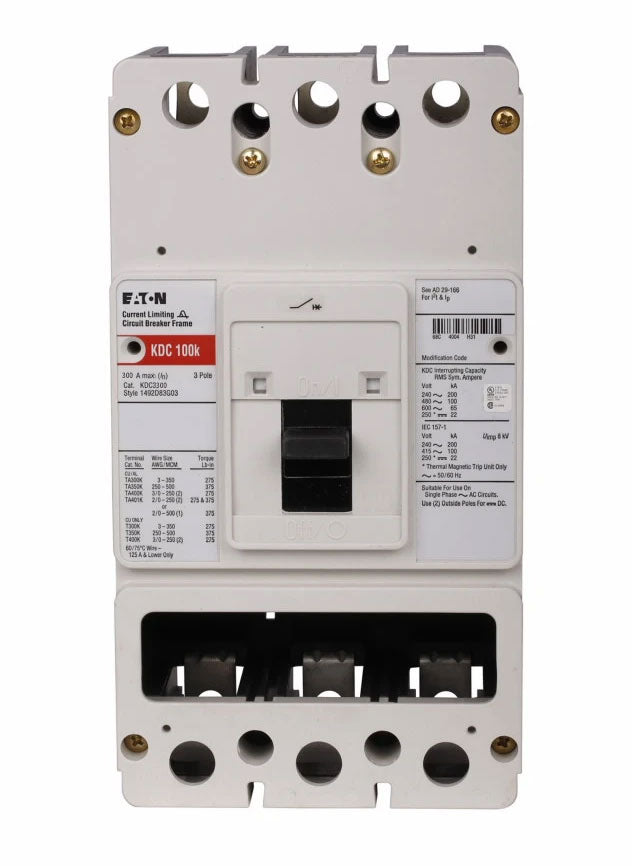

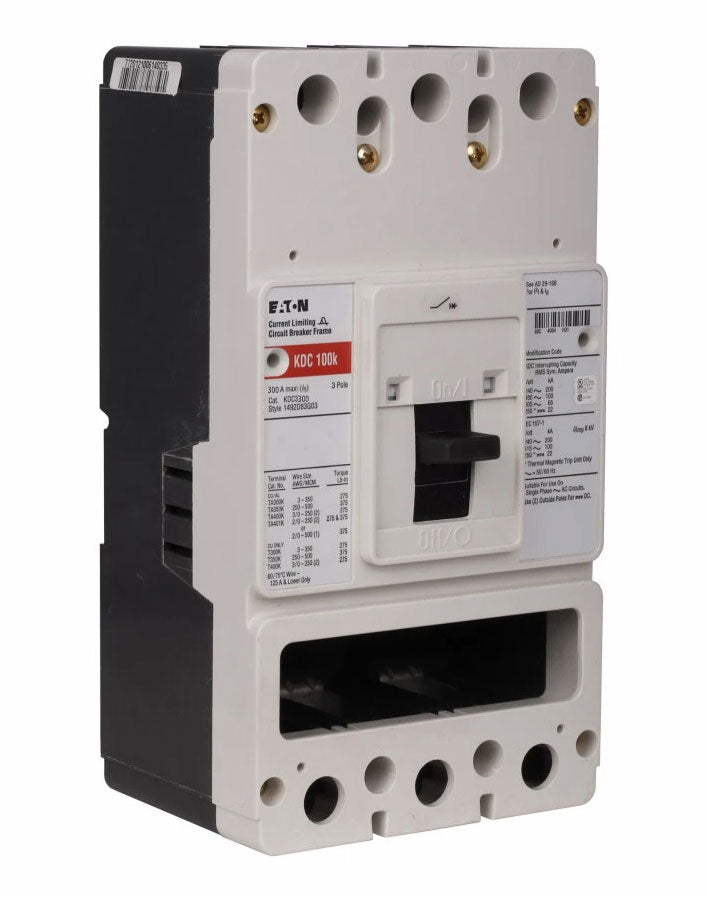

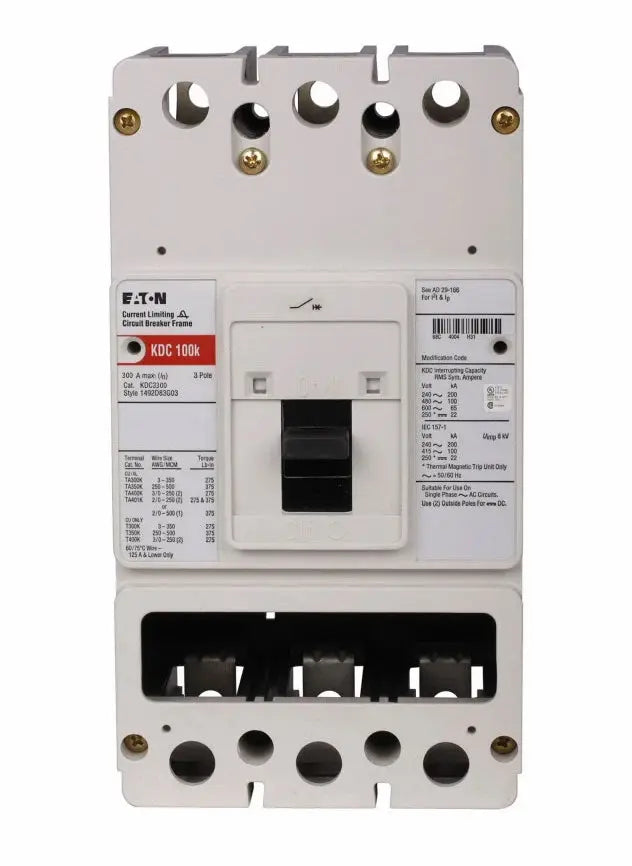

KDC3300Y is a three-pole molded case circuit breaker from Eaton Series C, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 300A current rating and a maximum voltage of 600V AC, making it suitable for a wide range of applications requiring robust overcurrent protection. The KDC3300Y utilizes a thermal magnetic trip unit with long-time and instantaneous protection, providing effective response to both overload and short-circuit conditions. It is designed for bolt-on mounting, ensuring secure installation and easy replacement. The breaker is rated for high interrupting capacity, supporting system safety in demanding environments.
- 300A Amperage Rating
- 600V AC Voltage Rating
- 3 Pole Configuration
- Bolt-On Mounting Type
- 200kAIC Interrupt Rating at 240V AC
- 100kAIC Interrupt Rating at 480V AC
- Series C Frame
- Thermal Magnetic Trip Unit
- UL Listed
- Feed-Thru Connection
- LI (Long-Time and Instantaneous) Protection
Specifications
- Part Number: KDC3300Y
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : KDC
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 12
