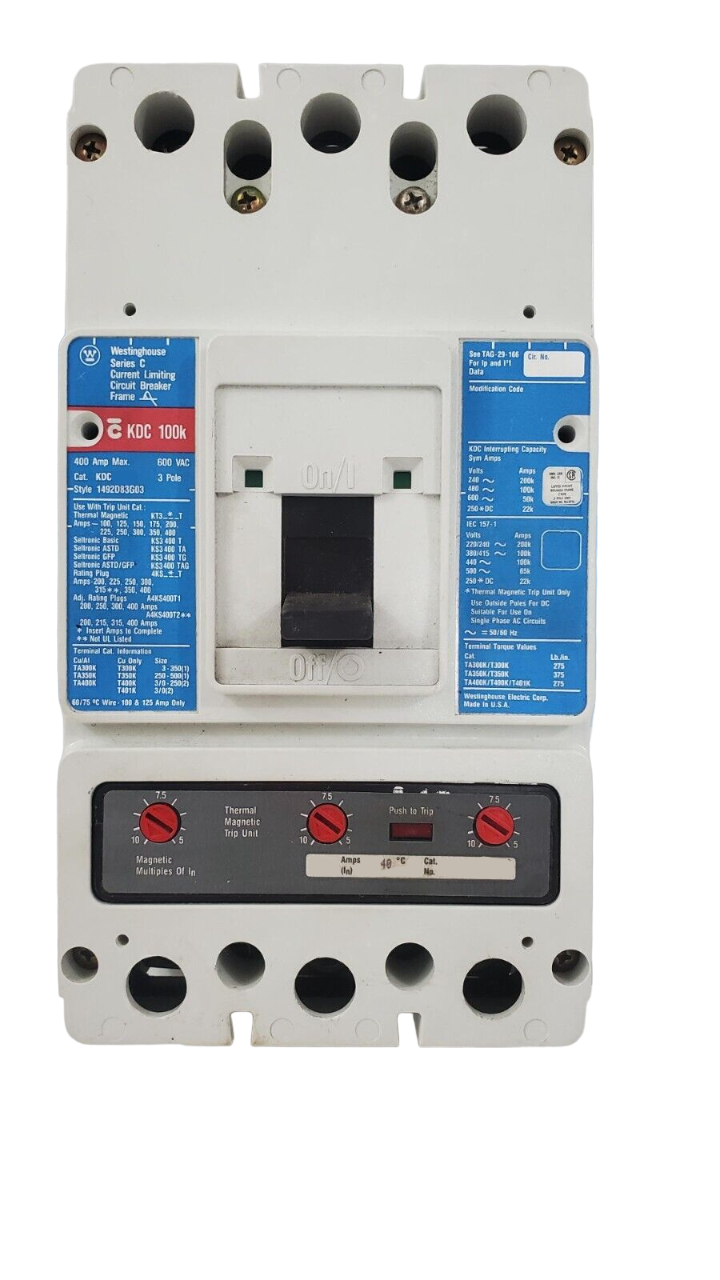

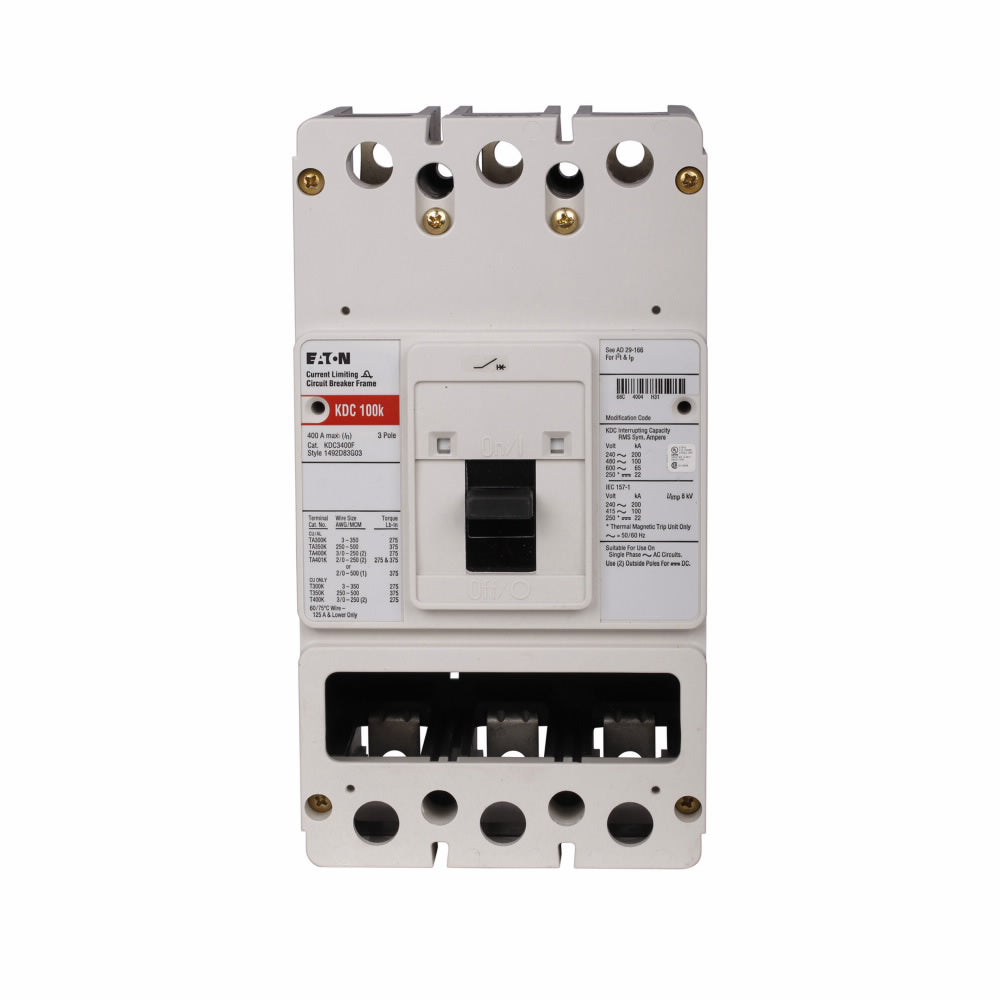

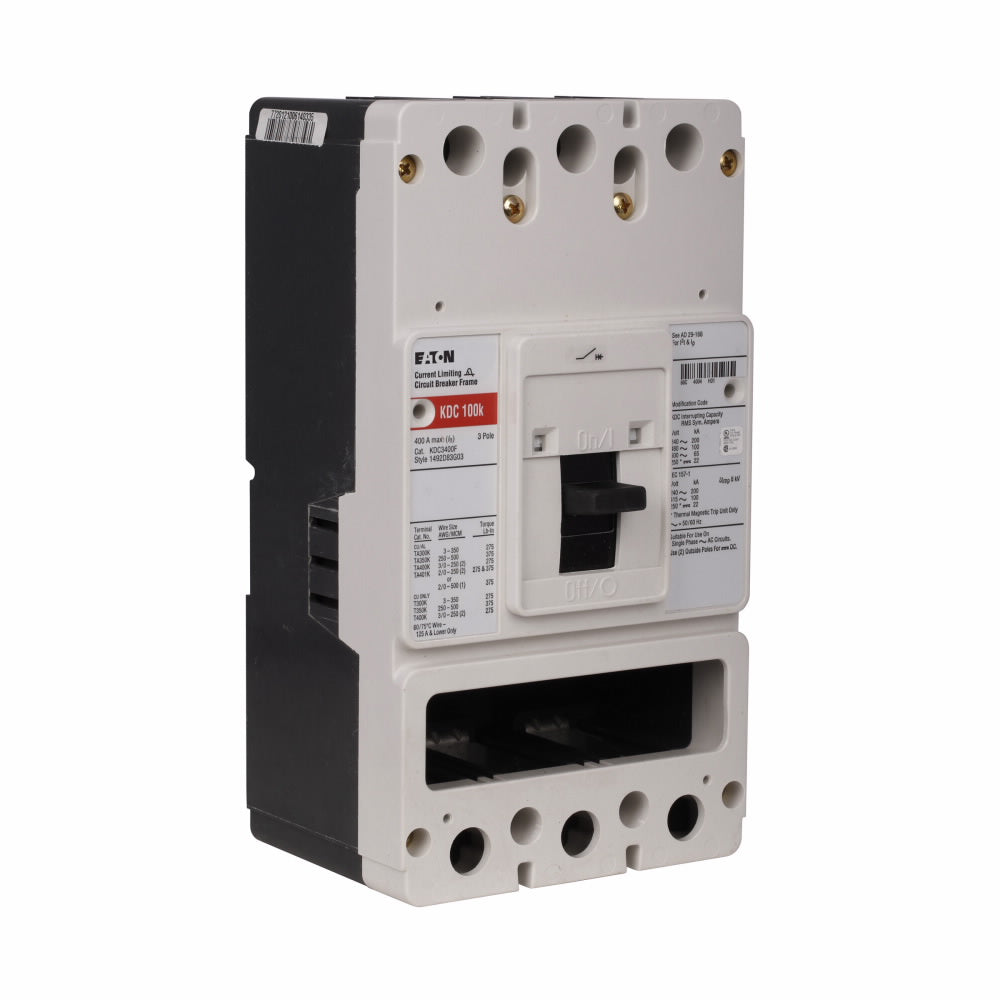

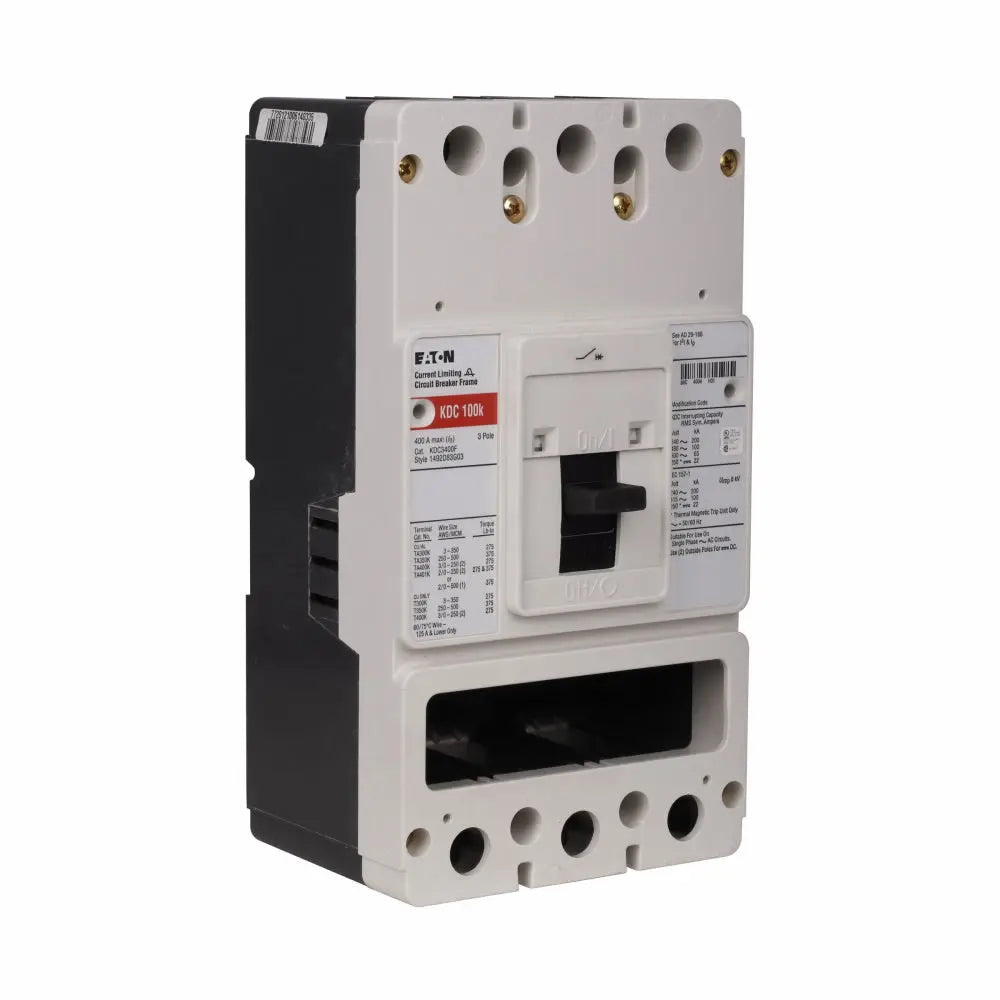

KDC3350X - Eaton 350A 600V 3-Pole K-Frame Molded Case Circuit Breaker

KDC3350X

KDC3350X is a 350 Amp, 600 Volt, 3-pole molded case circuit breaker from Eaton's Series C K-Frame line designed for reliable circuit protection.This Eaton KDC3350X breaker features thermal magnetic trip protection with interchangeable long-time and instantaneous trip functions. It supports feed-thru connection and is suitable for reverse fed applications. Rated for 100kA interrupt capacity at 480V and 200kA at 240V, it provides high interrupting capacity for demanding electrical systems. The breaker includes line and load side lug terminals and is constructed with aluminum terminals for durability.

Key Specifications
• Amperage: 350A
• Voltage Rating: 600V AC
• Poles: 3
• Frame Type: K-Frame (Series C)
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions
• Interrupt Rating: 100kA at 480V, 200kA at 240V
• Connection Type: Feed-Thru
• Terminal Material: Aluminum
• Phase: 3
• Mounting Type: Bolt-On

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KDC3350X
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : KDC
• Voltage : 600
• Amperage : 350
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 12
