2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD63B225L

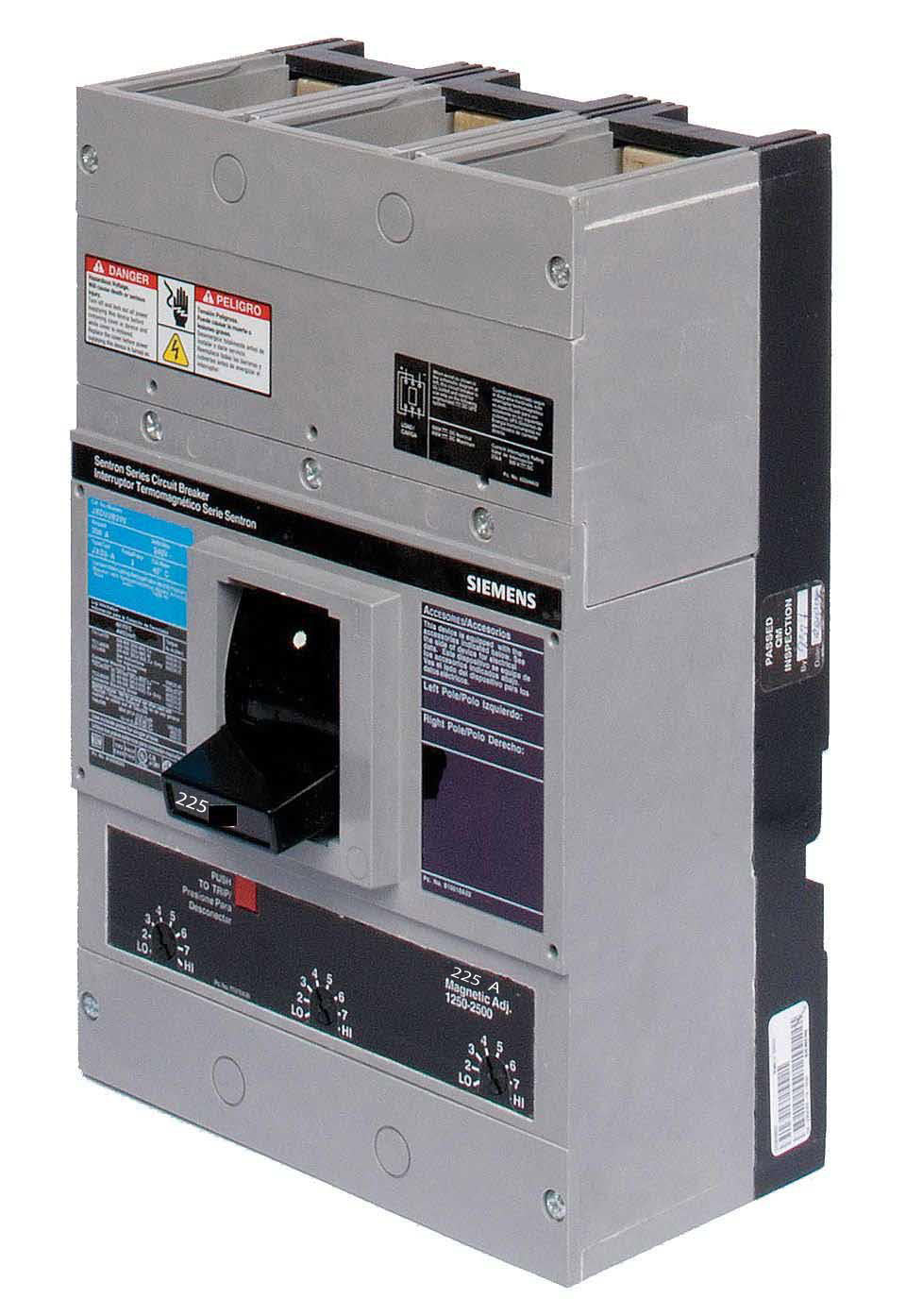

JXD63B225L is a Siemens 3-pole molded case circuit breaker with a 225 ampere rating and 600 volt AC voltage rating designed for reliable circuit protection.This Siemens Sentron Series JD Frame breaker features a thermal magnetic trip unit and a bolt-on mounting type. It has an interrupting rating of 35kA at 480V AC and 65kA at 240V AC, suitable for industrial and commercial applications. The breaker is rated for 3 poles and supports voltages up to 600 VAC and 500 VDC. It includes load lug connections and complies with UL certifications.
- Amperage: 225A
- Voltage Rating: 600V AC, 500V DC
- Poles: 3
- Frame: JD (400A frame)
- Interrupt Rating: 35kA @ 480V AC, 65kA @ 240V AC
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-on
- Load Lug Connections
- Series: Sentron
- Certifications: UL Listed
Specifications
- Part Number: JXD63B225L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : JD Frame
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643009509
- GTIN : 00783643009509
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.698
- Weight : 19.533
- Standards : RoHS
- Certification : UL, IEC
- Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
