Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD63B200H

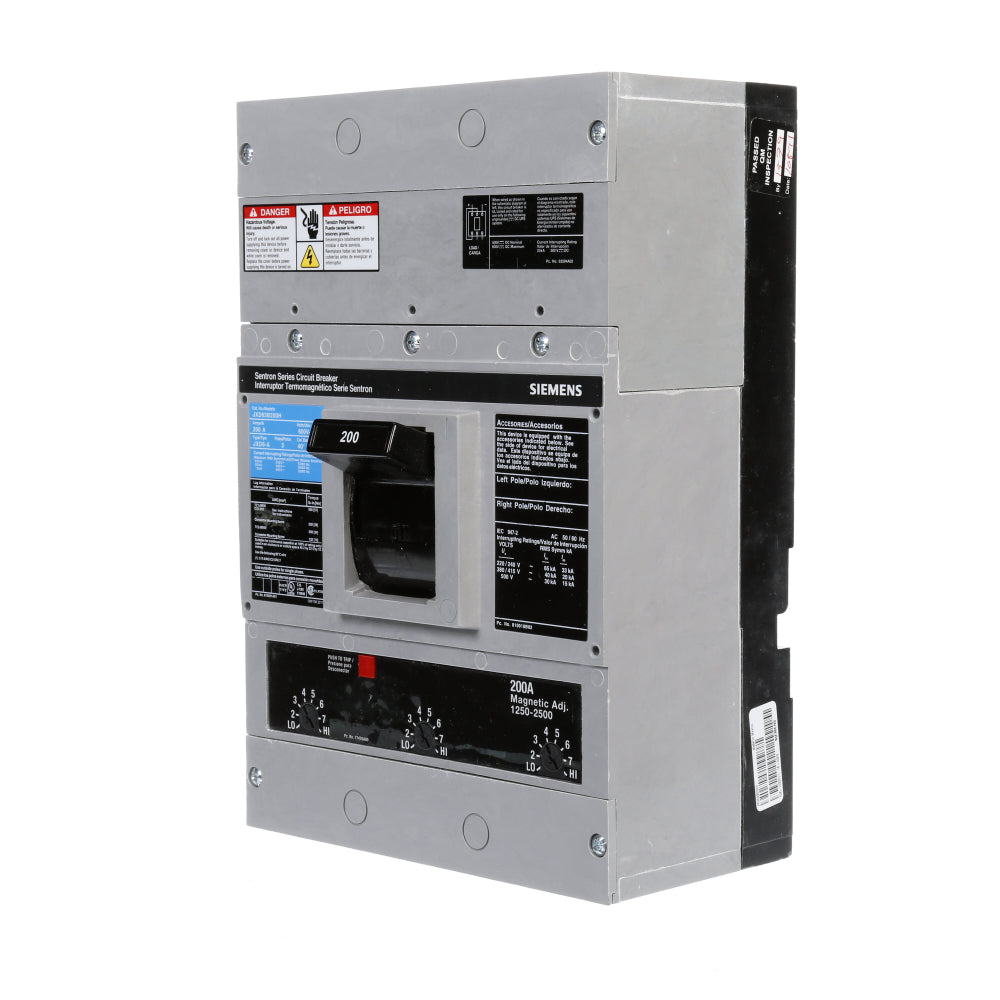

JXD63B200H is a Siemens 3 pole molded case circuit breaker rated for 200 amps and 600 volts, designed for reliable circuit protection.This Siemens JXD63B200H breaker features a JD frame with a thermal-magnetic trip unit, suitable for standard 40¡C operation. It offers a 35kA interrupting rating at 480V and 25kA at 600V, providing robust short-circuit protection. The breaker is bolt-on mounted and designed for low voltage applications.
- Amperage: 200A
- Voltage Rating: 600V
- Poles: 3
- Frame/Series: JD Frame
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 35kA at 480V, 25kA at 600V
- Mounting Type: Bolt-On
- Standard Operating Temperature: 40¡C
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: JXD63B200H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643229310
- GTIN : 00783643229310
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.694
- Weight : 15.201
- Standards : RoHS
- Certification : UL, IEC
