Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD23B225L

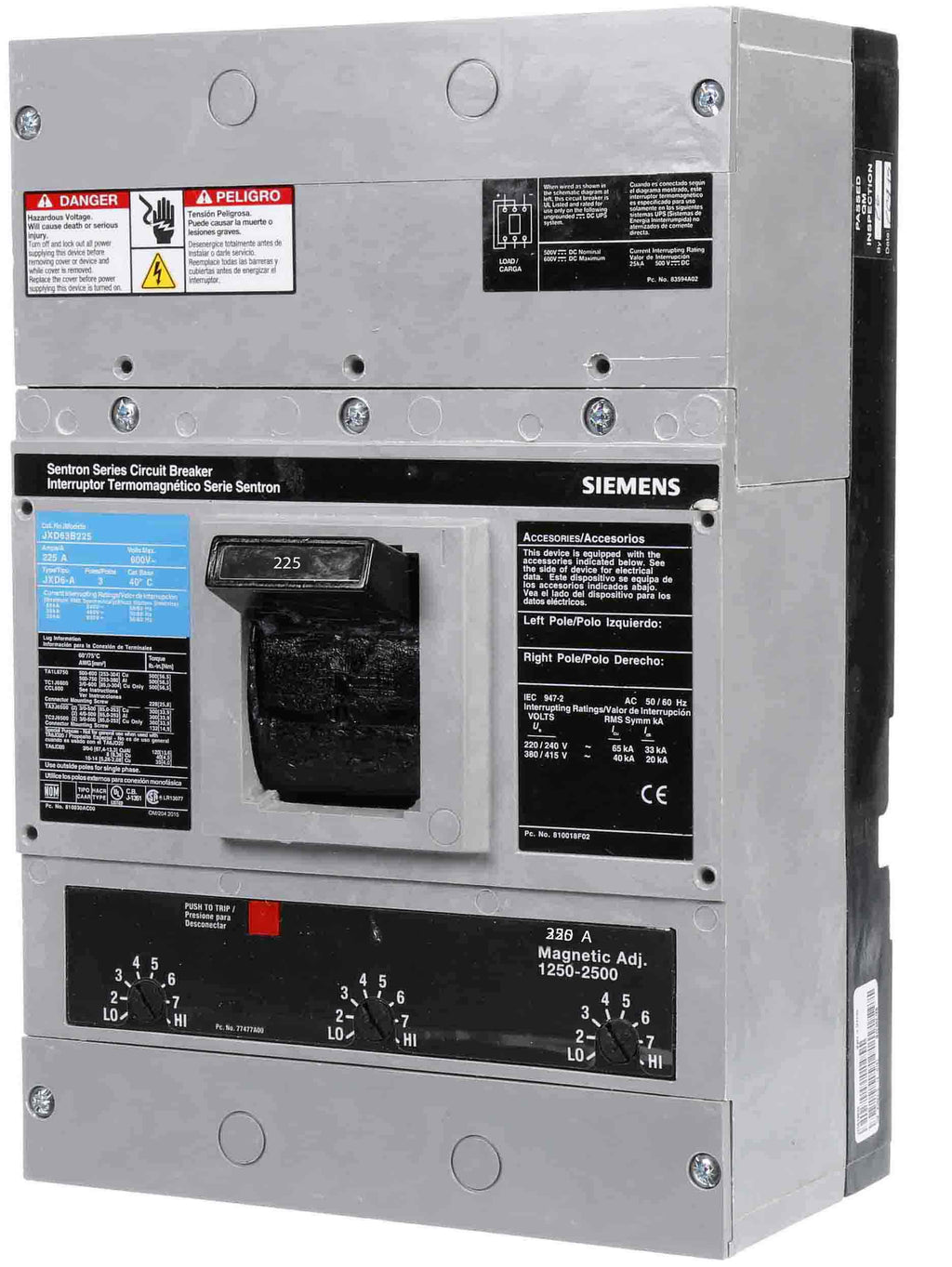

JXD23B225L is a Siemens Sentron Series molded case circuit breaker designed for low voltage power distribution applications with thermal/magnetic trip protection. This 3 pole breaker is rated for 240 VAC at 50/60 Hz and 250 VDC operation, delivering reliable performance in industrial and commercial electrical systems. The unit features a standard interrupting capacity of 65 kA at 240V and is assembled to standard specifications at 40 degrees Celsius with bolt-on mounting and a non-interchangeable trip unit.
- Part Number: JXD23B225L
- Manufacturer: Siemens
- Current Rating: 225 Amperes
- Voltage: 240 VAC / 250 VDC
- Poles: 3 Pole
- Frame: JD
- Interrupt Rating: 65 kA at 240V
- Trip Type: Thermal/Magnetic
- Mounting: Bolt-on
- Series: Sentron
- Temperature Rating: 40 degrees Celsius
Specifications
- Part Number: JXD23B225L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : JD Frame
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643009356
- GTIN : 00783643009356
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.697
- Weight : 19.048
- Standards : RoHS
- Certification : UL, IEC
