TC2J6500

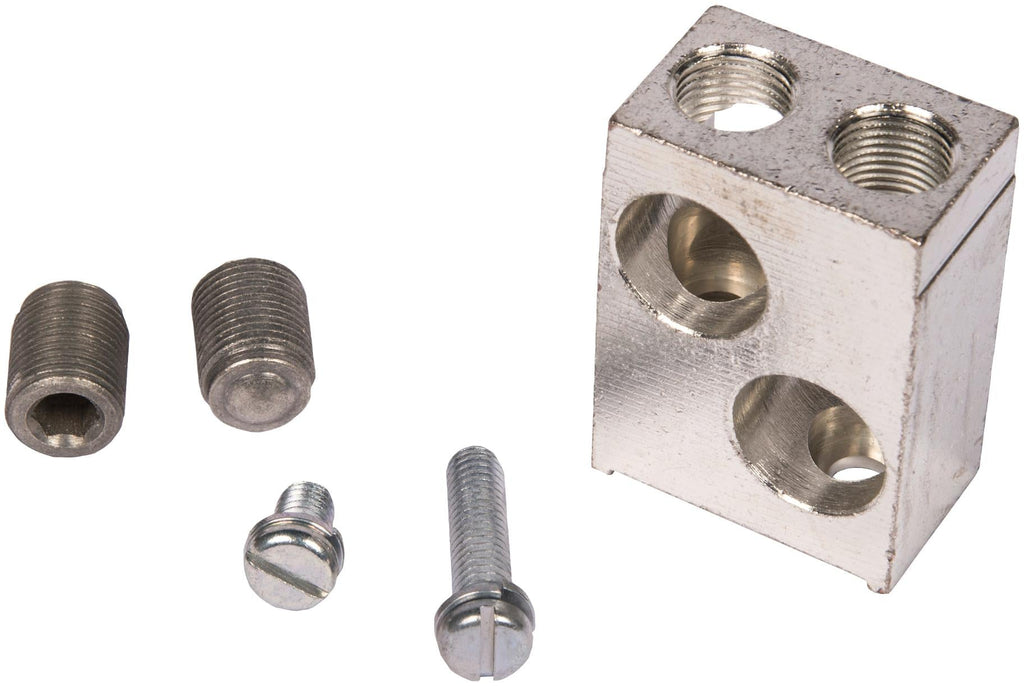

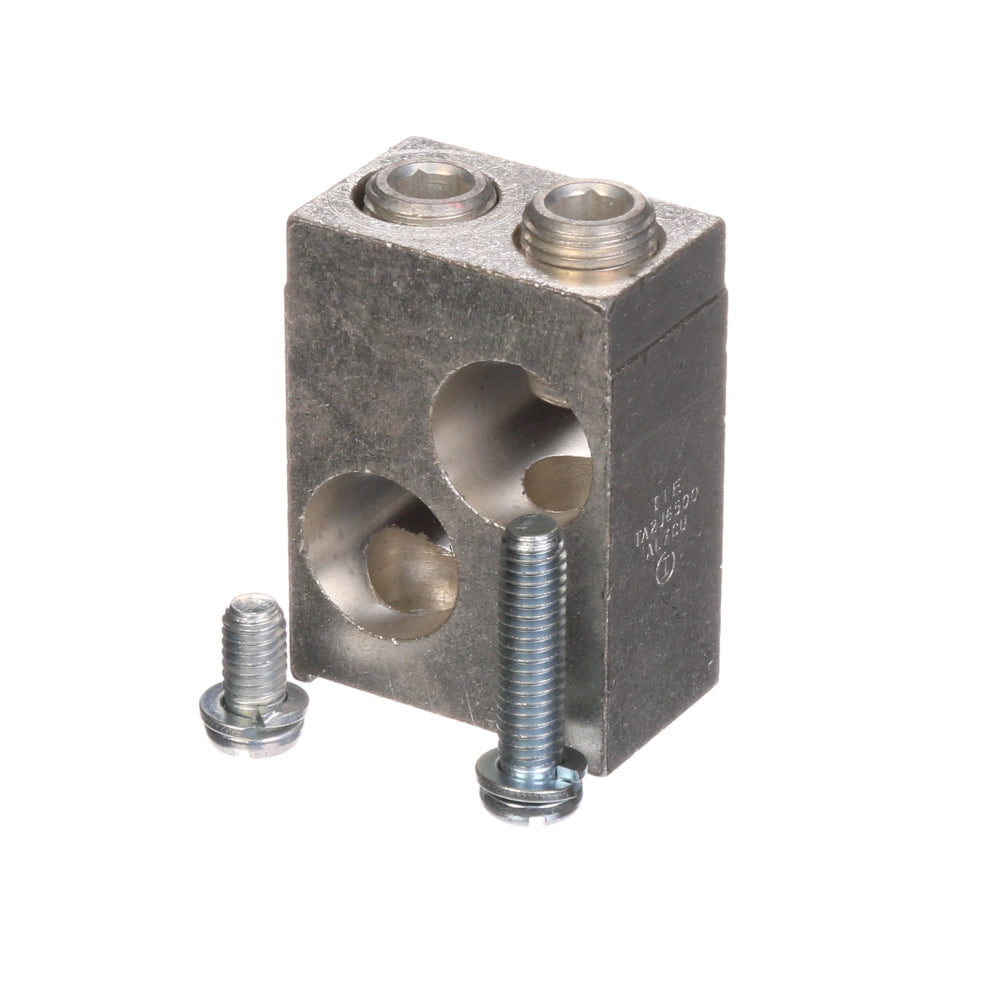

TC2J6500 is a Siemens copper body lug designed for 2/3-pole JD and LD frame circuit breakers with a current rating from 200 to 600 amps.This lug supports copper wire sizes from 3/0 AWG up to 500 kcmil and is suitable for line and load side connections in molded case circuit breakers.
- Manufacturer: Siemens
- Part Number: TC2J6500
- Application: For use with JD and LD frame circuit breakers
- Poles: 2 or 3 pole compatibility
- Current Rating: 200 to 600 Amps
- Wire Range: 3/0 AWG to 500 kcmil copper wire
- Lug Material: Copper
- Mounting Type: Lug terminal kit for circuit breakers
- Compatible Frames: JD, JXD, HJD, HHJD, SHJD, LD, LXD, HHLD, SCD, HLD, SHLD, CJD, CLD, SCJD, SCLD
- Quantity: 1 lug per catalog number
- Country of Origin: Mexico
Specifications
- Part Number: TC2J6500
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : Sentron Series
- Type : Sentron
- Amperage : 200-600
- Poles : 2/3
- MCM Size : 500
- Barrels : 2
- Metal Type : Copper
- Compatible Frames : JD, JXD, HJD, HHJD, SHJD, LD, LXD, HHLD, SCD, HLD, SHLD, CJD, CLD, SCJD, SCLD
Product Data
- UPC : 783643188396
- GTIN : 00783643188396
- Country of Origin : Mexico
- Weight : 0.959
- Standards : RoHS
- Wire Size : AWG 3/0 to 500KCmil, Cu
