JXD23B225 - Siemens 225A 240V 3-Pole Molded Case Circuit Breaker Bolt-On 65kA Interrupt

JXD23B225

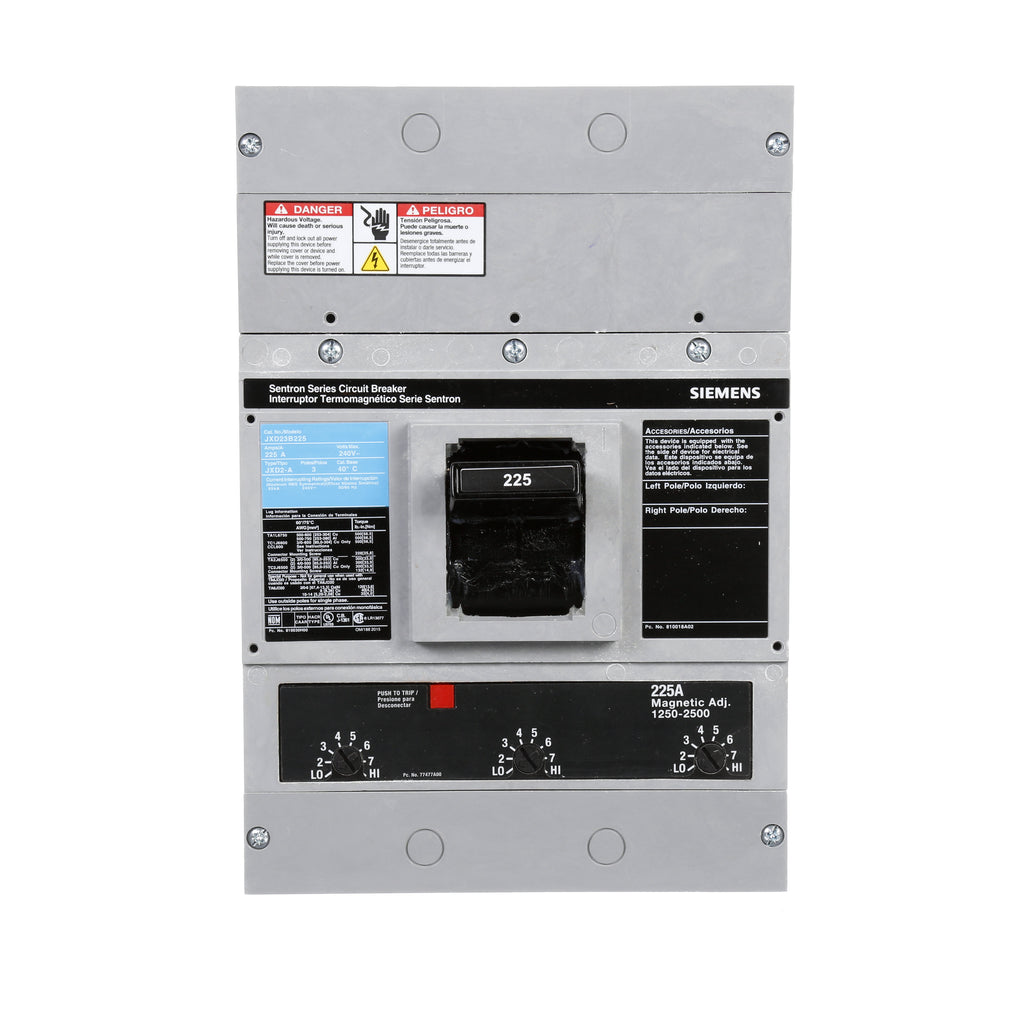

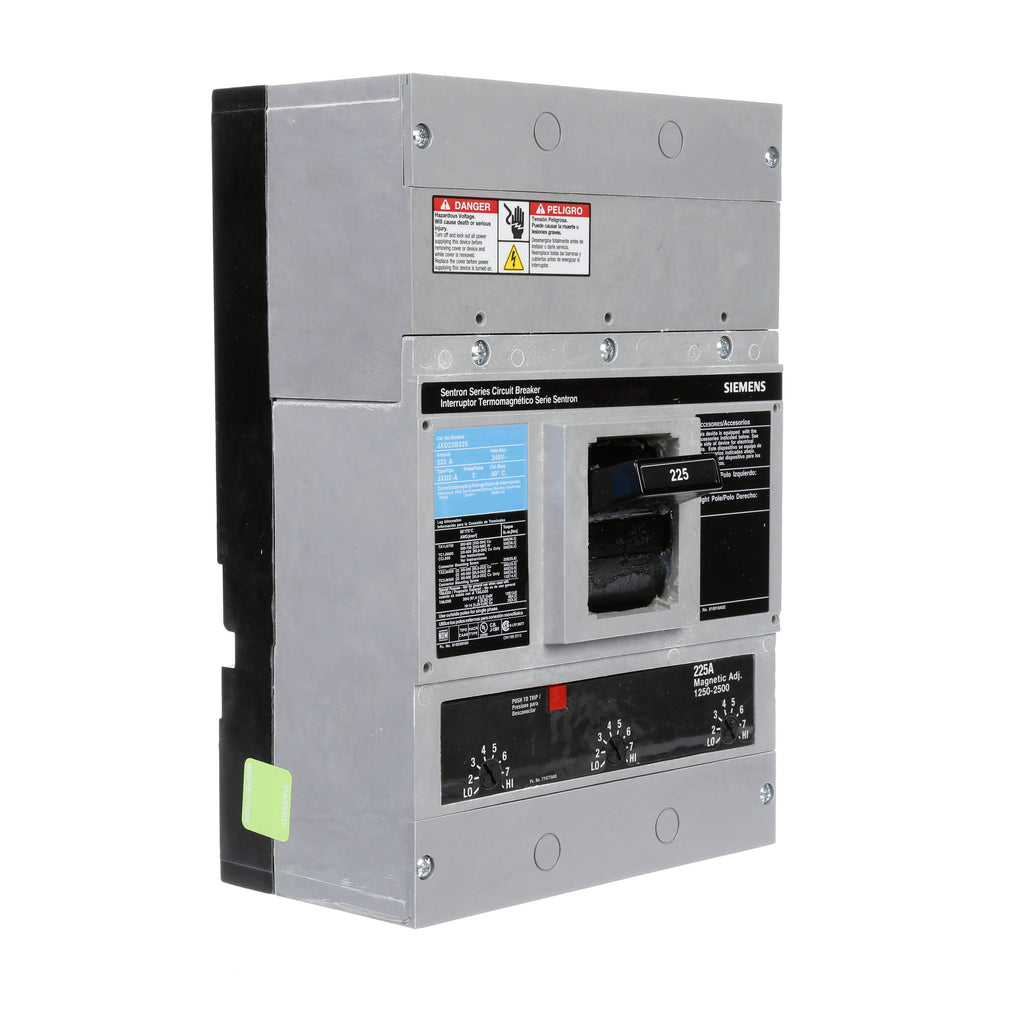

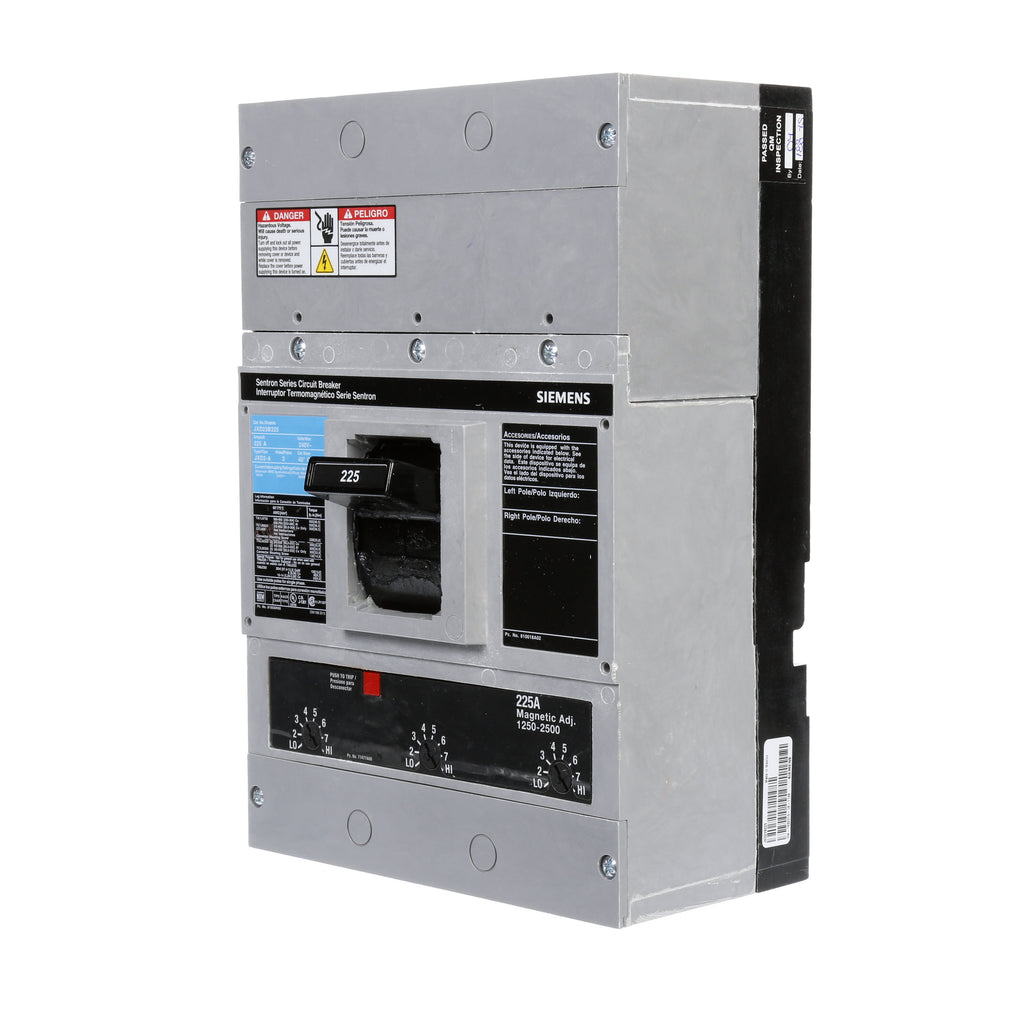

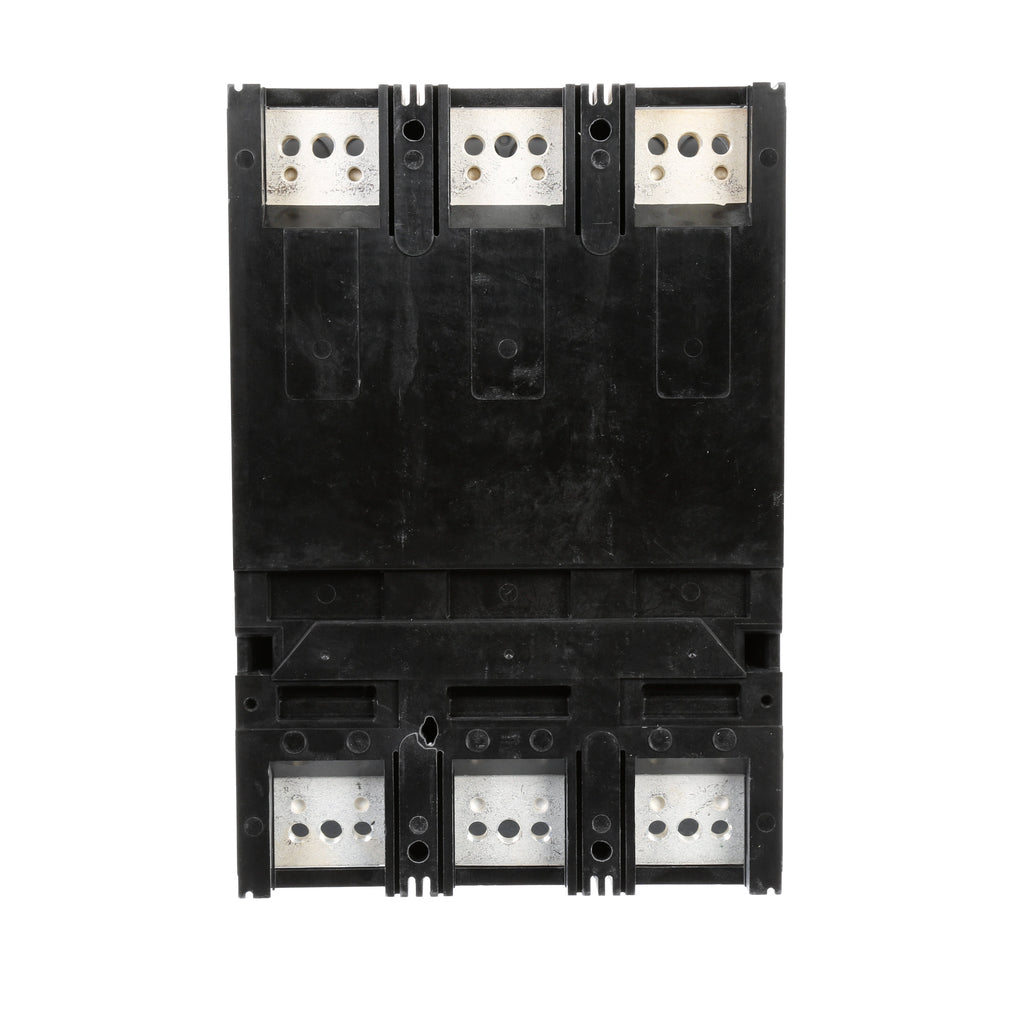

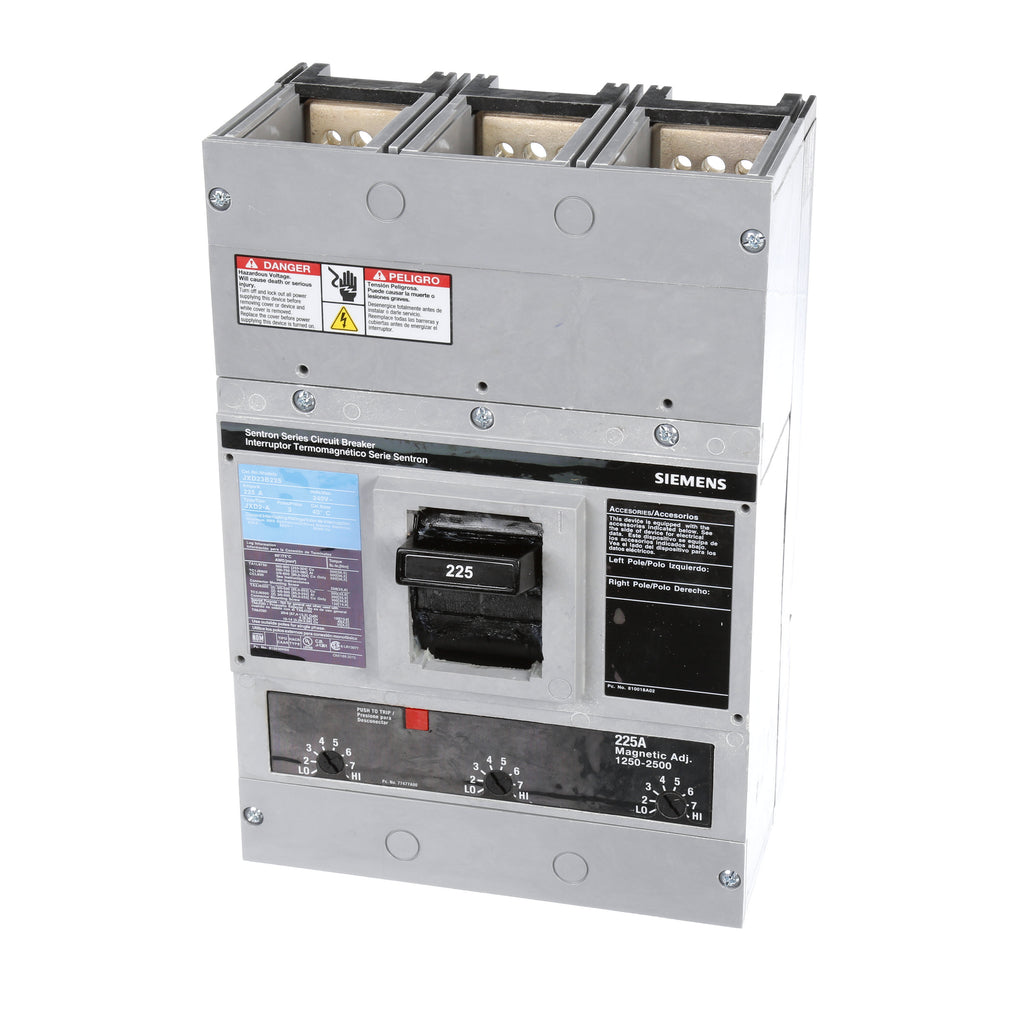

JXD23B225 is a Siemens 3-pole molded case circuit breaker with a 225 ampere rating and 240 volts AC voltage rating designed for bolt-on mounting.This Siemens Sentron Series JXD type circuit breaker features a thermal magnetic trip unit, a 65 kA interrupting rating at 240 VAC, and a non-interchangeable trip. It is engineered for reliable low voltage power distribution protection in industrial and commercial applications.

• Amperage: 225A
• Voltage: 240 VAC, 250 VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kA at 240 VAC
• Series/Frame: Sentron JXD
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Certifications: UL Listed
• Standard Interrupting Capacity
• Operating Temperature: 40¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included

Specifications

• Part Number: JXD23B225
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : JXD
• Voltage : 240
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/JD
• Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
• MCM Size : 500 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643212930
• GTIN : 00783643212930
• Country of Origin : Mexico
• Dimensions : 8.661 x 12.992 x 6.696
• Weight : 18.301
• Panel Type : SB Switchboards Without Lugs, Sentron Panelboards
• Standards : RoHS
• Certification : UL, IEC
