Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
JTD-007ID

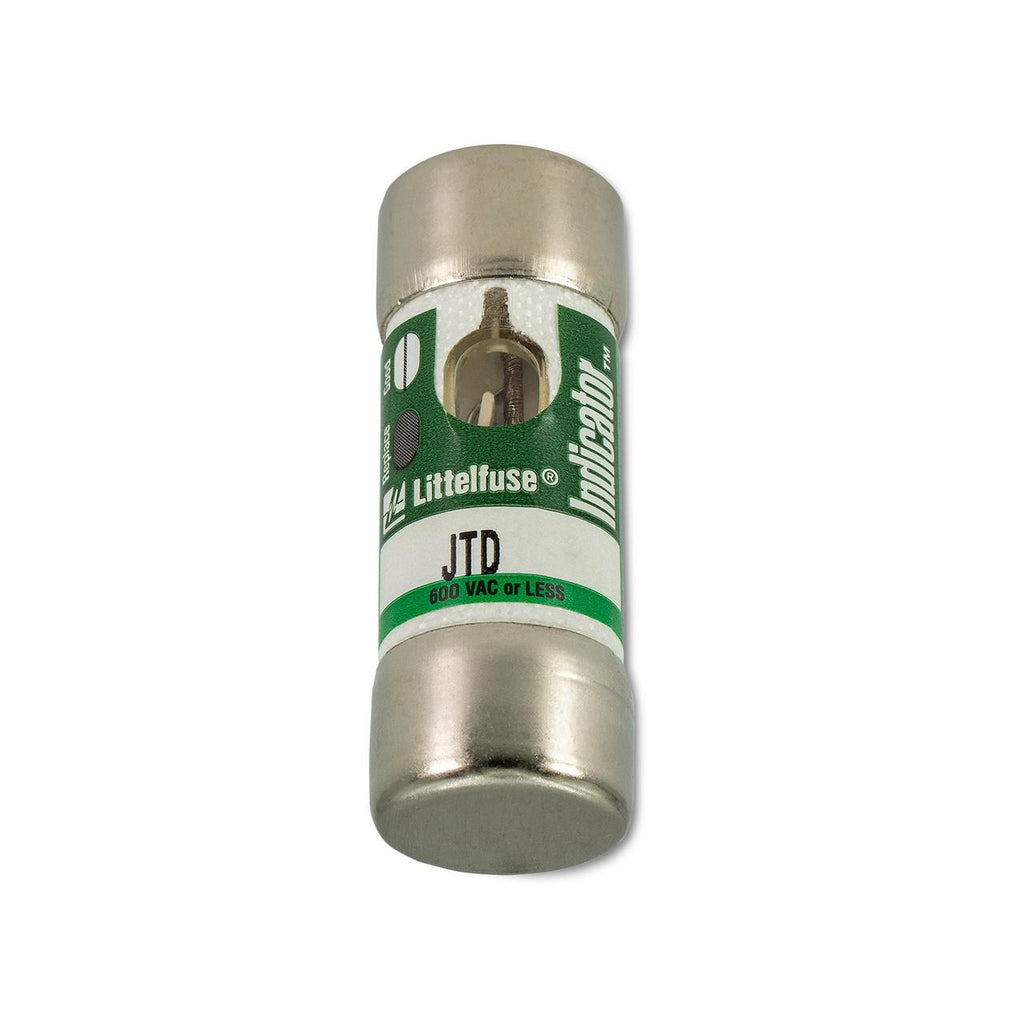

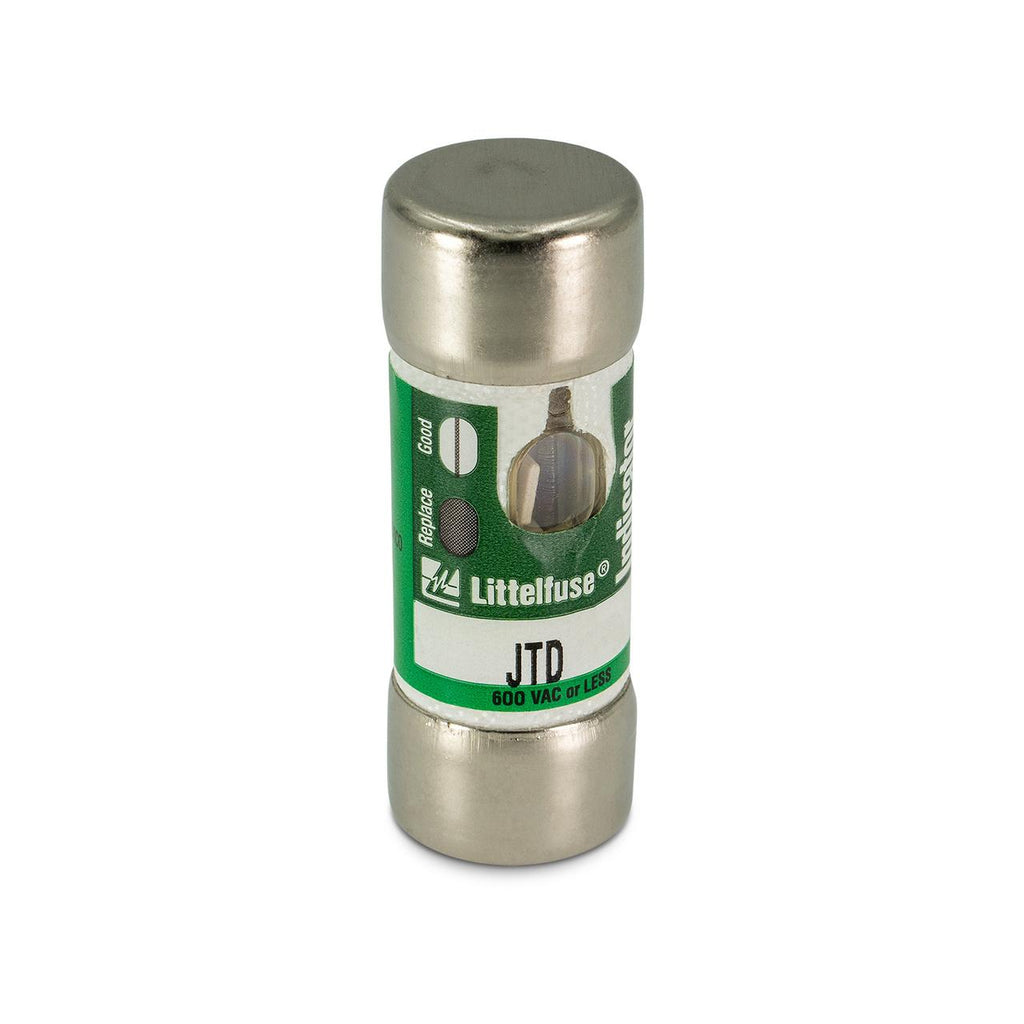

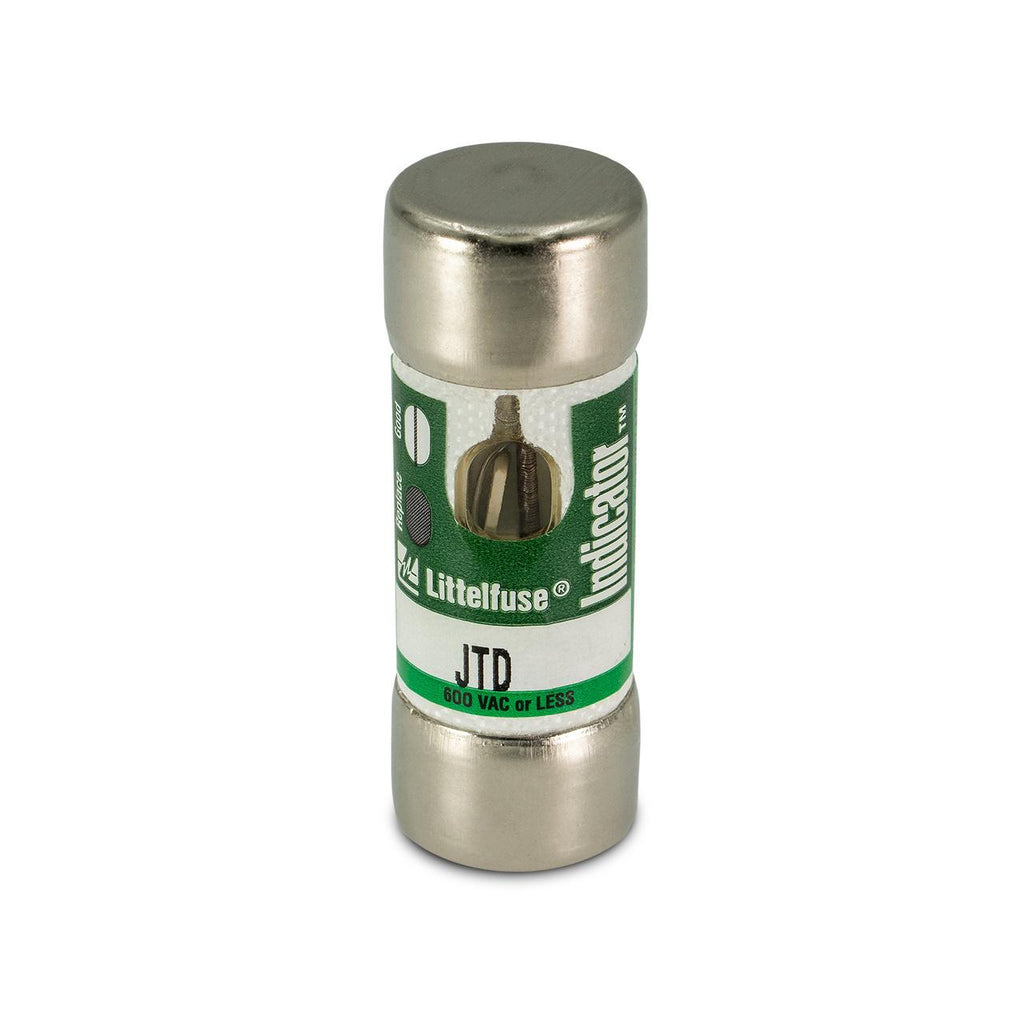

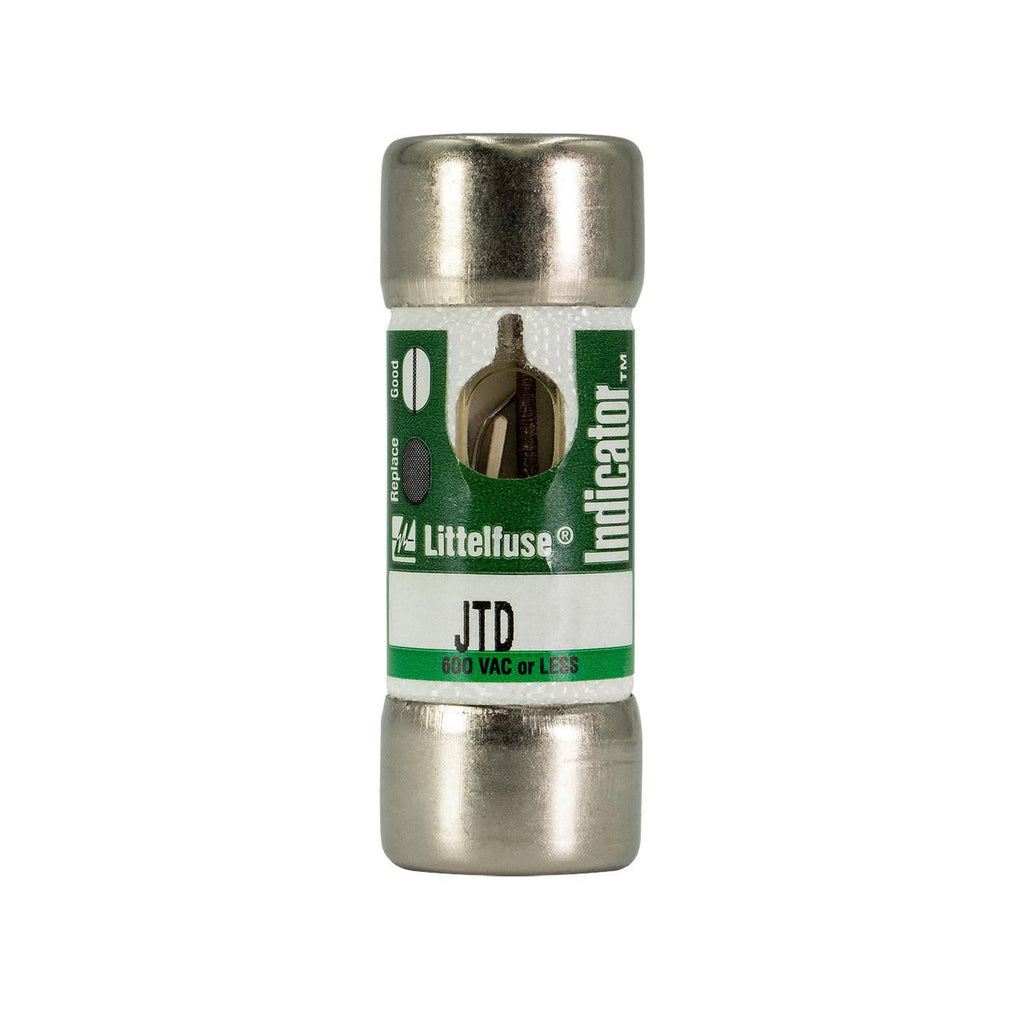

JTD-007ID is a Littelfuse Class J time delay fuse with visual indicator, designed for reliable circuit protection in demanding applications.
This cartridge-style fuse features a dual-element, time-delay design for superior inrush current tolerance and Type 2 "No Damage" protection. It is current limiting, with a high interrupting rating for both AC and DC systems, and is certified to UL and CSA standards for safety and compliance.
-
Key Specifications
- Amperage: 7A
- Voltage: 600VAC, 300VDC
- Poles: 1
- Mounting Type: Cartridge
- Interrupt Rating: 200,000A @ 600VAC, 20,000A @ 300VDC
- Series/Frame: JTD_ID
- Trip Unit: Time Delay (Dual Element)
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Physical Size: 13/16" x 2 1/4"
- Indicator: Visual blow indication
- Protection Type: IEC Type 2, Current Limiting
- Standards: UL 248-8, Class J
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JTD-007ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
Product Data
- UPC : 007945802582
- GTIN : 00079458025828
- Weight : 0.09 lb
