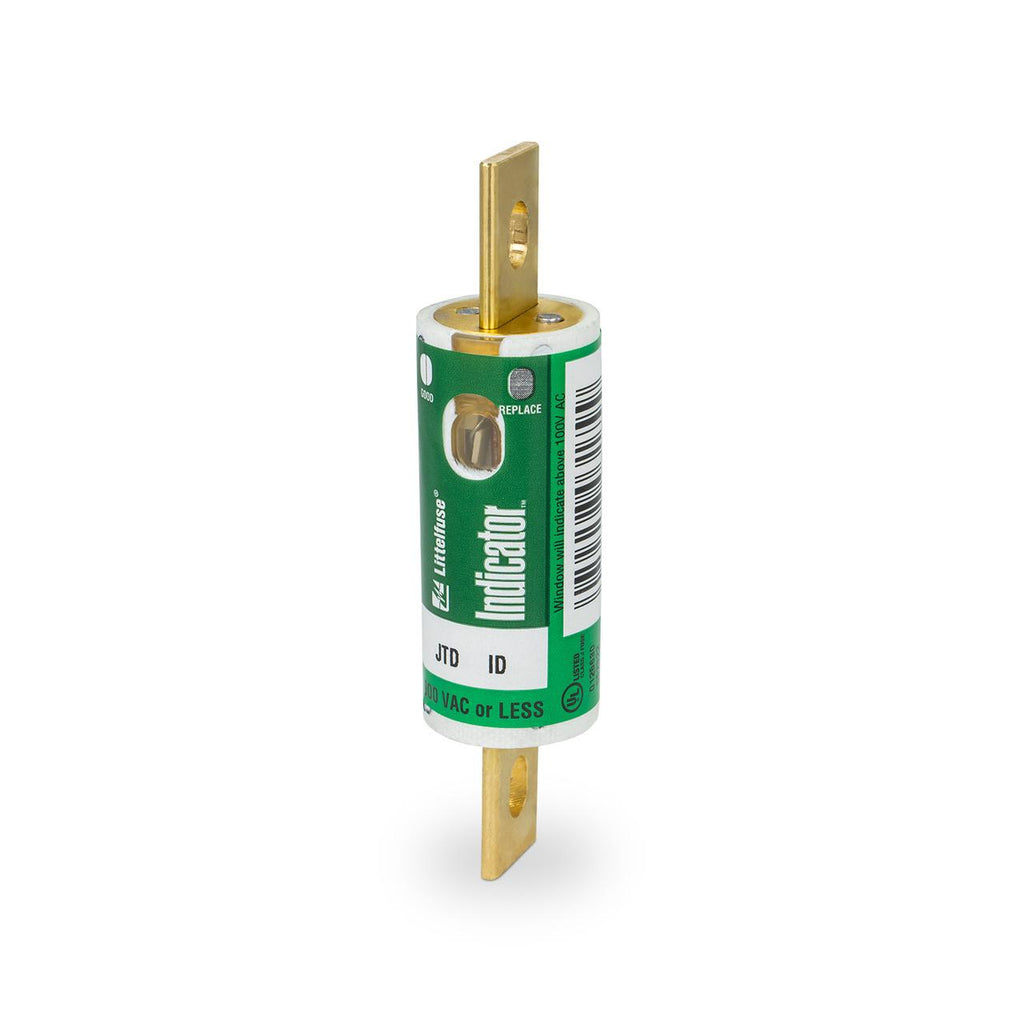

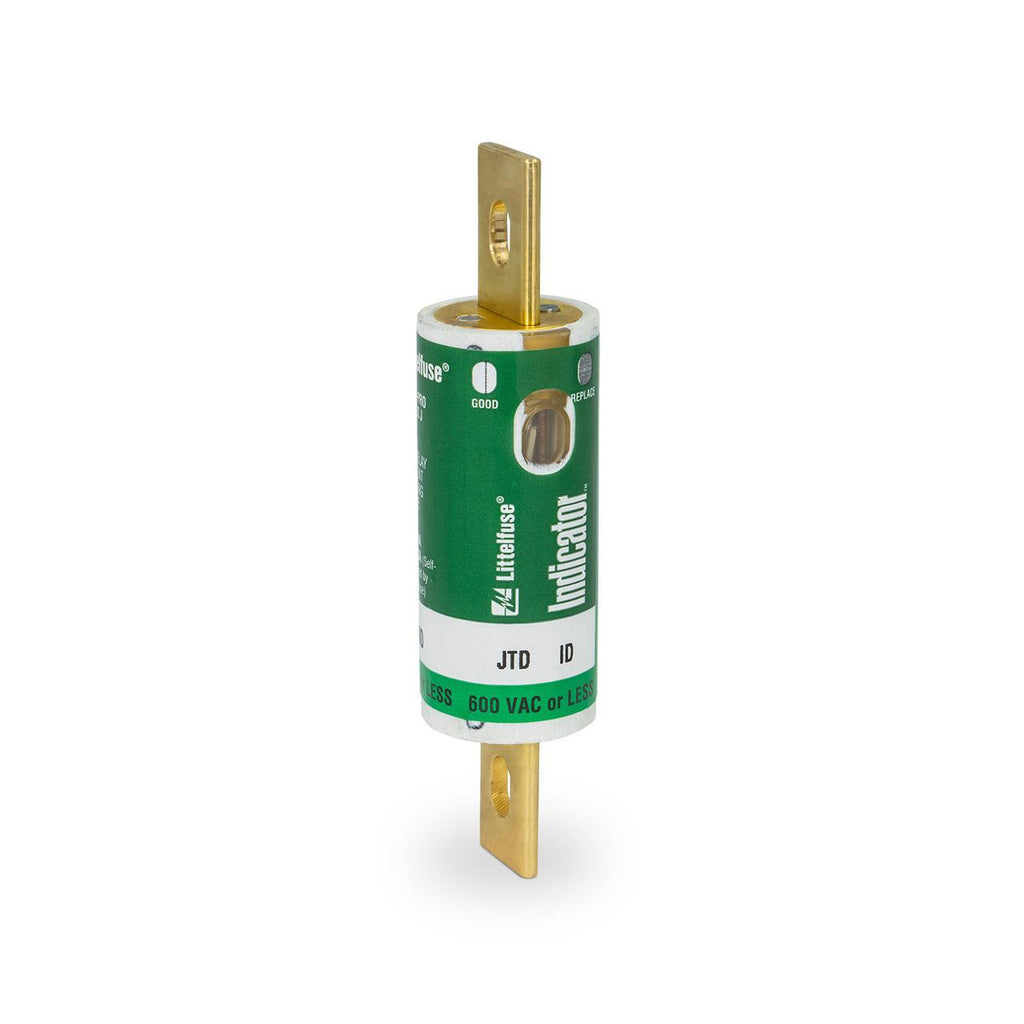

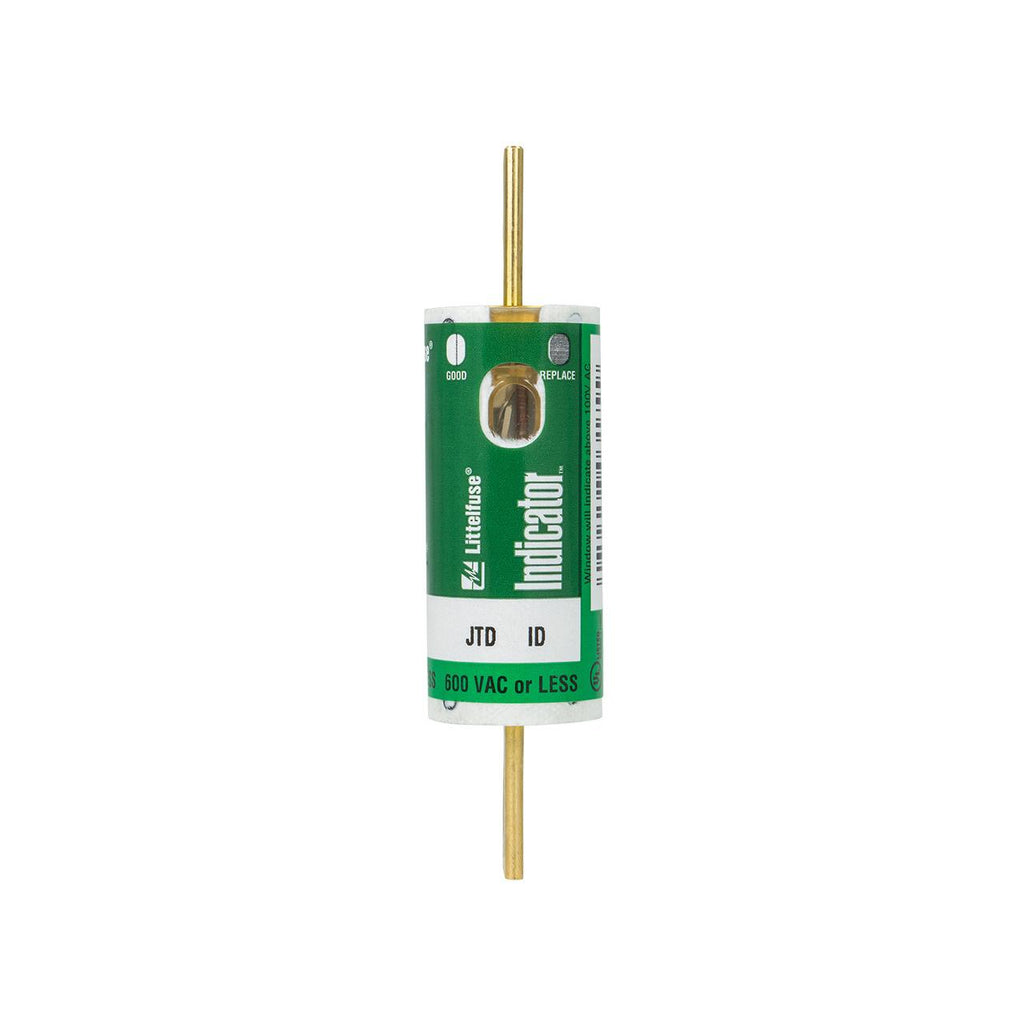

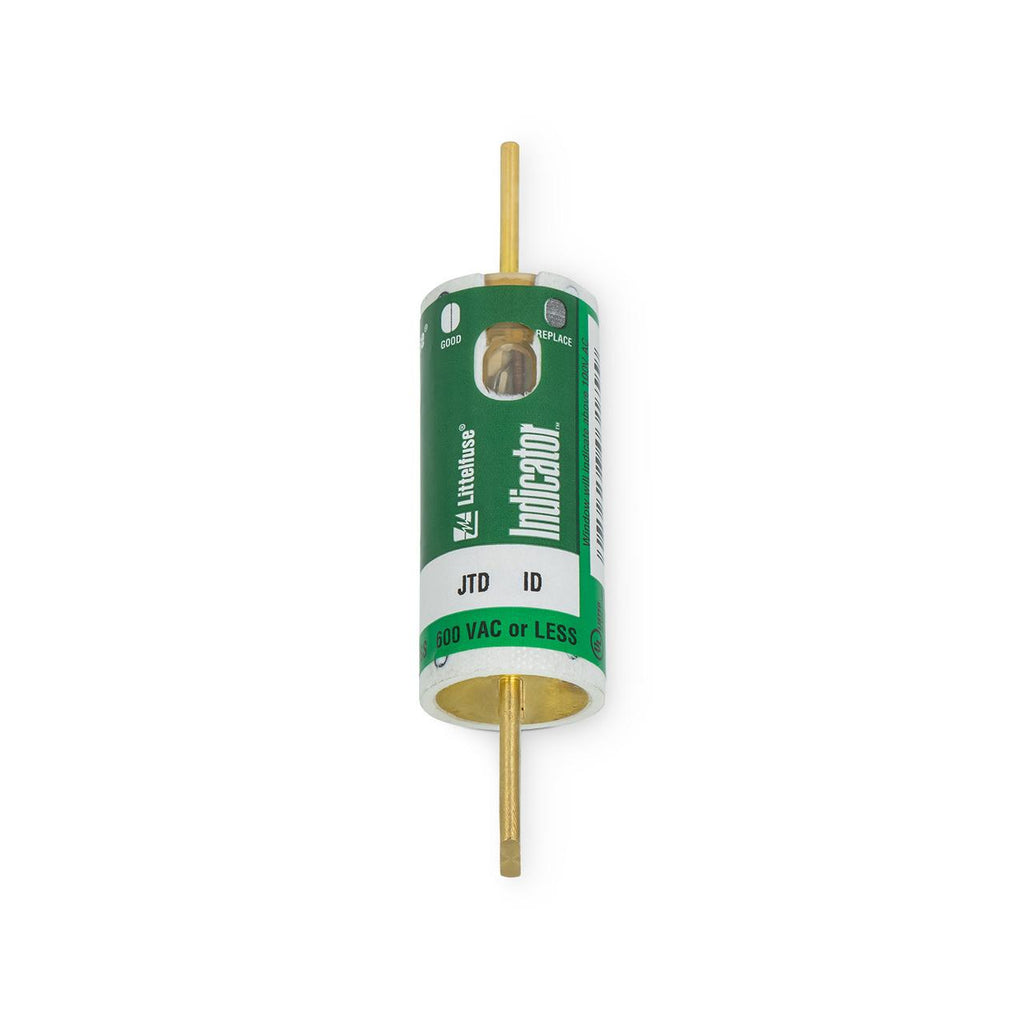

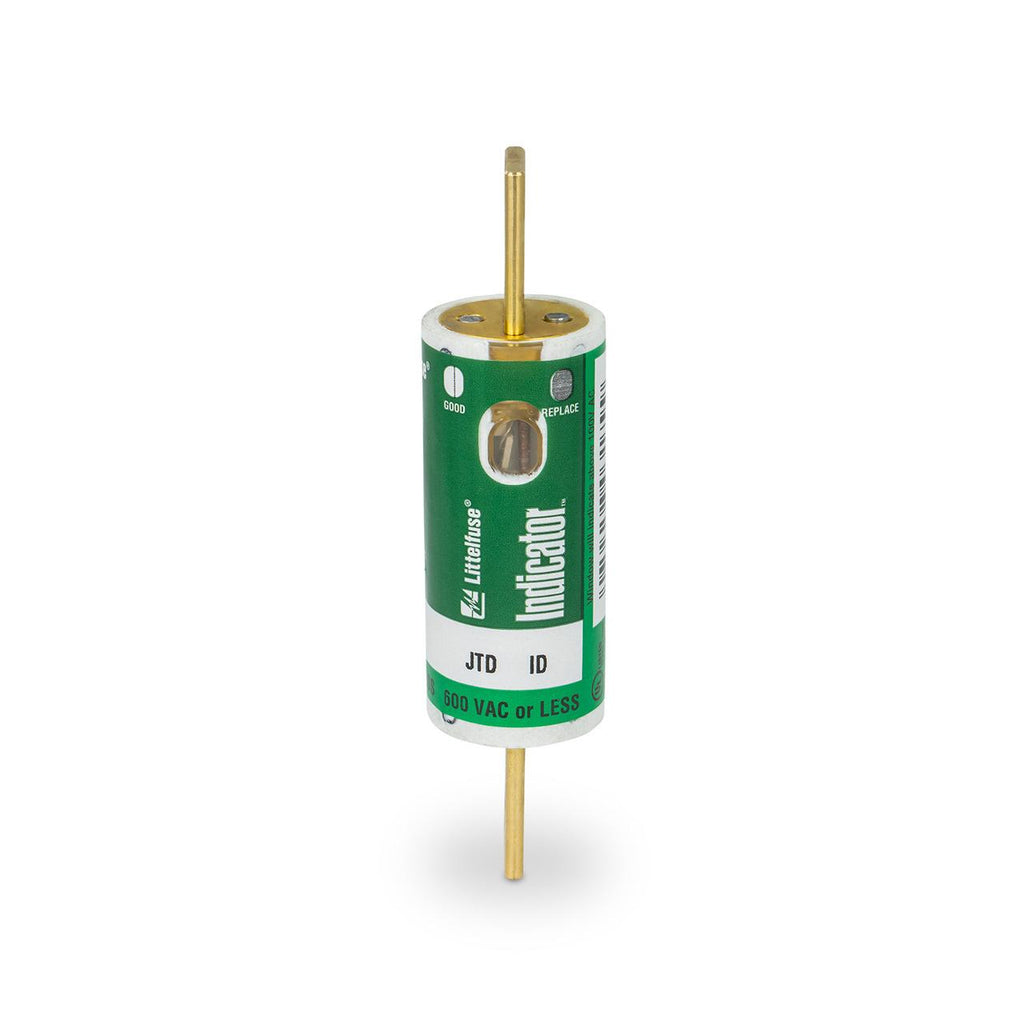

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage
- Rated current
- 80
- UPC
- 007945803177
- GTIN
- 00079458031775
- Weight
- 0.3
Product description & additional details
JTD-080ID
JTD-080ID is a Littelfuse Class J time delay fuse with visual indicator, designed for reliable circuit protection in demanding applications.
This cartridge-style fuse features a patented dual-element, time-delay design that minimizes nuisance openings and is ideal for circuits with high inrush currents. It offers current-limiting performance, a compact form factor, and a visible blown fuse indicator for enhanced safety and reduced downtime. The JTD-080ID is UL listed and CSA certified, ensuring compliance with industry standards.
-
Key Specifications
- Amperage: 80A
- Voltage: 600VAC, 300VDC
- Poles: Not applicable (fuse, not breaker)
- Mounting Type: Cartridge (blade terminal)
- Interrupt Rating: 200,000A AC, 20,000A DC
- Series/Frame: JTD_ID (Class J)
- Trip Unit: Time delay (slow blow), dual element
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Dimensions: 1 1/8" x 4 5/8"
- Material: Melamine body, nickel-plated bronze caps
- Features: Visual blown fuse indicator, current limiting, IEC Type 2 protection
- Standards: UL 248-8, Class J
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JTD-080ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Amperage : 80
Product Data
- UPC : 007945803177
- GTIN : 00079458031775
- Weight : 0.3
