Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage
- Series
- Powr-Gard
- Frame
- FLSR
- Rated current
- 150
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Connection
- Plug-In
- Class rating
- RK5
- Barrels
- 1
- Diameter
- 1.84 in
- UPC
- 007945817086
- GTIN
- 00079458170863
- Weight
- 1
Product description & additional details

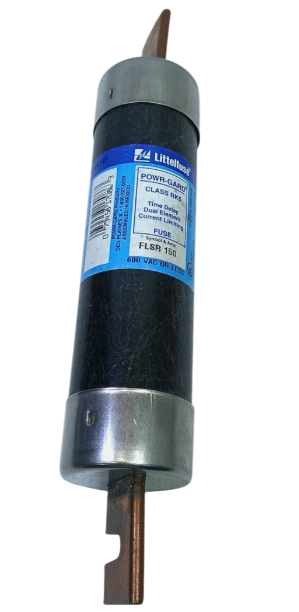

FLSR-150
FLSR-150 is a Littelfuse Class RK5 fuse rated for 150 amps and 600 volts AC, designed for general purpose circuit protection.This dual-element, time-delay fuse provides excellent short-circuit and overload protection with current-limiting capabilities. It is UL listed and CSA certified, suitable for motor circuits, switchboard mains, transformers, and service entrance switches. The fuse features a 200,000 AIC interrupting rating at 600VAC and 20,000 AIC at 300VDC, ensuring high safety and reliability.
- Key Specifications
- Amperage: 150 A
- Voltage Rating: 600 V AC, 300 V DC
- Fuse Class: RK5
- Type: Time Delay, Dual Element
- Interrupting Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 300VDC
- Physical Size: 1 27/32" x 9 5/8"
- Mounting Type: Knife-blade construction
- Certifications: UL Listed (File: E81895), CSA Certified (File: LR29862)
- Current Limiting: Yes
- Application: General purpose, motor circuits, switchboard mains
Specifications
- Part Number: FLSR-150
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : FLSR
- Voltage : 600
- Amperage : 150
- AIC rating : 200kA@600V
- Connection : Plug-In
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 007945817086
- GTIN : 00079458170863
- Weight : 1
