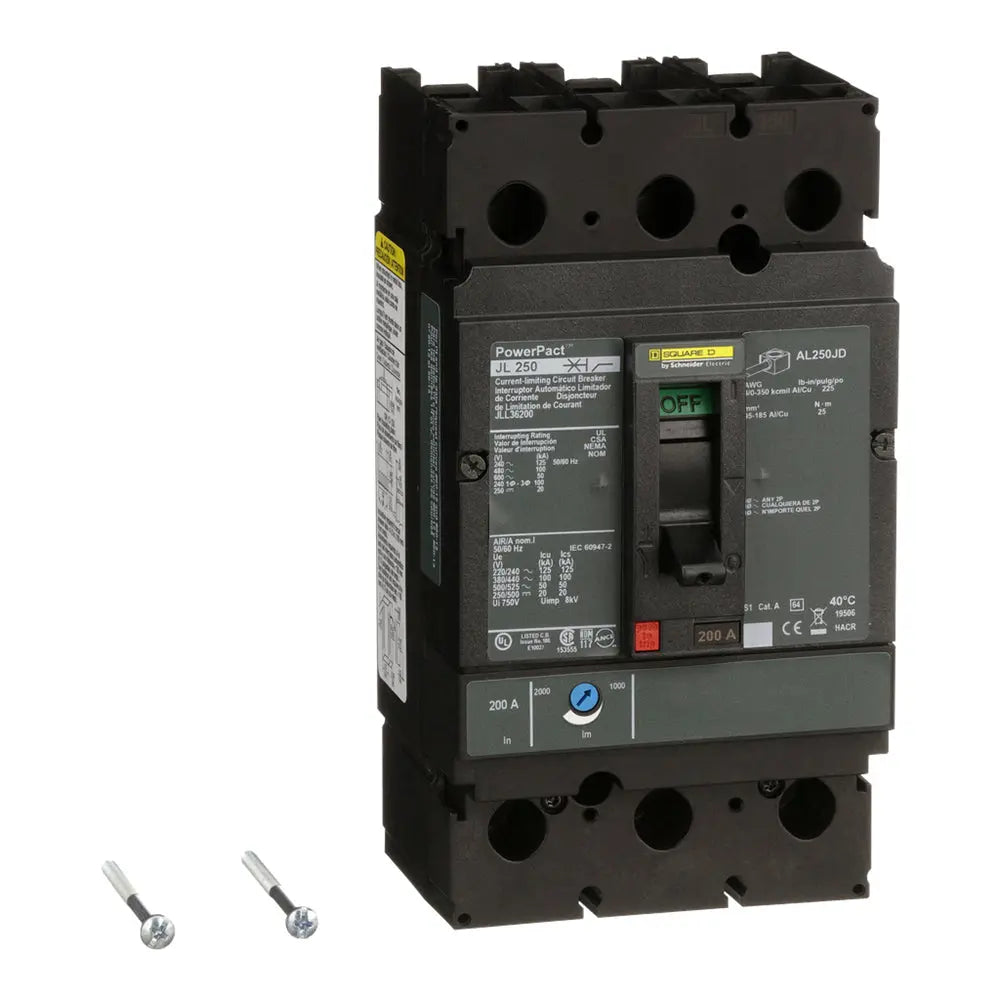

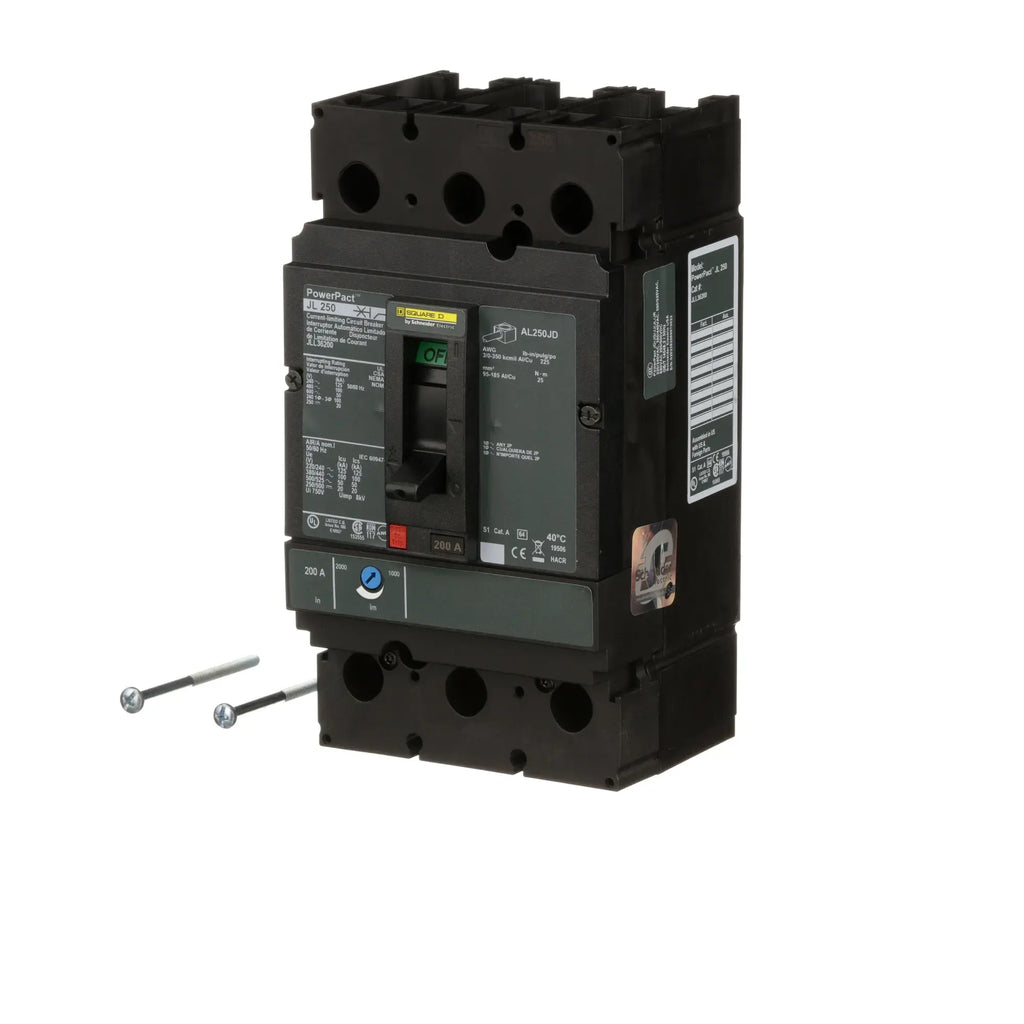

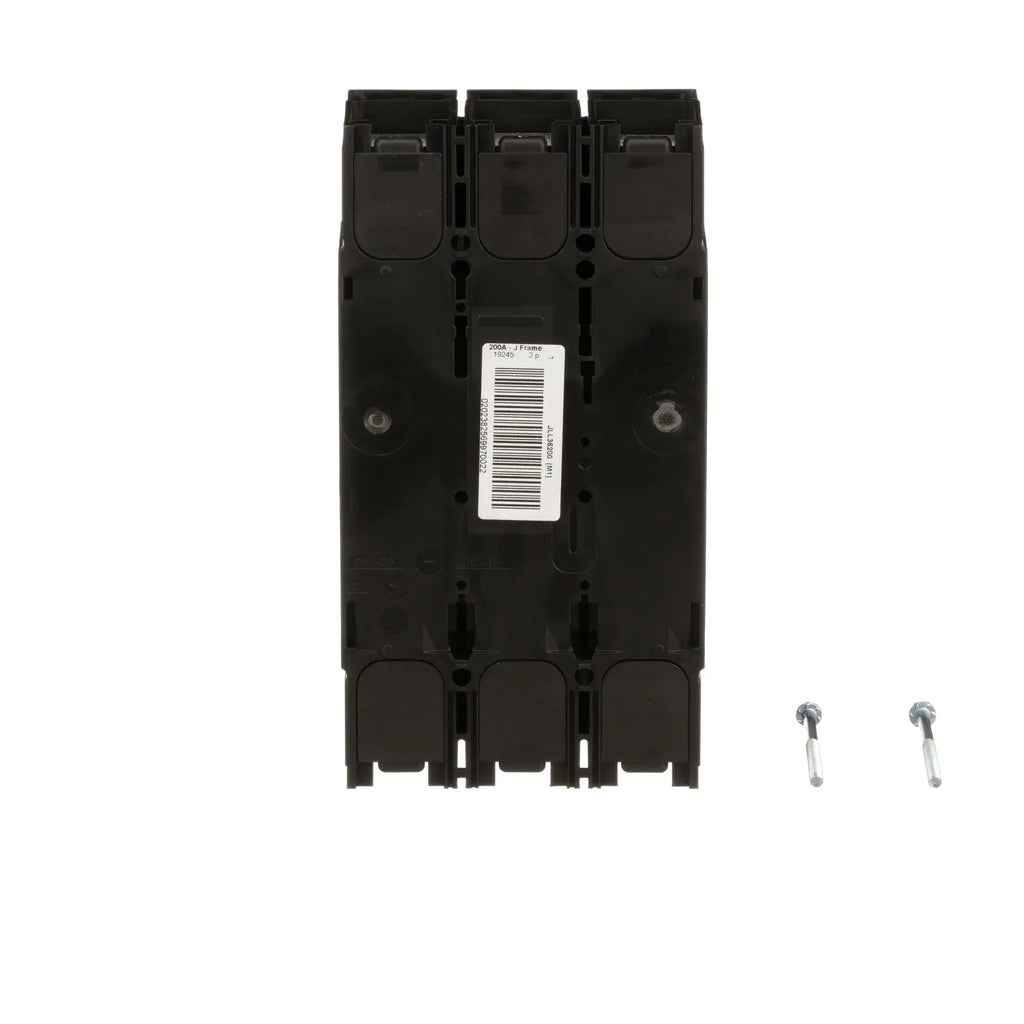

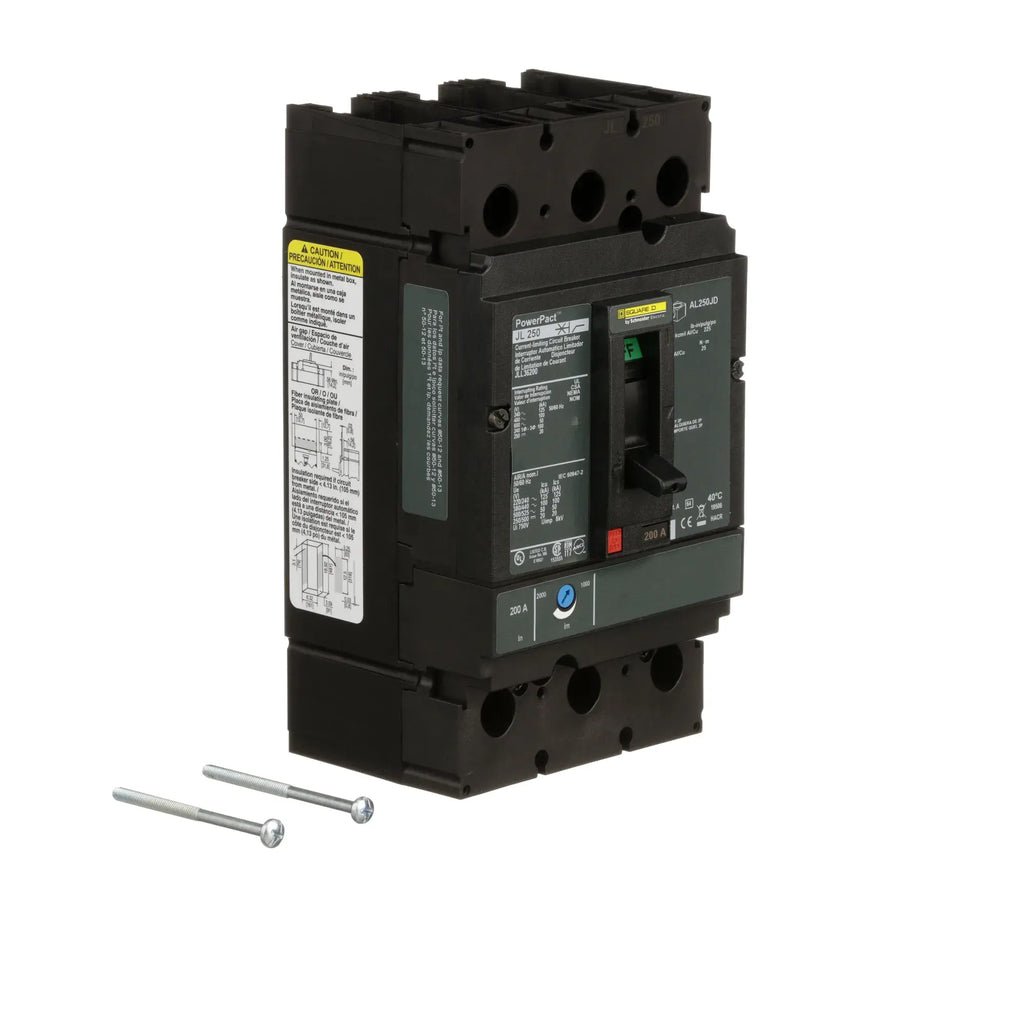

JLL36200 - Square D Powerpact J-Frame 3 Pole 200A 600V Molded Case Circuit Breaker Thermal Magnetic

JLL36200

JLL36200 is a Square D Powerpact J-Frame 3 pole 200A 600V molded case circuit breaker with thermal magnetic trip technology, designed for reliable overload and short-circuit protection in commercial and industrial applications. This circuit breaker features a J-Frame design, 3 pole configuration, 200A current rating, and 600V maximum voltage. It is UL 489 listed, suitable for unit mount applications, and provides a 50kA interrupt rating at 600VAC. The breaker includes line and load side lug terminals, is current limiting, and supports reverse fed installations. The thermal magnetic trip unit offers both long-time and instantaneous protection, ensuring safe and efficient operation.

• Part Number: JLL36200
• Manufacturer: Square D
• Series/Frame: Powerpact J-Frame
• Poles: 3
• Amperage: 200A
• Voltage: 600VAC
• Interrupt Rating: 50kA @ 600VAC
• Mounting Type: Unit Mount
• Connection Type: Line/Load Lug
• Trip Unit: Thermal Magnetic
• Protection: Overload and Short-Circuit
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLL36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLL
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901883845
• GTIN : 00785901883845
• Country of Origin : Mexico

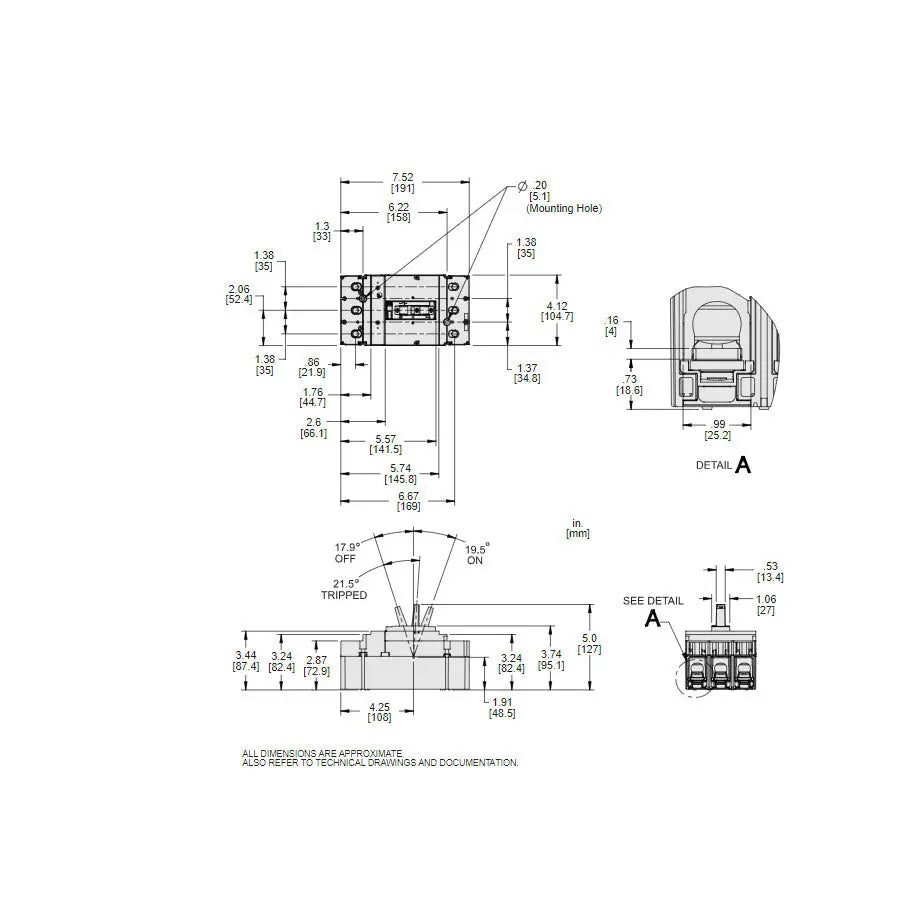

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.905
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
