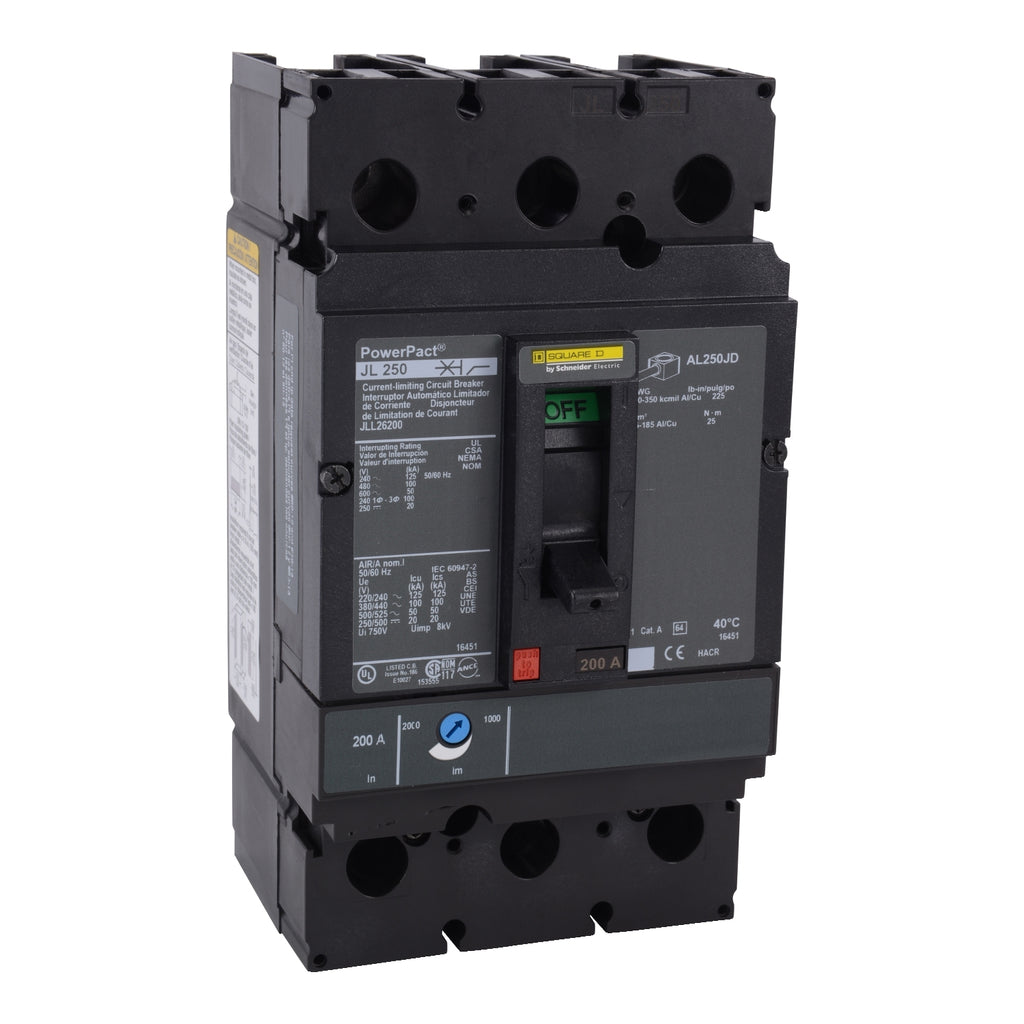

JLL26200 - Square D 200A 600VAC 2 Pole PowerPacT J Thermal Magnetic Circuit Breaker

JLL26200

JLL26200 is a 200 amp, 2 pole thermal magnetic molded case circuit breaker from Square D's PowerPacT J series designed for 600VAC applications.This circuit breaker features a 100kA interrupting rating at 480V, feed-thru connection type, and long-time and instantaneous trip functions for reliable overcurrent protection.

• Amperage: 200A
• Voltage Rating: 600VAC
• Poles: 2
• Series/Frame: PowerPacT J
• Interrupt Rating: 100kA at 480V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Mounting Type: Unit Mount
• Connection Type: Feed-Thru with Line and Load Side Lugs
• Wire Size: AWG 3/0 to 350 kcmil Aluminum/Copper
• Approvals: UL, CSA, CE, NEMA, NOM, IEC
• Dimensions: Approx. 7.5 in H x 4.09 in W x 3.4 in D
• Temperature Rating: -25 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLL26200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLL
• Voltage : 600
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590188380
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.699
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
